19
Installation
Install Collector Bags
1. Raise the collector hood and slide the collector
bags (A, Figure 29) onto the frame rails (B).
NOTE: The collector bags are constructed with three
mesh panels and one solid panel. Install the bag with
the solid panel towards the front of the machine.
2. Lower the hood and push the lock pin (B, Figure
30) through the hood lock plate (A).

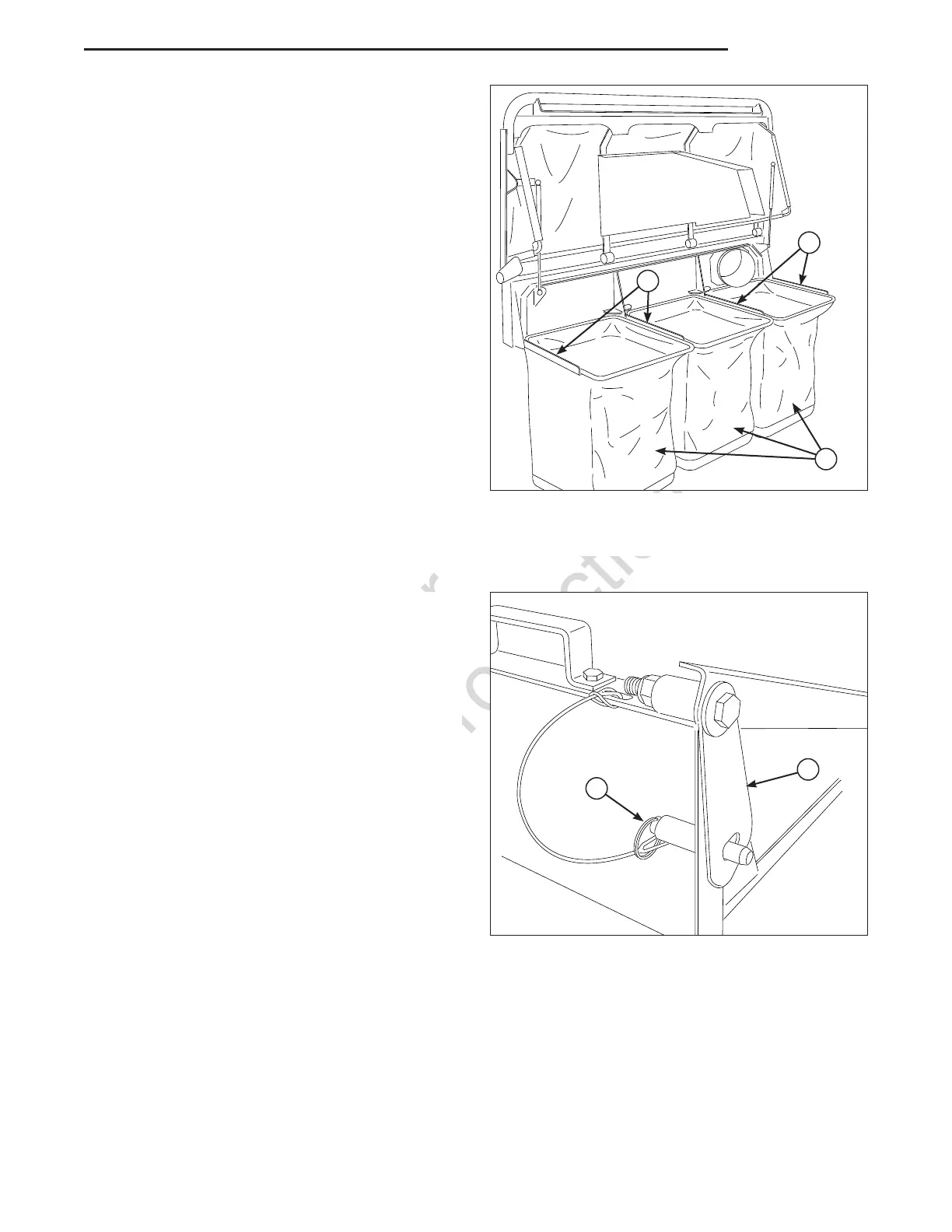

Figure 29. Install the Collector Bags
A. Collector Bag
B. Frame Rails
A
B
B
Figure 30. Lock Hood
A. Hood Lock Plate
B. Lock Pin
B
A
