Ferris FAST-Vac - Install the Weight Mount and Counter Weights

Not for
Reproduction
21
Installation

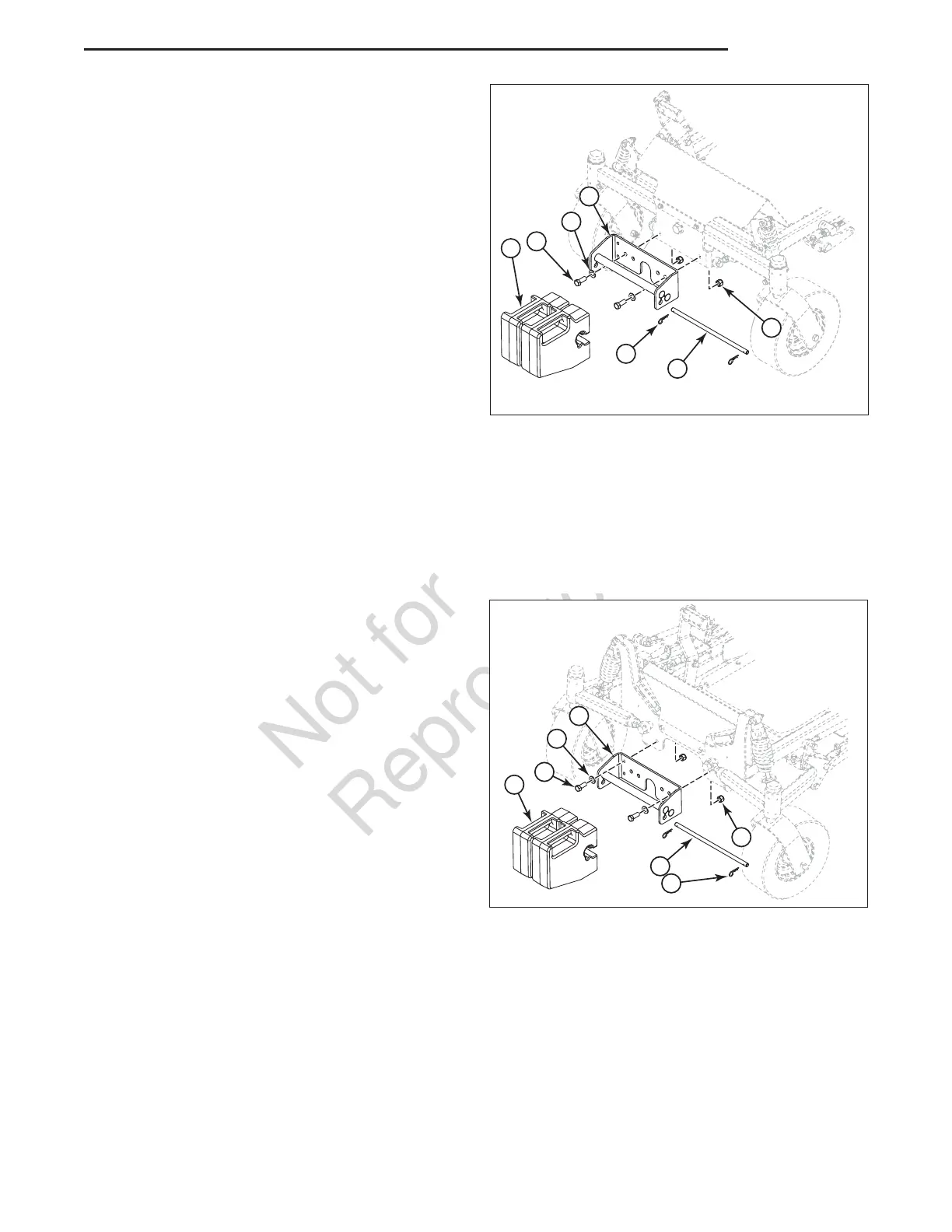

Figure 32. Install Weight Carrier (Units w/ 1/2”
Holes)
A. Weight Carrier
B. 1/2-20 x 1-1/4” Bolt
C. 1/2” SAE Washer
D. 1/2-20 Nylon Lock Nut
E. Weight
F. Retaining Pin
G. Hairpin Clip
A
C
B
E
D
G
F
A
C
B
D
E
G
F
Install the Weight Mount and Counter
Weights
Weight Mount Installation (Units with 1/2” Holes)
1. Install the weight carrier (A, Figure 32) onto the
front of the unit and secure with two (2) bolts (B),
washers (C) and nuts (D).
2. Install the counter weights (E) in the weight carrier
and secure with the retaining pin (F) and hairpin
clips (G).
Weight Mount Installation (Units with 3/8” Holes)
1. Install the weight carrier (A, Figure 33) onto the
front of the unit and secure with two (2) bolts (B),
washers (C) and nuts (D).
2. Install the counter weights (E) in the weight carrier
and secure with the retaining pin (F) and hairpin
clips (G).
Figure 33. Install Weight Carrier (Units w/ 3/8”
Holes)
A. Weight Carrier
B. 3/8-16 x 1-1/4” Bolt
C. 3/8” SAE Washer
D. 3/8-16 Nylock Flange Nut
E. Weight
F. Retaining Pin
G. Hairpin Clip
