Not all greases are compatible. Red grease (p/n 5022285) is
recommended, automotive-type, high-temperature, lithium
grease may be used when this is not available.
Oil Application Locations

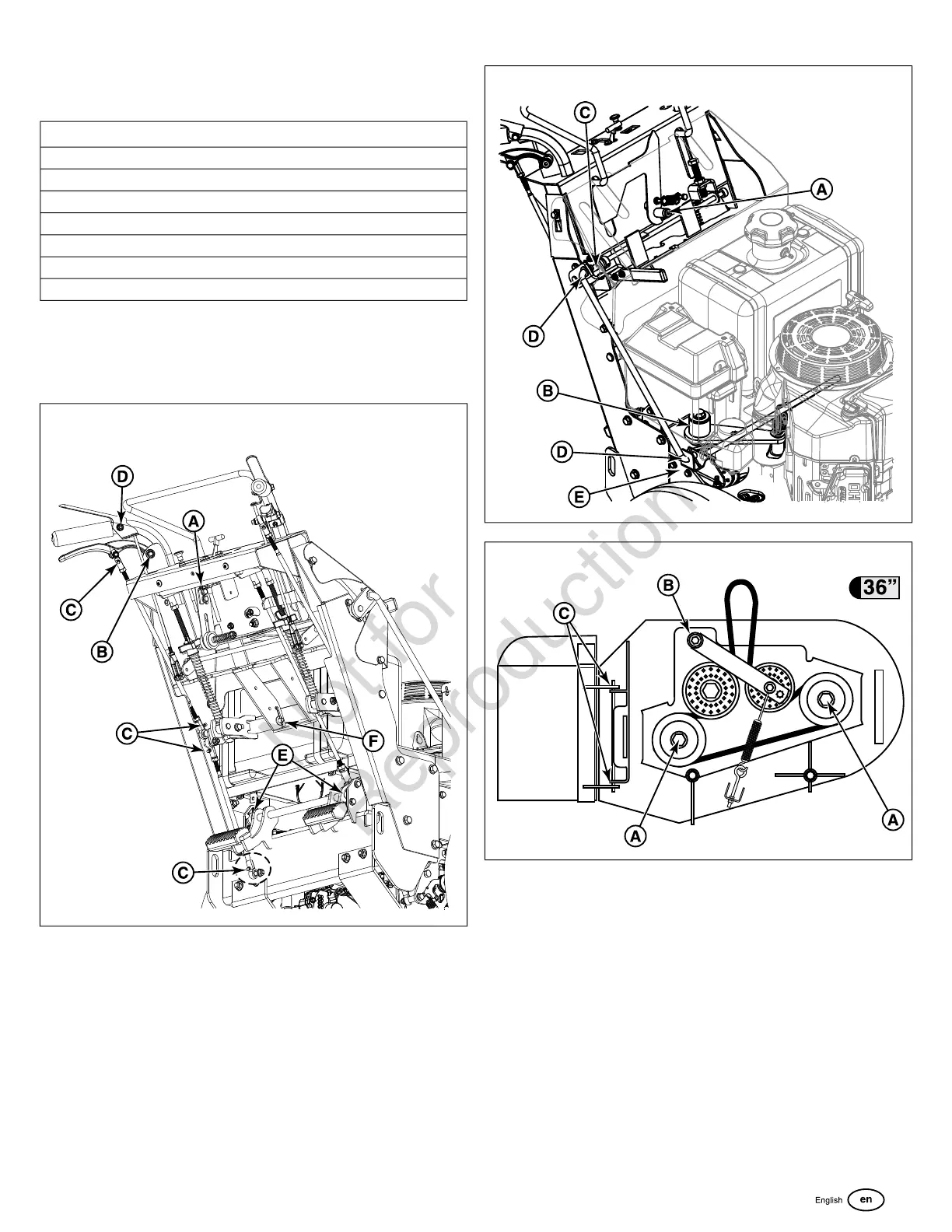

Operator Presence Flap Pivots (D, Figure 13)
Neutral Return Pedal Pivots (E)
Control Rod Pivots (F)
Parking Brake Handle Pivot (C, Figure 14)
Parking Brake Rod Pivots Points (D)
Lower Parking Brake Shaft Pivots (E)
Discharge Chute Rod Hinge (C, Figures 15)
Generally, all moving metal parts should be oiled where contact
is made with other parts. Keep oil and grease off belt and
pulleys. Remember to wipe fittings and surfaces clean both
before and after lubrication.
13
14
15
Lubricating the Front Casters
Interval: Annually
1. Remove the 1/4-28 bolt (B, Figure 16) screwed into the front
caster and install a 1/4-28 grease fitting.
