Routing

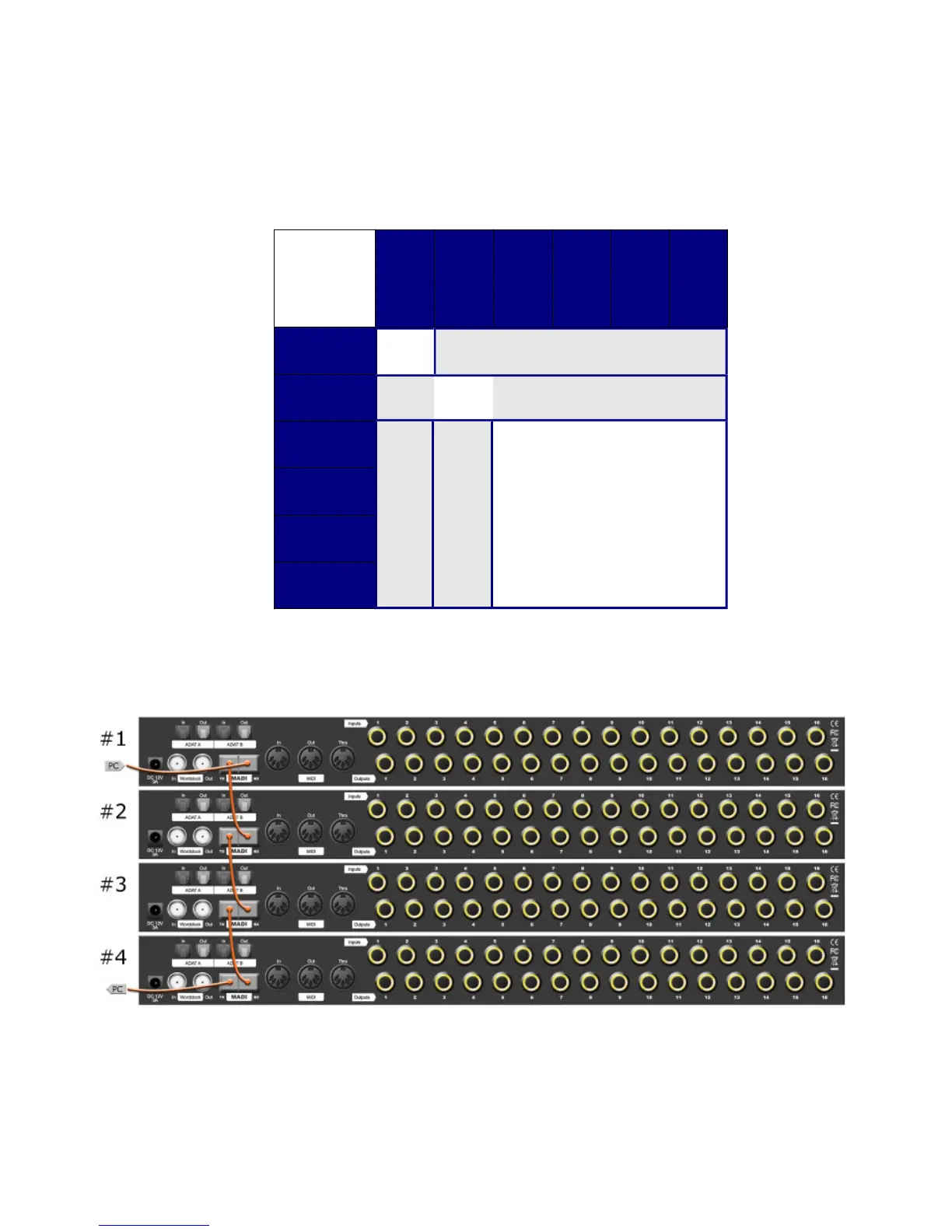

The following table shows an overview of possible routings.
MADI 1 are the first 16 channels, accordingly for MADI 2 to
MADI 4.
source
analog
ADAT
MADI 1
MADI 2
MADI 3
MADI 4
destination
analog
X O O O O O
ADAT
O X O O O O
MADI 1
O O
MADI will be
routed through
if not assigned
otherwise
MADI 2
O O
MADI 3
O O
MADI 4
O O
Example 1: 64 x in, 64 x out with four A16 MK-II
In this example four A16 MK-II are simply chained in row in
order to have 2 x 64 channels. For this purpose, set the four
A16 MK-II from MADI 1 to MADI 4 in the routing preset.
12
