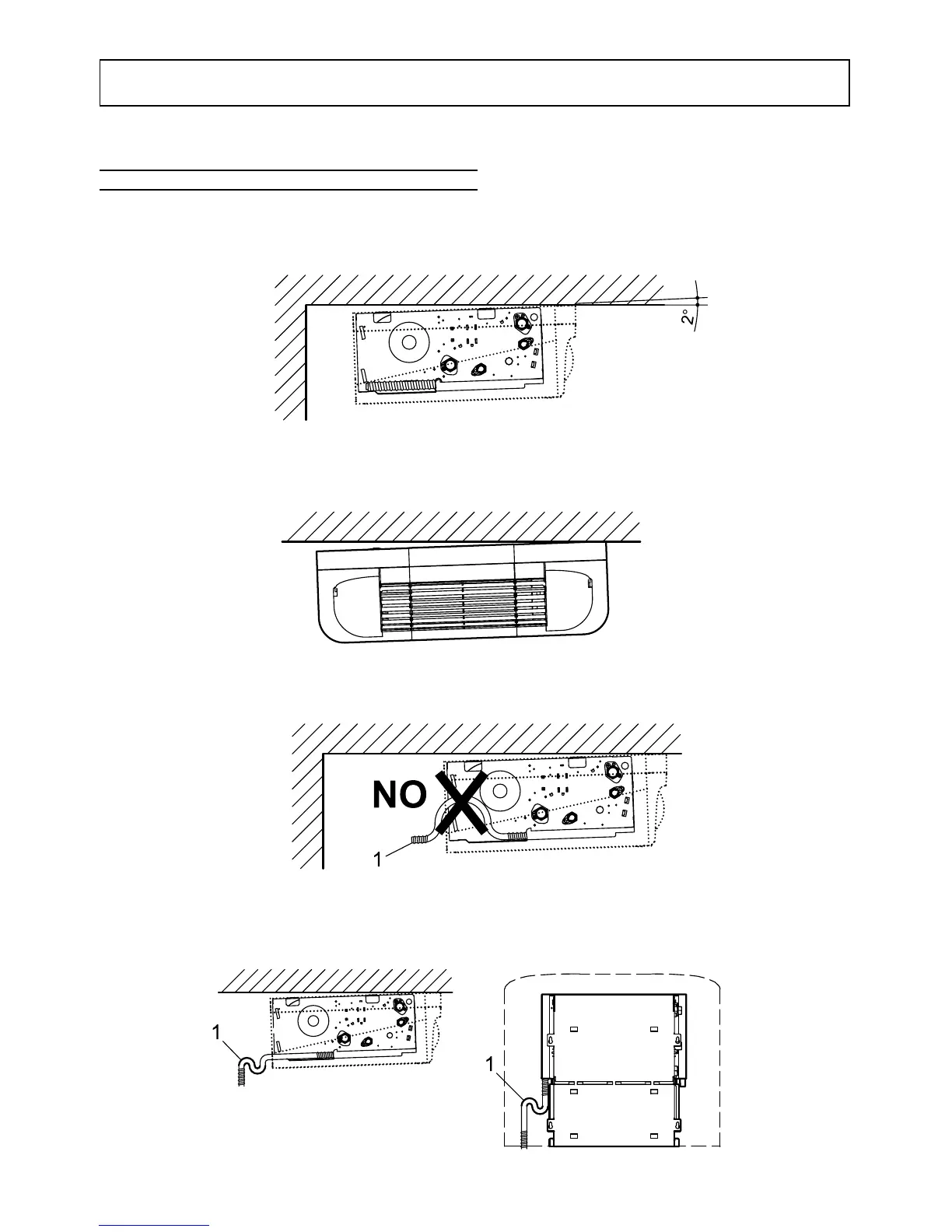

INSTALLATION
Fig.1
RECOMMENDATIONS FOR CORRECT INSTALLATION
• Horizontal installation:
- The appliance must slant at least 2° to allow the condensation to flow away. See Fig.1.
Fig.2
- The appliance must slant slightly towards the downflow side to prevent water from stagnating in the tray. See Fig.2.
- Make sure that the drain pipe is perfectly straight. See 1-Fig.3.
Fig.3
- It is advisable to make a trap (1) on the condensation drain pipe to prevent unpleasant odours from rising. See Fig.4.
Fig.4
16
