Ferroli ATLAS D User Manual

ATLAS D
28
EN
cod. 3540S131 - 12/2009 (Rev. 00)

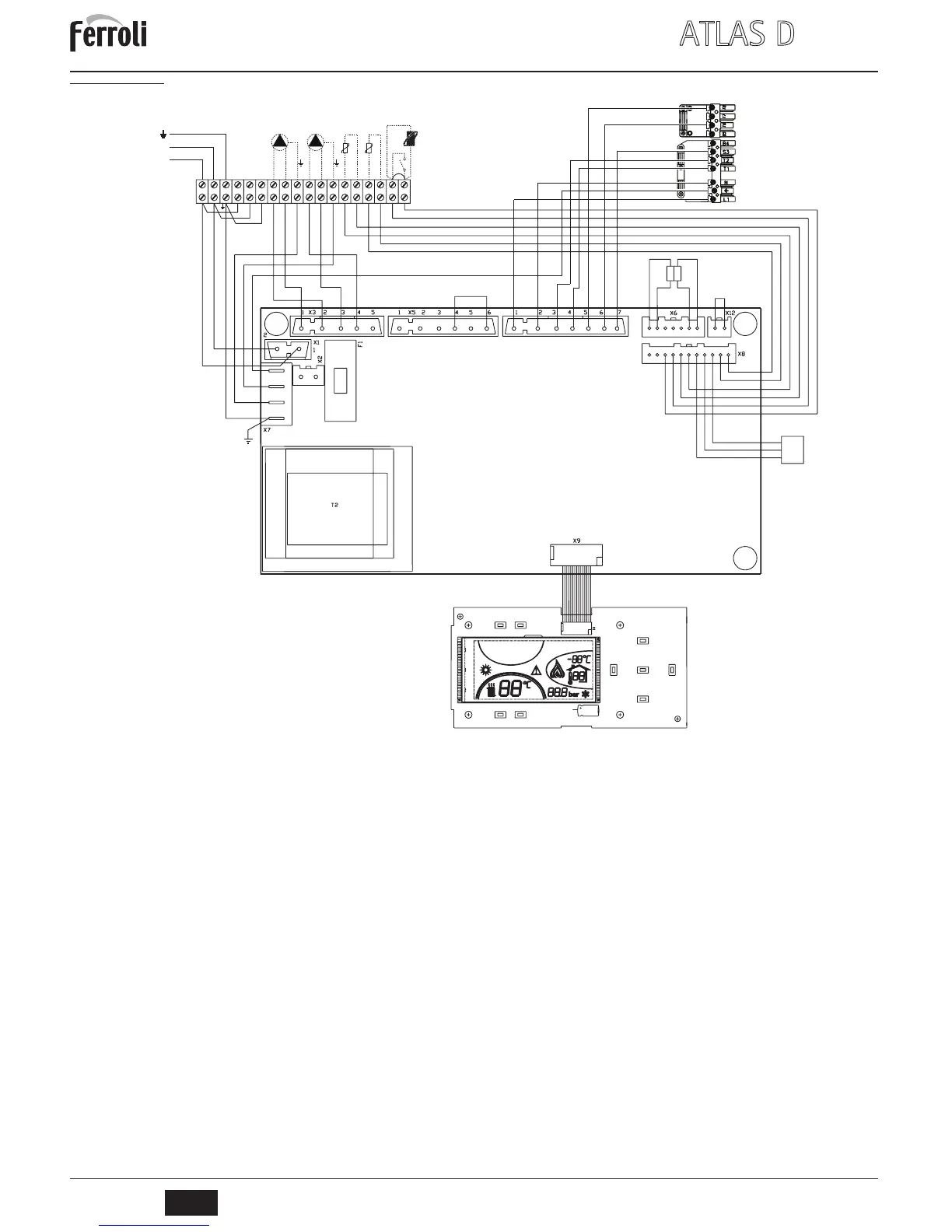

5.4 Wiring diagram
fig. 21 - Wiring diagram
32 Heating circulating pump (optional)
42 DHW temperature probe (optional)
72 Room thermostat (optional)
130 DHW circulating pump (optional)
138 External probe (optional)
139 Room unit (optional)
211 Burner connector
246 Pressure transducer
278 Double sensor (heating + safety)
304 2nd stage burner connector (version with 6 and 7 elements only)
DBM06A
T° T°
278
OUT
+5V
GND
246
L
N
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
DSP05
L
N
230V
50Hz
32
138
139
72
211
304
130
42

Ferroli ATLAS D Specifications

General

Type	Condensing
Fuel Type	Natural Gas / LPG
Heat Exchanger Material	Stainless Steel
Max working temperature	80 °C
Efficiency	Up to 98%
Output	24 kW
Water pressure	Max. 3 bar
