Ferroli DIVA C32 - Wiring Diagram

DIVA C24 / C28 / C32
19
EN
cod. 3541E032 - Rev. 00 - 02/2014
5.6 Wiring diagram

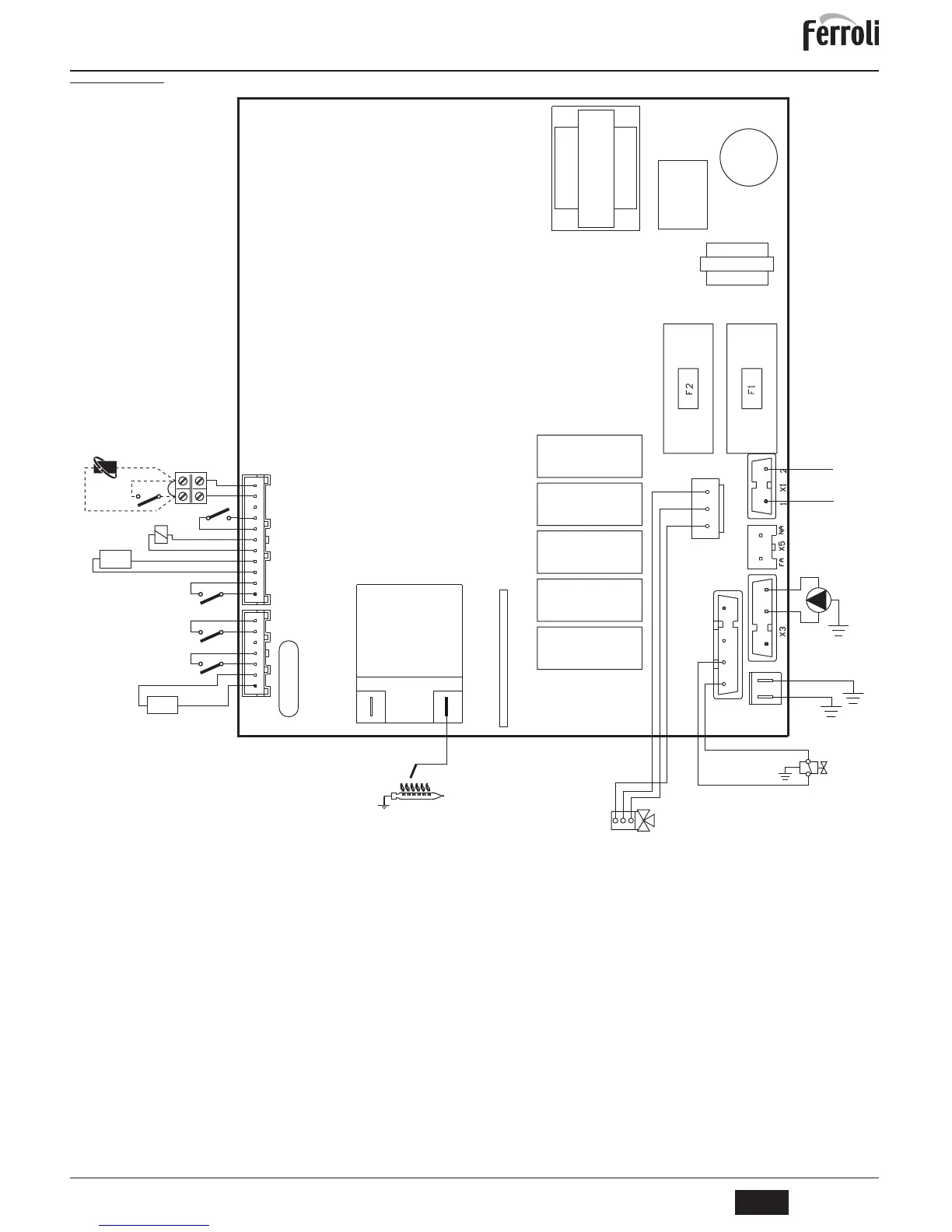

fig. 21 - Wiring diagram
A
Attention: Remove the jumper on the terminal block before connecting the
room thermostat or remote timer control.
32 Heating circulating pump
34 Heating temperature sensor
38 Flow switch
42 DHW temperature sensor
44 Gas valve
47 Modureg
49 Safety thermostat
72 Room thermostat (optional)
81 Ignition/detection electrode
95 Diverter valve
114 Water pressure switch
126 Fume thermostat
139 Remote timer control (optional)
X4
1
2
3
4
5
6
7
114
42
47
38
72
T.
L
N
230V
50 Hz
1
3
2
32
X7
1
44
81
1
2
3
4
5
6
7
8
9
10
11
X2
DBM32
PT1
PT2
49
126
34
T.
PR08205
3.15A 250Vac
2
3
4
139
1 2 3
95
