DIVA D C24
54 EN
cod. 3542B920 - Rev 06 - 11/2023
4.3 Hydraulic circuit

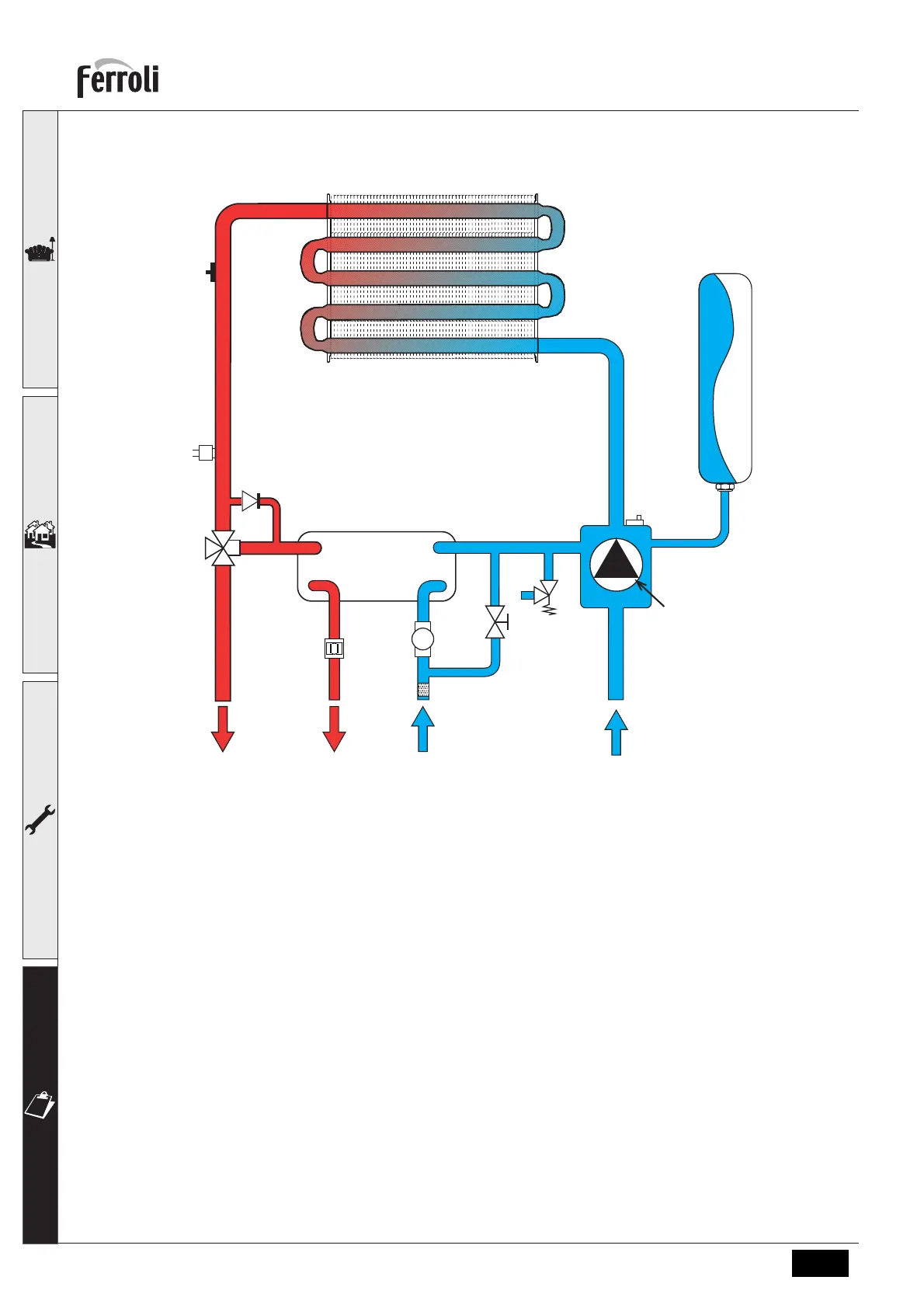

fig. 18- Heating circuit
8 DHW outlet - Ø 1/2”
9 DHW inlet - Ø 1/2”
10 System flow - Ø 3/4”
11 System return - Ø 3/4”
14 Safety valve
27 Exchanger
32 Heating circulating pump
36 Automatic air vent
37 Cold water inlet filter
42 DHW temperature sensor
56 Expansion tank
74 System filling faucet
95 Diverter valve
114 Water pressure switch
136 Flowmeter
194 DHW exchanger
241 Automatic bypass
278 Double sensor (Safety + heating)
27
278
241
1110 8 9
95
32
56
36
194
42
14
136
74
114
37
