DIVAPROJECT C24
38
EN
5. TECHNICAL DATA AND CHARACTERISTICS
Table. 4 - Legend - figures of cap. 5

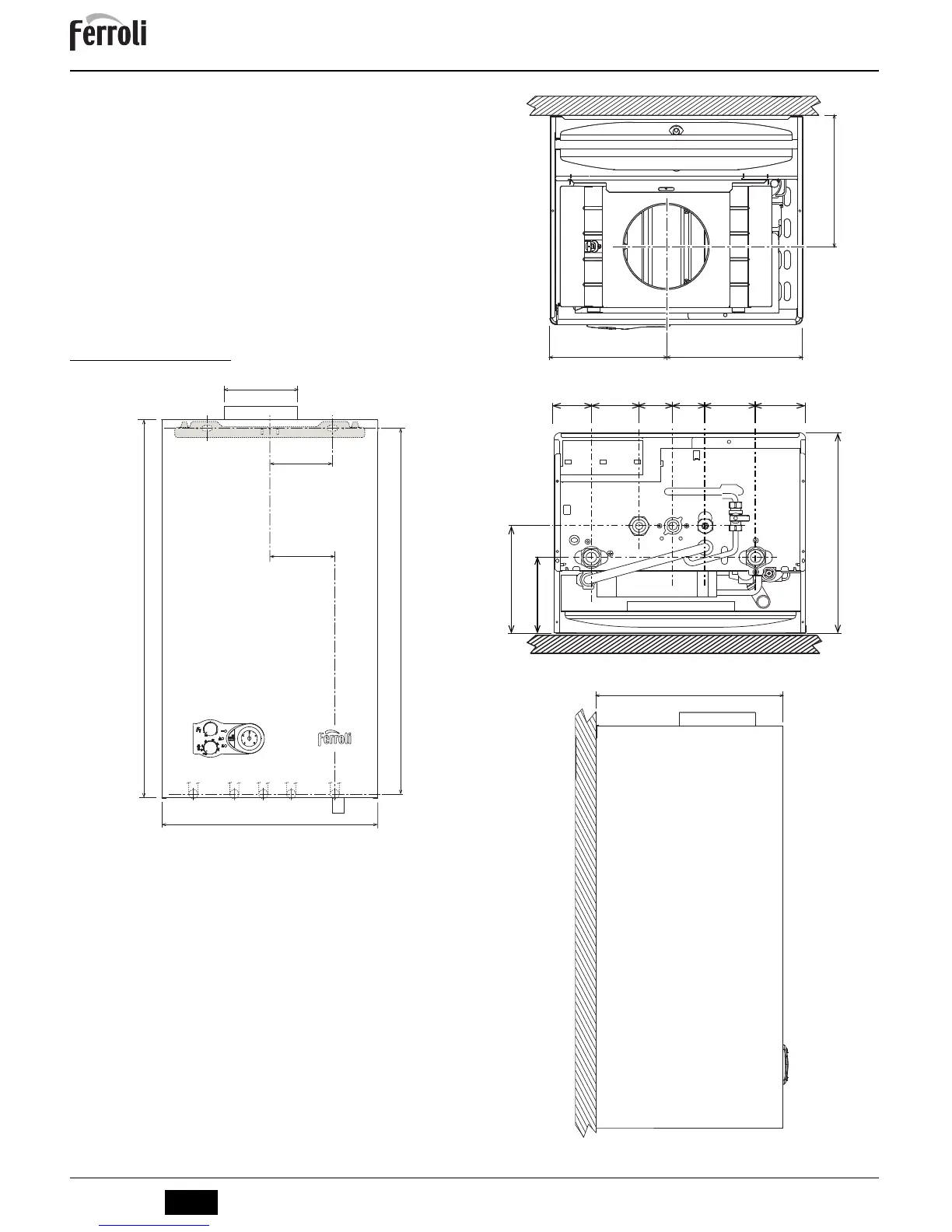

5.1 Dimensions and connections
fig. 8 - Front view
fig. 9 - Top view
fig. 10 - Bottom view
fig. 11 - Side view
7 Gas inlet 39 Water flow limiter
8 Domestic hot water outlet 42 DHW temperature sensor
9 Cold water inlet 44 Gas valve
10 System delivery 49 Safety thermostat
11 System return 56 Expansion tank
14 Safety valve 74 System filling cock
19 Combustion chamber 78 Anti-backflow device
22 Burner 81 Ignition and detection electrode
27 Copper exchanger for heating and hot water 95 Diverter valve
32 Heating circulating pump 114 Water pressure switch
34 Heating temperature sensor 126 Fume thermostat
36 Automatic air vent 194 DHW exchanger
37 Cold water inlet filter 241 Automatic bypass
38 Flow switch
700
680
400
117
120
Ø 131
184
216
208
330
178
126
60 76 54 50 80 80
10
897
11
330
FRG*5HY
