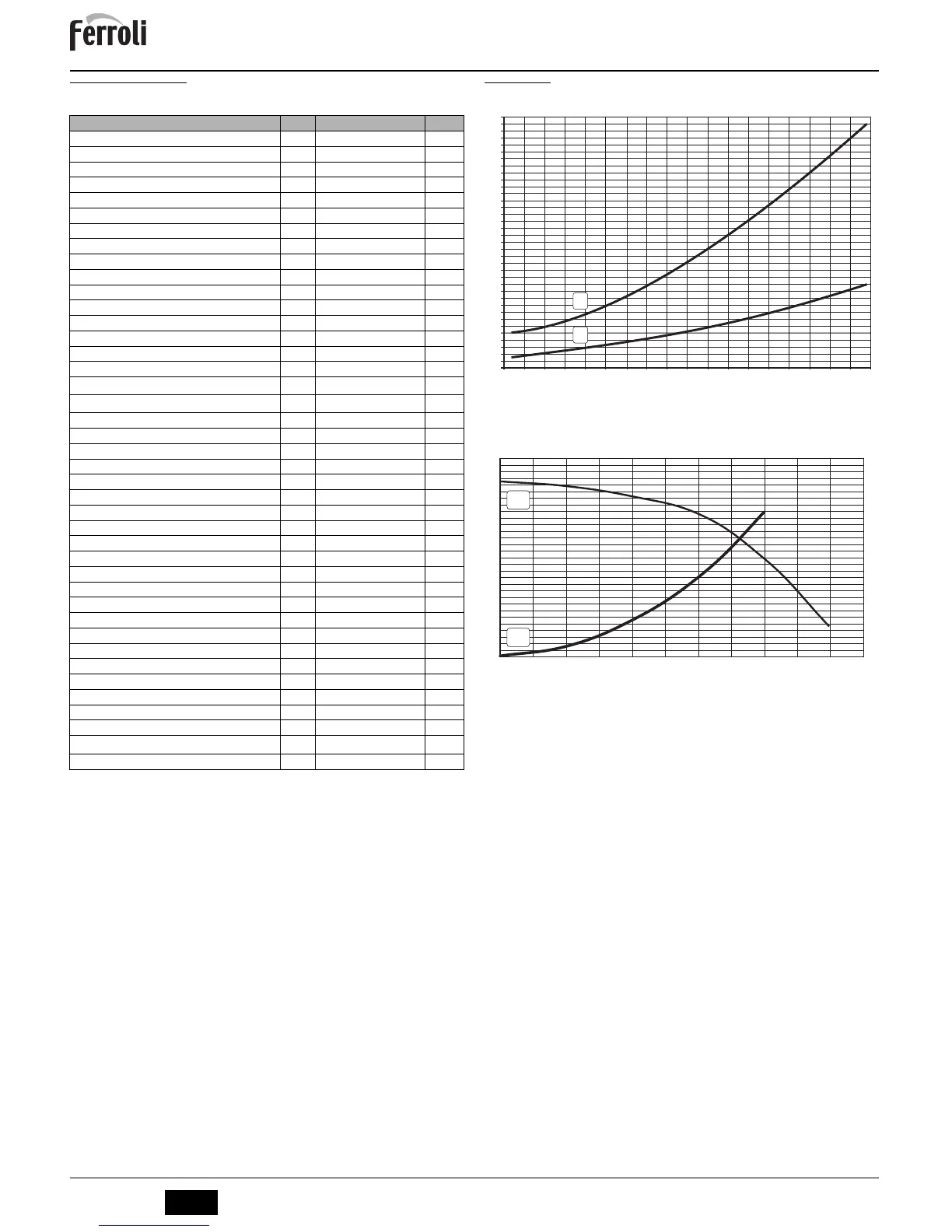

5.4 Technical data table
The column on the right gives the abbreviation used on the data plate.
5.5 Diagrams
Circulating pump head / pressure losses
A = Boiler pressure losses - B = Circulating pump speed
Data Unit DIVAPROJECT C24
Max. heating capacity kW 25.8 (Q)
Min. heating capacity kW 8.3 (Q)
Max. heating capacity in DHW kW 25.8 (Q)
Min. heating capacity in DHW kW 8.3 (Q)
Max. Heat Output in heating kW 23.5 (P)
Min. Heat Output in heating kW 7.0 (P)
Max. Heat Output in DHW kW 23.5
Min. Heat Output in DHW kW 7.0
Efficiency Pmax (80-60°C) % 91.0
Efficiency 30% % 89.6
NOx emission class - 3 (<150 mg/kWh) (NOx)
Burner nozzles G20 no. x Ø 11 x 1.35
Gas feed pressure G20 mbar 20
Max. gas pressure at burner G20 in DHW mbar 12.0
Max. gas pressure at burner G20 in heating mbar 12.0
Min. gas pressure at burner G20 mbar 1.5
Max. gas flow G20 in heating
nm
3
/h
2.73
Min. gas flow G20
nm
3
/h
0.88
Burner nozzles G31 no. x Ø 11 x 0.79
Gas feed pressure G31 mbar 37
Max. gas pressure at burner G31 in DHW mbar 35.0
Max. gas pressure at burner G31 in heating mbar 35.0
Min. gas pressure at burner G31 mbar 5.0
Max. gas flow G31 in heating kg/h 2.00
Min. gas flow G31 kg/h 0.65
Max. working pressure in heating bar 3 (PMS)
Min. working pressure in heating bar 0.8
Max. heating temperature °C 90 (tmax)
Heating water content litres 1.0
Heating expansion tank capacity litres 8
Heating expansion tank prefilling pressure bar 1
Max. working pressure in DHW bar 9 (PMW)
Min. working pressure in DHW bar 0.25
DHW flow rate Dt 25°C l/min 13.4
DHW flow rate Dt 30°C l/min 11.2 (D)
Protection rating IP X5D
Power supply voltage V/Hz 230V/50Hz
Electrical power input W 60
Empty weight kg 27
Type of unit
B
11BS
PIN CE 0461BR0841
