Ferroli F24E - Technical and Dimensional Characteristics

Ferroli F24
4

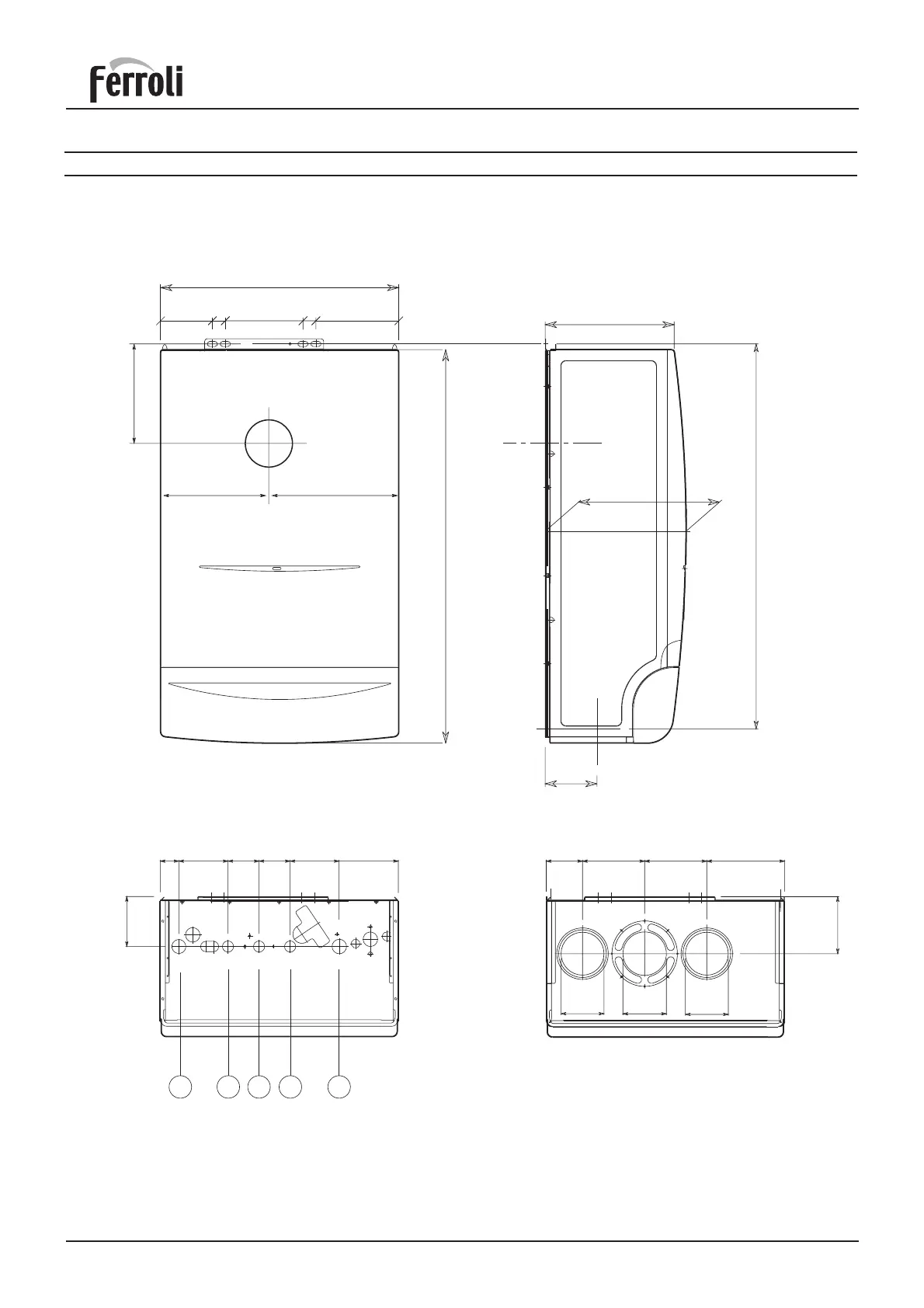

Fig. 1
Top view
Distance between connections
178
190 270
Bottom view
272
760
249
98
609536 60 95
460
100
727
114
160100 25 150 25
84
80
80
12070 120 150
110
5
3
4
2
1
2. TECHNICAL AND DIMENSIONAL CHARACTERISTICS
2.01 Technical information
Ferroli F24 boilers are central heating and domestic hot water heat generators and are produced as
standard to function with natural gas or Liquid Petrolium Gas converted appliances.
Key
1 - 3/4" central heating flow outlet
2 - 1/2" domestic hot water flow outlet
3 - 3/4 “ gas inlet
4 - 1/2" domestic hot water inlet
5 - 3/4" central heating return inlet
6 - Pressure relief outlet
