Central heating Demand
The heat demand can be controlled by the room thermostat (terminal 5-6) or by a switch line 230 V
(terminal 5).
Standard Systems
For a general pipe layout and wiring diagram on the “S” and “Y” plan systems please see fig.
15a, 15b, and 16a, 16b.
OPTIMAX “S” Plan

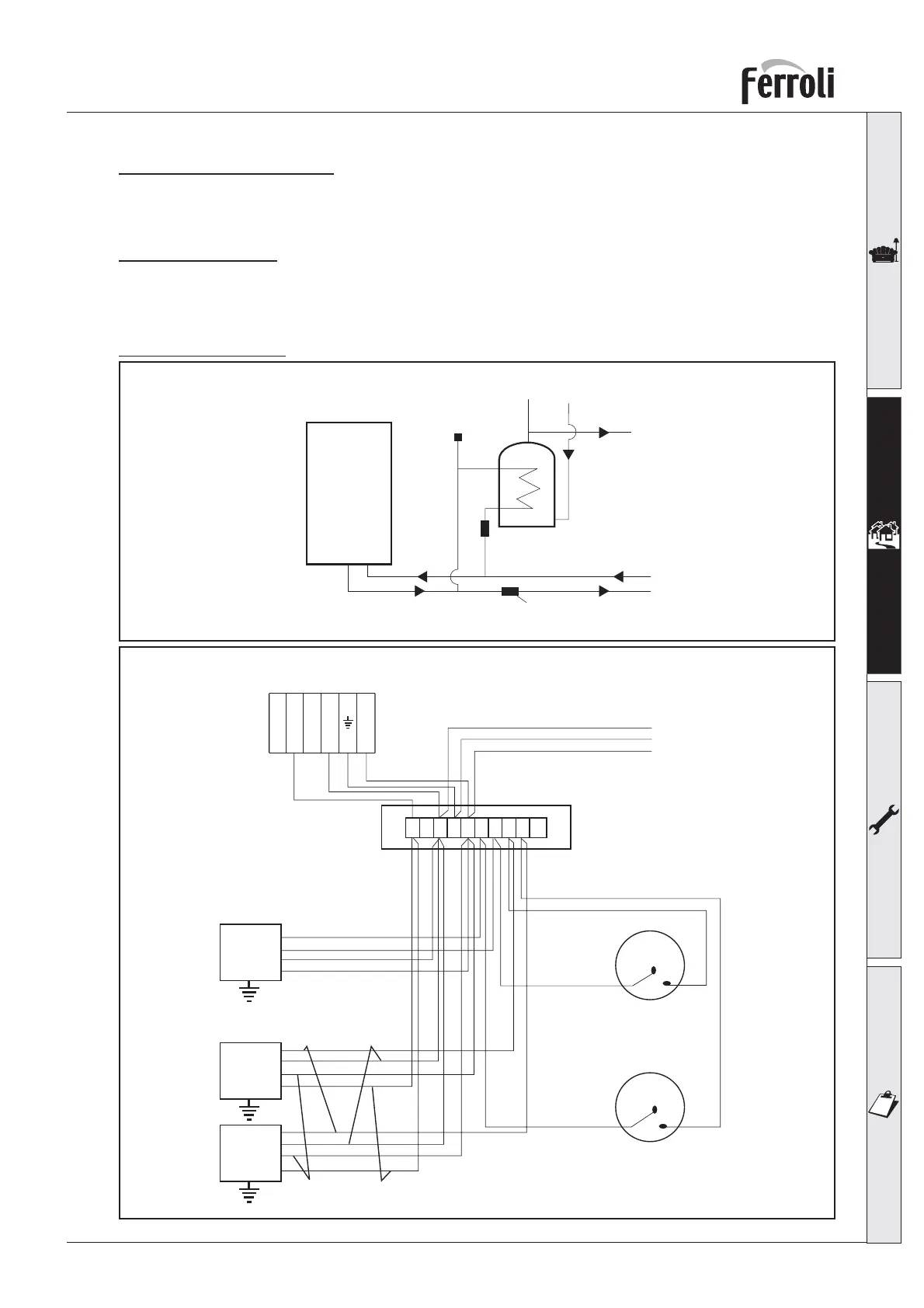

Wiring diagram
OPTIMAX
FERROLI
BOILER
D.H.W.
Zone Valve
C.H.
Zone Valve
Auto air vent
4321
Junction Box
NEL
Terminal 5 - SWITCH LINE
12345678910
PROGRAMMER
DHW ON
CH ON
NEUTRAL
LIVE
CH
zone
valve
DHW
zone
valve
Room Thermostat
Cylinder Thermostat
N
E
L
230 Vac
BROWN BLUE
GREY ORANGE
L
6
5
Fig. 15a
Fig. 15b
Remove
Link
between
terminals 5-6
Pipe layout
