2. Link valves.

7.2 Mounting

7.2.1 Mounting via Underside of Valve

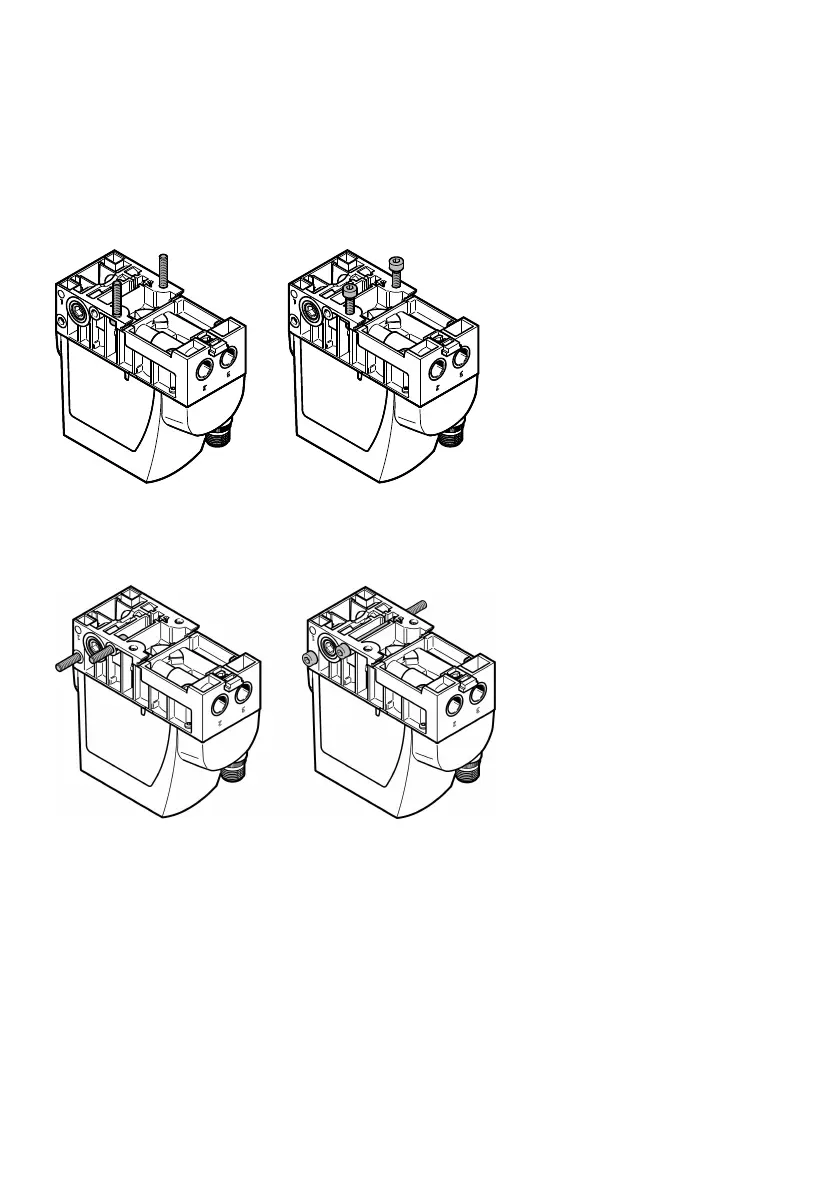

Fig. 6 Mounting via underside of valve with M4 screws/M4 screws and square nuts

7.2.2 Mounting via Side Surface

Fig. 7 Mounting via side surface with internal screws M4 / through screws M4

Mounting

8 Festo — VPPI-...-D — 2019-12
