Festo VPPI D Series - Product Overview; Product Design; Transport and Storage

5 Product overview
5.1 Function
A built-in pressure sensor records the pressure at the working port and compares this value with the
setpoint value. In the event of deviations between the setpoint value and actual value, the valve regu-
lates until the outlet pressure has reached the setpoint value.
VPPI -...- 3 -...
(normally closed)
VPPI -...- 4 -...
(normally open)

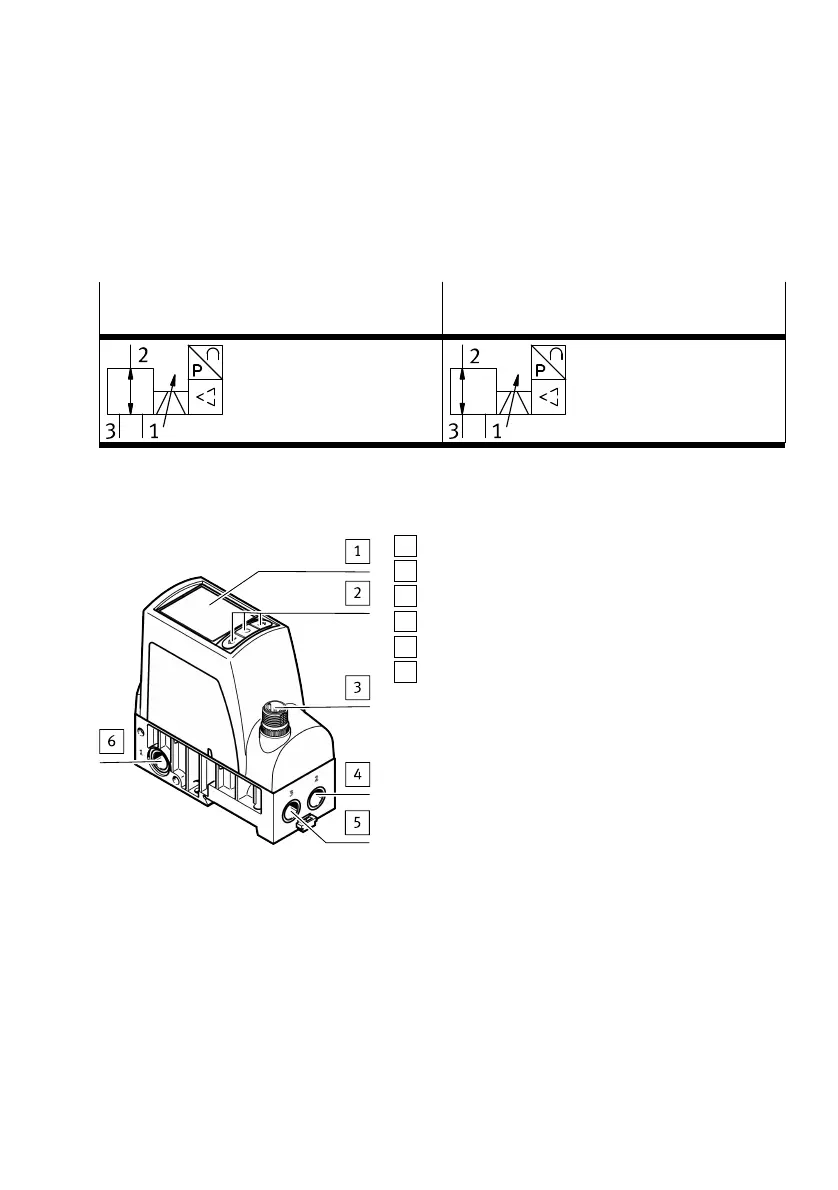

Tab. 2 Pneumatic Circuit Symbol
5.2 Product Design
1
Display
2
Operating buttons Display menu
3
M12 plug
4
Working air port (2)
5
Exhaust air port (3)
6
Compressed air port (1)
Fig. 1 Product Design
6 Transport and Storage
– Store the product in a dry, UV- and corrosion-protected environment.
– Ensure short storage times.
