Festo VPPM-6TA-L Series Assembly Instructions

Assembly instructions (en)
726 382 / 2008-05NH
†‡
Proportional-pressure regulator
VPPM-6TA-L-…
Festo AG & Co. KG
Postfach
D-73726 Esslingen
++49/(0)711/347-0
www.festo.com

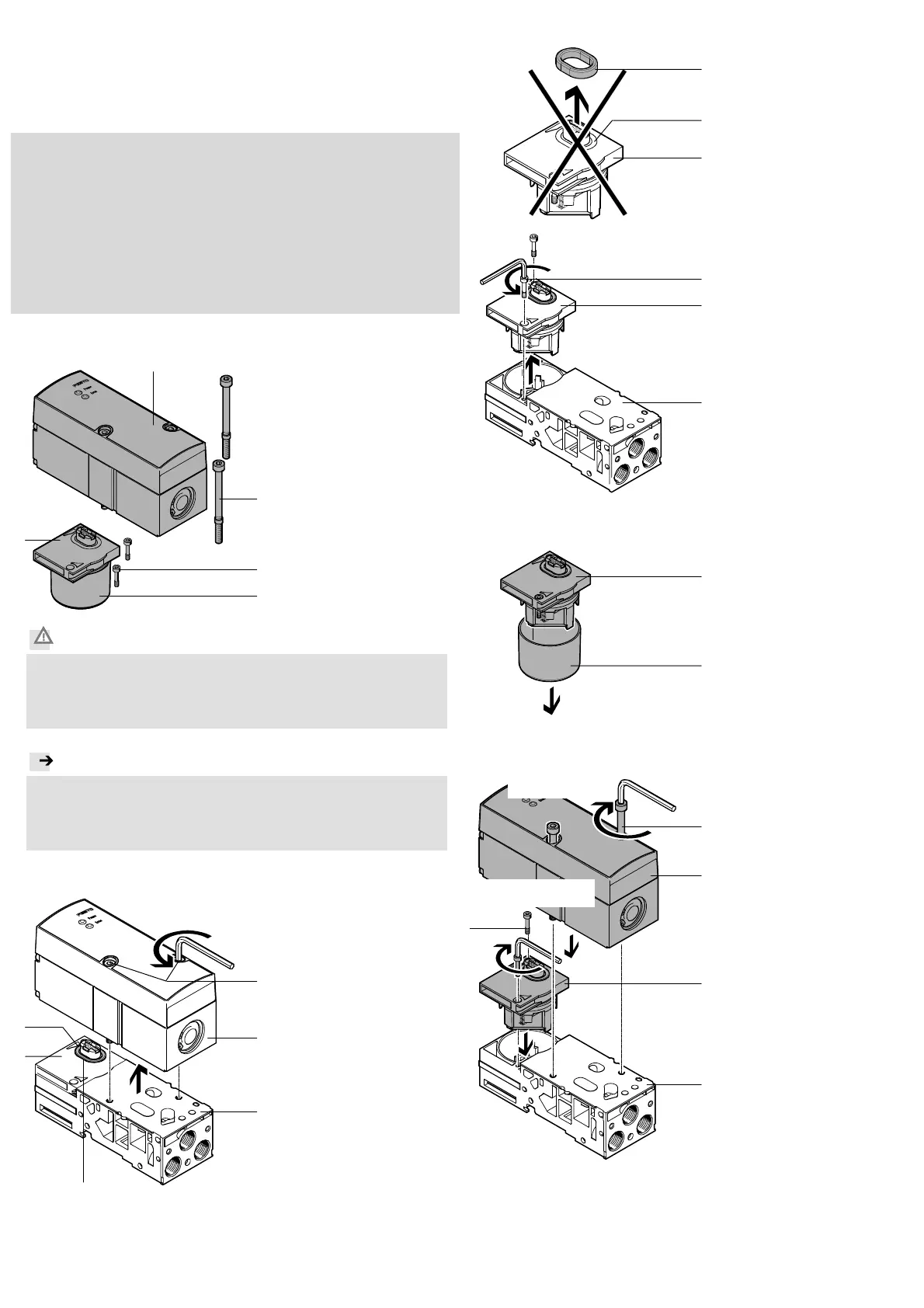

1. Parts list
12701d_1
1 Proportional-pressure
regulator
VPPM-6TA-L-… (1x)
2 Socket head screw (2x)
3 Electronic module
VMPA-FB-EMG-P1 (1x)
4 Socket head screw (2x)
5 Protective cap (1x)
Caution
Uncontrolled movements of the connected actuators.
This may result in injury.
• Make sure that assembly is carried out when the device is disconnected
from the power and compressed air supplies.
Note
Damage to components and functioning faults!
• Observe the regulations for handling electrostatically sensitive
components.
• Fit only an electronic module 3 of the same type.
2. Disassembly
12701d_2
• Loosen the screws 2 of the
VPPM-… 1.
• Pull the VPPM-… 1 carefully
without tilting away from the
sub-base 6.
• Make sure that the seal 7 is
still seated in groove (X) of
the VMPA-… 3.
12701d_3K
• Place the seal 7 in
groove (X) again.
12701d_4
• Loosen the screws 4 of the
VMPA-… 3.
• Pull the VMPA-… 3 carefully
away from the sub-base 6.
3. Preparing for assembly
12701d_5
• Remove the protective
cap 5 from the VMPA-… 3.
4. Assembly
12701d_6
• Insert the VMPA-… 3 in the
sub-base 6.
• Tighten the screws 4.
Maintain the permitted
tightening torque.
• Place the VPPM-… 1 on the
sub-base 6.
Maintain the permitted
tightening torque.
6
1
7
6
3
4
5
3
6
1
2
M
A
= 2 Nm _ 20%
2
4
5
X
3
M
A
= 0.4 Nm _ 20%
3
4
7
X
1
2
3
3
