12
– Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.

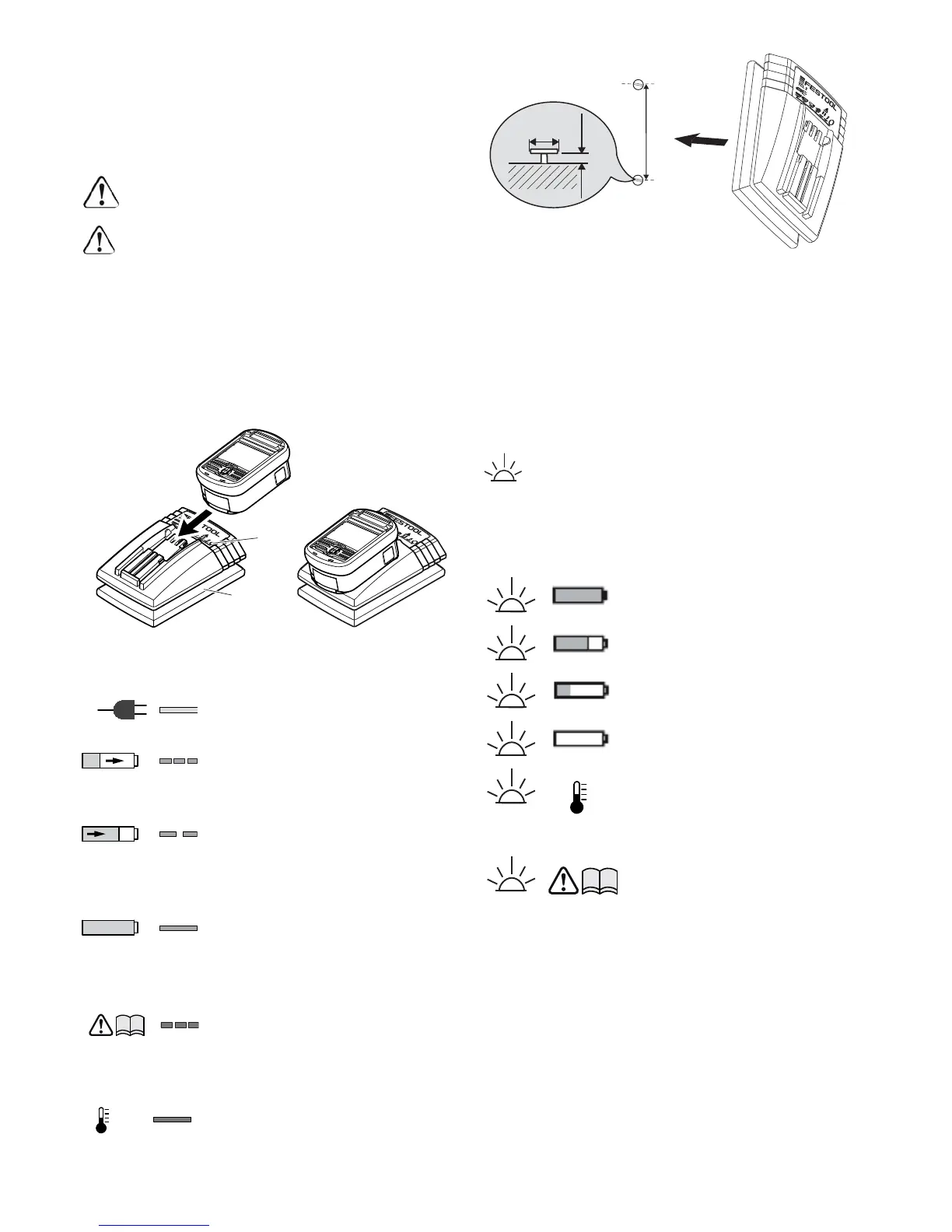

Charging battery pack [3]
Charge Festool battery packs only using an
original Festool chargerTCL 3.
Unwind the cable completely from the recess
[3-2]
before using the charger.
The charger TCL 3 can be used to charge all Festool
battery packs of the BPS and BPC series. The char-
ger automatically detects the type of the inserted
battery (NiCd, NiMH or LiIon). A microprocessor
controls the charging process in line with the
charging state, temperature and voltage of the bat-
tery pack.
The LED
[3-1]
on the charger indicates the respec-
tive operating status of the charger.
Charger wall mount
The charger TCL 3 has two elongated holes on its
back. It can be mounted on a wall using two screws
(e.g. round head or flat head screw with shank di-
ameter of 5 mm) (see Fig.
[4]
).
Light and battery capacity indicator
The LED on the lamp
[1-10]
is both a light
and a battery capacity indicator
[1-9]
.
The LED automatically indicates the charging state
of the battery pack (not NiCd and NiMH battery
packs) when the on/off switch
[1-4]
is pressed.
LED yellow - lit continuously
Charger is ready to use.
LED green - flashes quickly
Battery pack is charged to maxi-
mum capacity.
LED green - flashes slowly
Battery pack is charged with
reduced current. Li-ion is
charged to 80 %.
LED green - lit continuously
Charging is complete or is not
restarted as current charge sta-
tus is greater than 80%.
LED red - flashes
General fault indication, e.g.
incomplete contact, short circuit,
defective battery pack, etc.
LED red - lit continuously
Battery temperature is outside
the permitted range.
LED green – lit continuously:
charged > 60 %
LED green – flashing slowly:
charged 30 % – 60 %
LED green – flashing quickly:
charged 0 % – 30 %
LED yellow – lit continuously:
battery is empty
LED red – lit continuously:
bat-
tery, electronics or motor tem-
perature is outside the
permitted range.
LED red – flashing:
indicates a
general fault, e.g. incomplete
contact, short circuit, battery
pack faulty, etc.
