8
A suction hose Ø 27 mm (1.05 '') ( adapter
is inserted into the angle piece (5.3). A suc-
tion hose Ø 36 mm (1.42 '') adapter is fi tted
over the angle piece (5.3).
Putting the planer down
When working with electric planers you must
remember that the planer shaft continues
to run for a few seconds after the tool is
switched off.

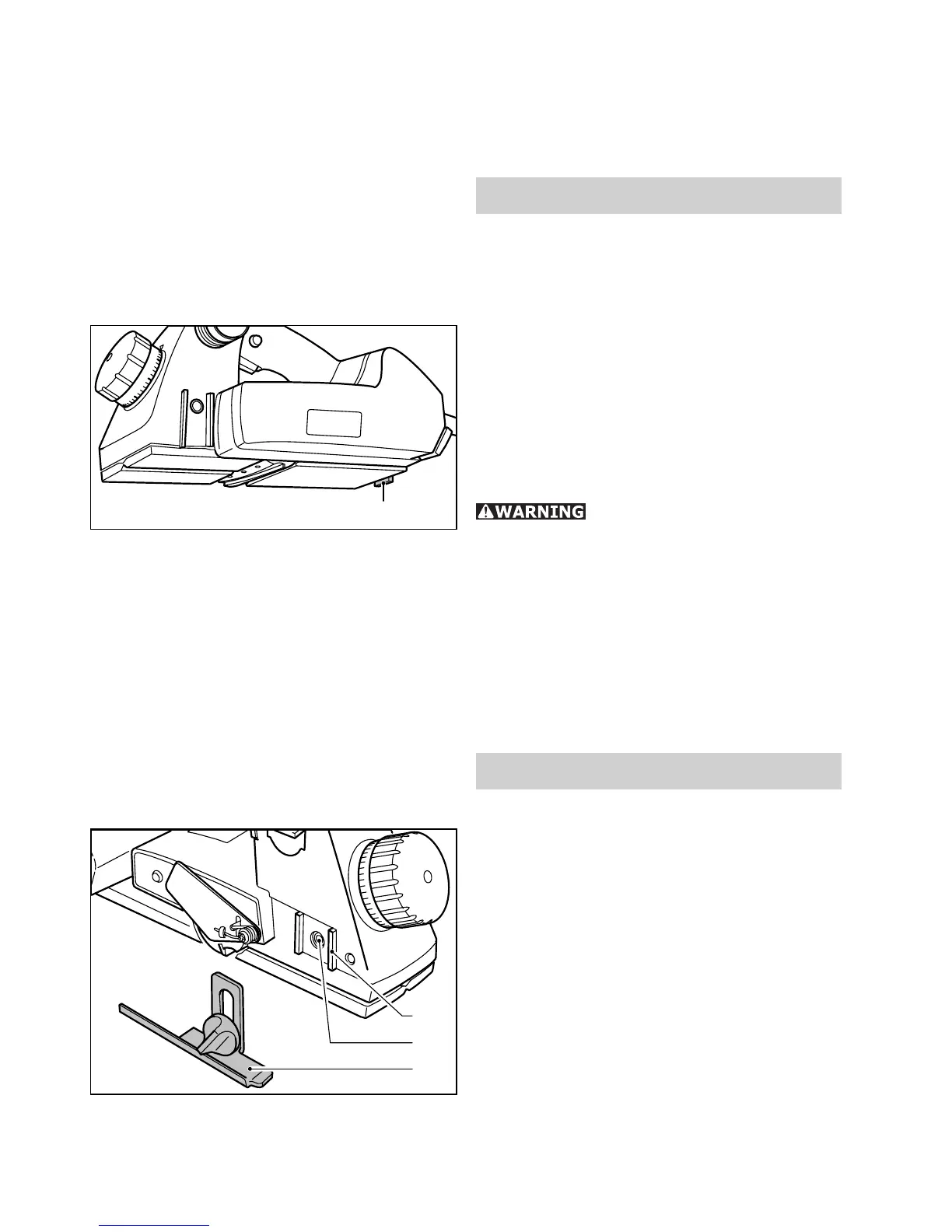

The EHL 65 E has a support foot (6.1) at the
end of the platen so that it can be placed
safely on a work surface.
If the electric tool is taken up, the support
foot automatically protrudes beyond the
planer platen to ensure that the planer shaft
is always raised above fl at work surfaces
when the planer is put down.
Pay attention to the following
when putting the EHL 65 E down:
check that the support foot is present and –
fully operational,
wait until the planer shaft comes to a –
standstill before putting the tool down.
If the support foot should be found obstruc-
tive during special planing work it can be
swung back out of the way and locked in
position.
Fitting the guides
Rebating depth
guide (488 543)
The rebating depth guide (7.1) is mounted
in the threaded hole (7.2) on the front right
of the machine.
The stop can be infi nitely adjusted to be-
tween 0 mm and 23 mm (0.9'') in accor-
dance with the scale. The rebating depth
which has been set can be read against the
notch (7.3).
6.1
7.1
7.2
7.3
