Guide Plate
OK now that we know what the parts look like, we can get started with this tutorial!
I will be making a shop cabinet (frameless, full over lay) from scrap/rejected plywood from other
projects, when done I hope to have a 36"x36"x12" cabinet for storing my abrasives. To get going I'll
need to size the plywood. The TS55 will make short work of this. The first time you use your LR32,
there are some one time adjustment that need to made to side stops. They are covered in the manual

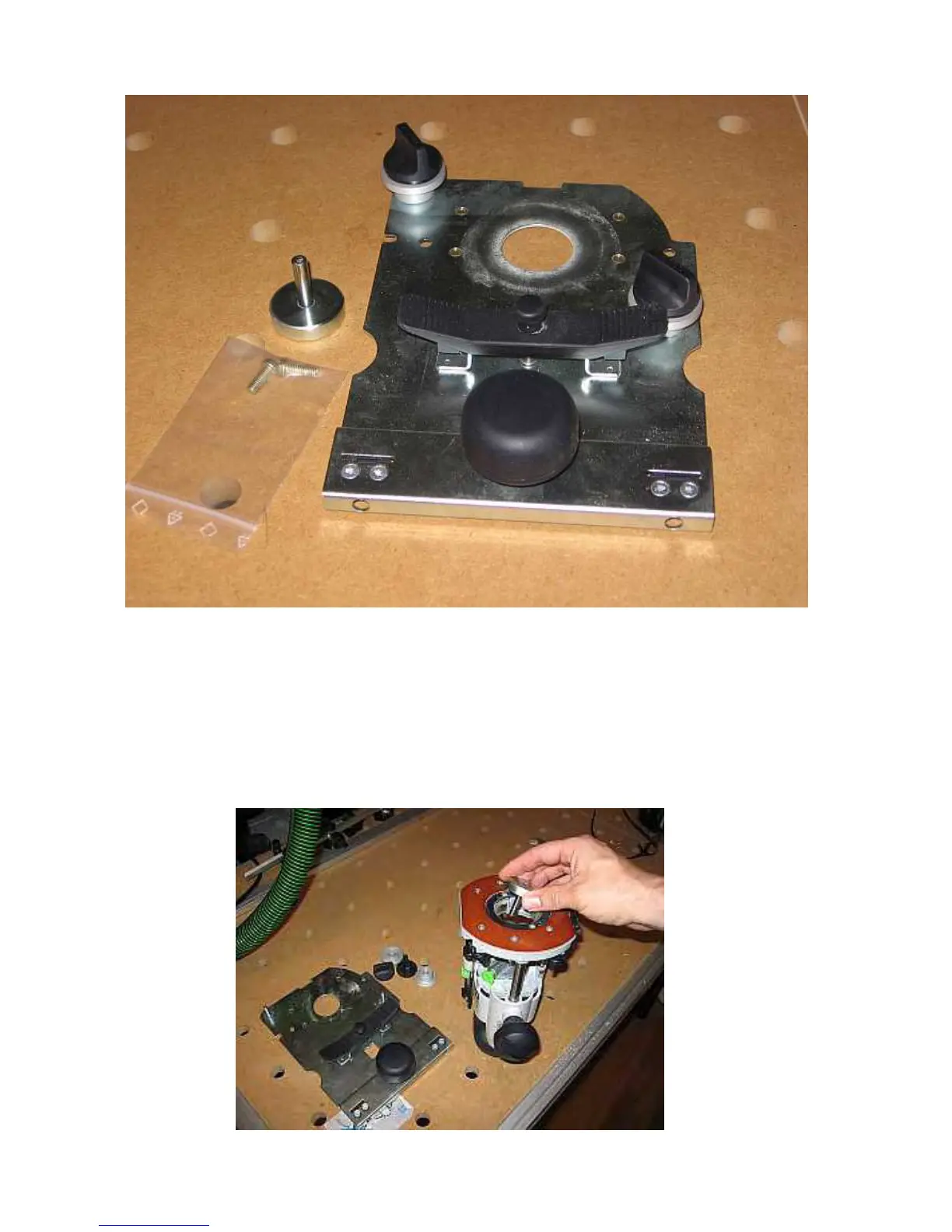

so I won't get into that here. Now I'l attach the guide plate, shown here are both the OF1010 and
OF1400.
The OF 1010 is mounted with the centering mandrel, the clamps and thumb screws. First install the
8mm collet, then the centering mandrel, finger tight will do.
