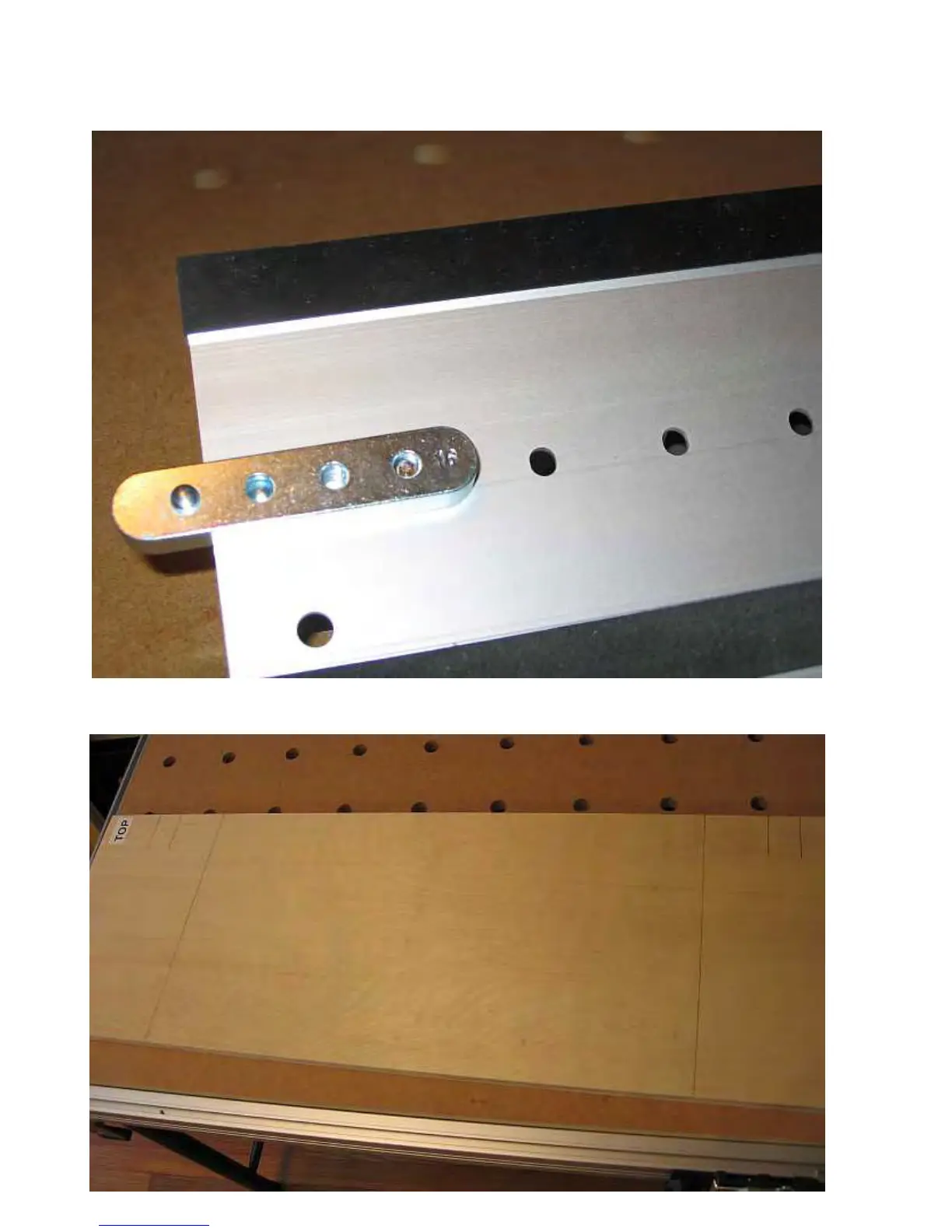

You are looking at the bottom of the guide rail. Note, end stop to the first hole is 16mm, and you can
see the "16" on the end stop.
At this point I will mark where I want to drill the holes in all the work pieces. I use a small line, see
picture. Note "TOP" on the work, this is the top of the side piece of the cabinet.
