8.4 Impact drilling
The machine was designed for impact
drilling into tiles, masonry and stone.
Set the selector switch [1-6] to the hammer
symbol. Set the adjusting wheel [1-8] to the
drill symbol.
9 Tool holder, attachments
WARNING
Risk of injury
► Remove the battery pack from the power
tool before performing any work on the
power tool.
CAUTION
Risk of injury from hot and sharp tool
► Do not use any blunt or faulty tools.
► Wear protective gloves.
Prior to initial use: apply multi-purpose
grease to the drill spindle and gearbox
neck.

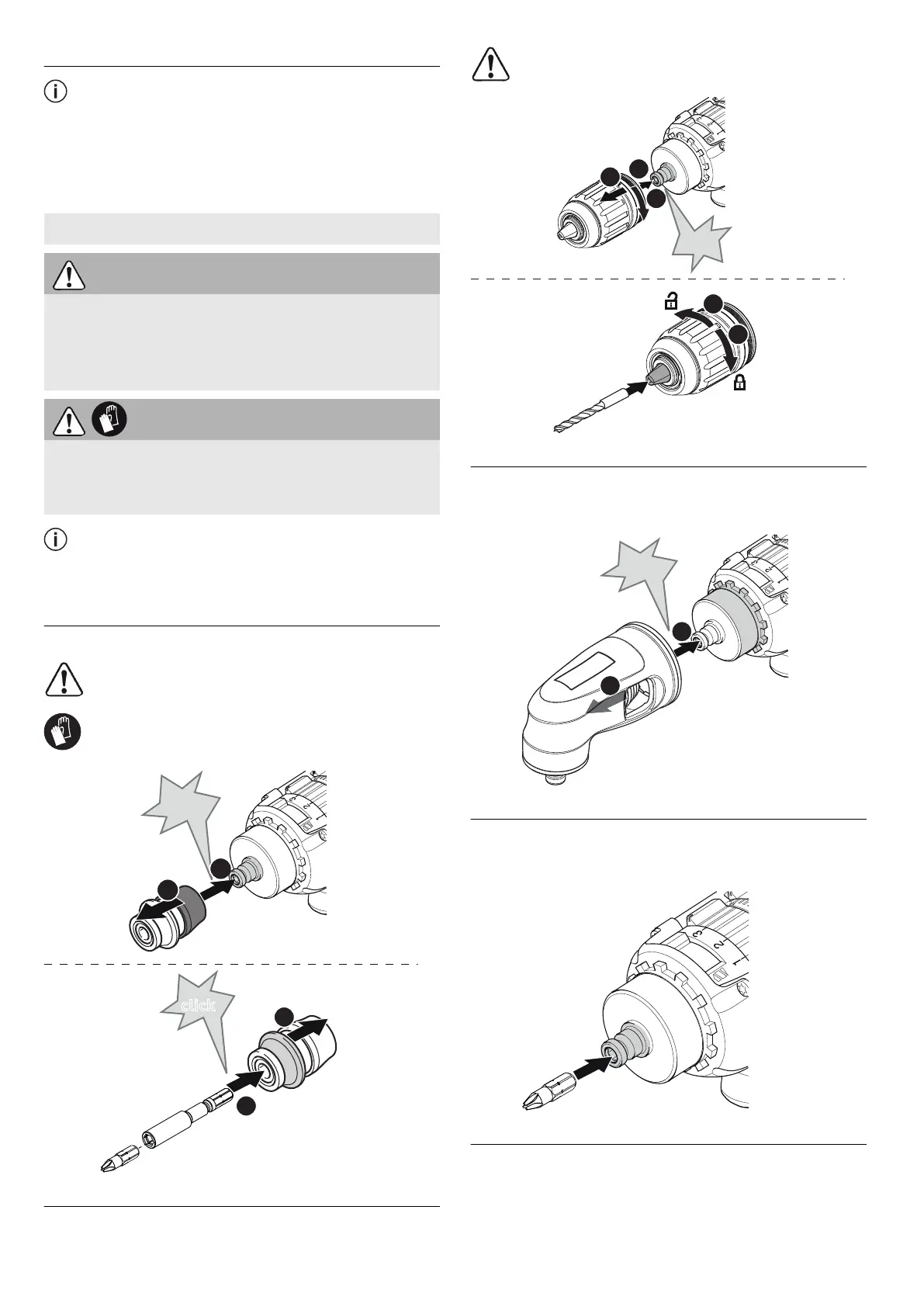

9.1 CENTROTEC tool chuck [3]
Quick change of tools with CENTROTEC shaft
Only clamp CENTROTEC tools in CEN
TROTEC tool chucks.
Wear gloves when replacing!
9.2 Chuck [4]
For clamping drill bits and bits with max. shaft
di-ameter of 13 mm.
Clamp tool centrally in the chuck.
9.3 Angle attachment [5]
Drilling and screwdriving at right angle to ma
chine (partly as an accessory).
9.4 Tool holder in the drill spindle [6]
Bits can be inserted directly into the hexagon
socket holder of the drill spindle.
9.5 Depth stop [7]
The depth stop (partly as an accessory) allows
the user to insert screws to a predefined depth.
