head protrudes above or is recessed below the
surface of the workpiece.

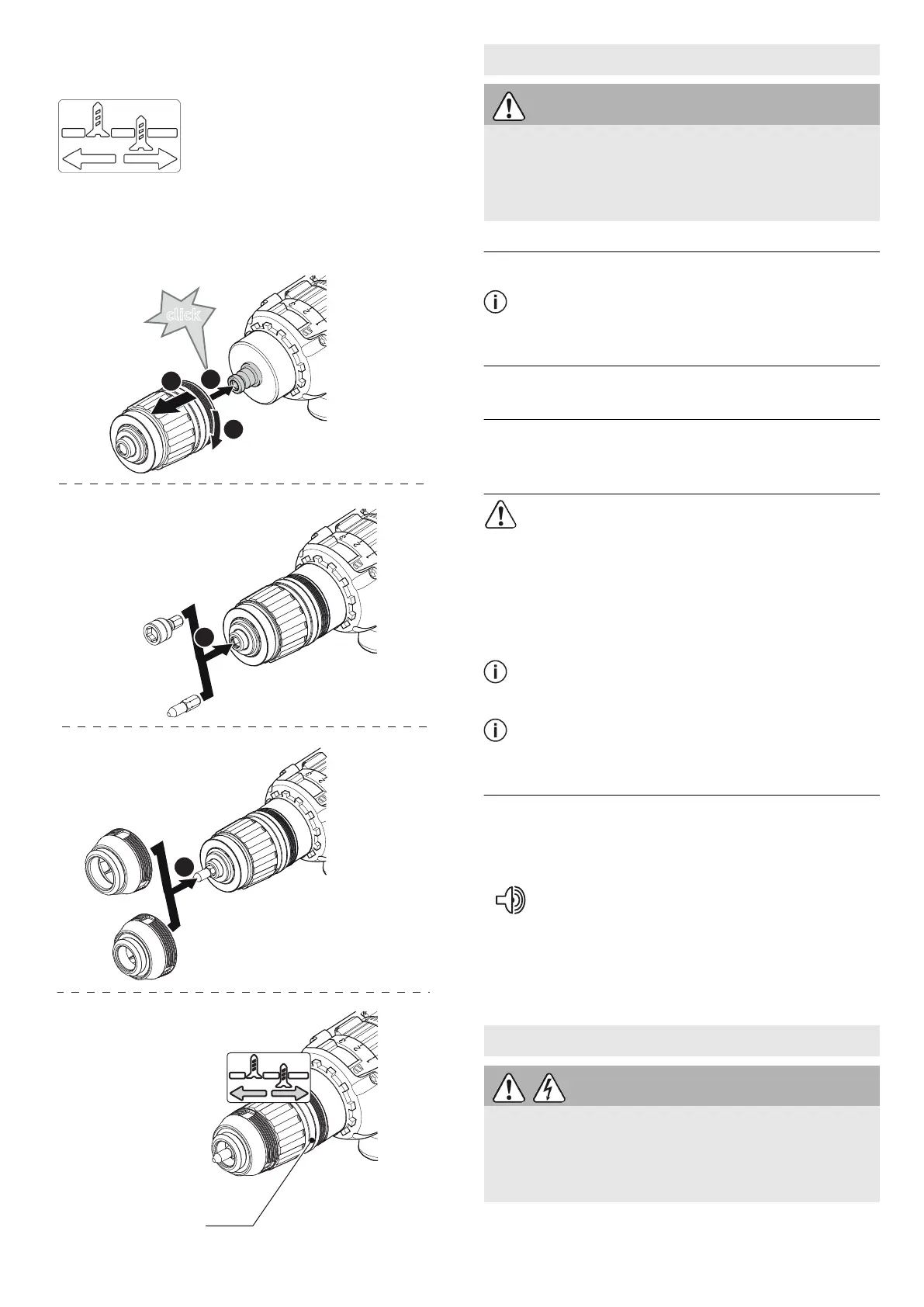

Depth setting
Turn the housing [7-1] to set
the desired fastening depth.
Each detent position changes
the fastening depth by 0.1 mm.
Sleeve A/B must be removed before a screw
can be unscrewed.
7
click
1
2
3
4
A
B
5
7-1
10 Working with the machine
WARNING
Risk of injury
► Always secure the workpiece in such a
manner that it cannot move while being
machined.
10.1 On/Off switch [1-4]
Press = ON, release = OFF
The speed of the machine depends on how
far the on/off switch is pressed in.
10.2 Bit depot [1-3]
Magnetic, for storing bits and bit holders.
10.3 Belt clip [1-10]
The belt clip (right/left) allows the user to at
tach the machine briefly to work clothing.
10.4 Attaching the additional handle [8]
Always use the additional handle.
► Position the additional handle [8-2] on the
extension of the gearbox housing and en
gage the recesses on the additional handle
in the lugs on the housing.
► Turn the handle until secured in position.
Turn the handle to adjust the position in
30° increments.
The drilling depth can be adjusted using
the depth stop [8-1].
10.5 Acoustic warning signals
Acoustic warning signals sound and the ma
chine switches off in the following operating
states:
peep ― ―
– Preset torque
reached.
– "Block protect" -
starting torque too
high.
– Machine overloaded
11 Service and maintenance
WARNING
Risk of injury, electric shock
► Always disconnect the battery pack from
the machine before any cleaning or main
tenance!
