of attaching the guide rail securely using clamps
[12-2]
ensures safer working conditions.
X
Adjust the guide play between the saw table and
the guide rail using the two adjustable jaws
[12-1]
.
Bed in the splinterguard [12-3] before using the
guide rail for the first time:
X
Set the machine speed to 6.
X
Place the machine at the rear end of the guide
rail together with the complete guide plate.
X
Switch on the machine.
X
Push down the machine slowly to the max. pre-
set cutting depth and cut along the full length of
the splinterguard without stopping.
The edge of the splinterguard now corresponds ex-
actly to the cutting edge.
The splinterguard needs to be replaced if it be-
comes damaged or worn:
X
Peel the original splinterguard
[13-1]
away
from the guide rail.
X
As needed, clean residual adhesive and debris
from the guide rail.
X
Peel off the plastic backing from the new splin-
terguard to expose the adhesive.
X
Without stretching the rubber, carefully place
the new splinterguard on the underside of the
guide rail tight to the alignment rib
[13-2]
.
X
Make sure the splinterguard is firmly pressed
down to the guide rail.
X
Trim the splinterguard as described before.
SYSTAINER
Systainer
Many Festool products are shipped in a unique sys-
tem container, called "Systainer". This provides
protection and storage for the tool and accessories.
The Systainers are stackable and can be inter-
locked together. They also can be interlocked atop
Festool CT dust extractors.
To open the Systainer
To lock the Systainer
To connect two Systainers
Place one Systainer on the top of the other (Fig.
[14
A]
).

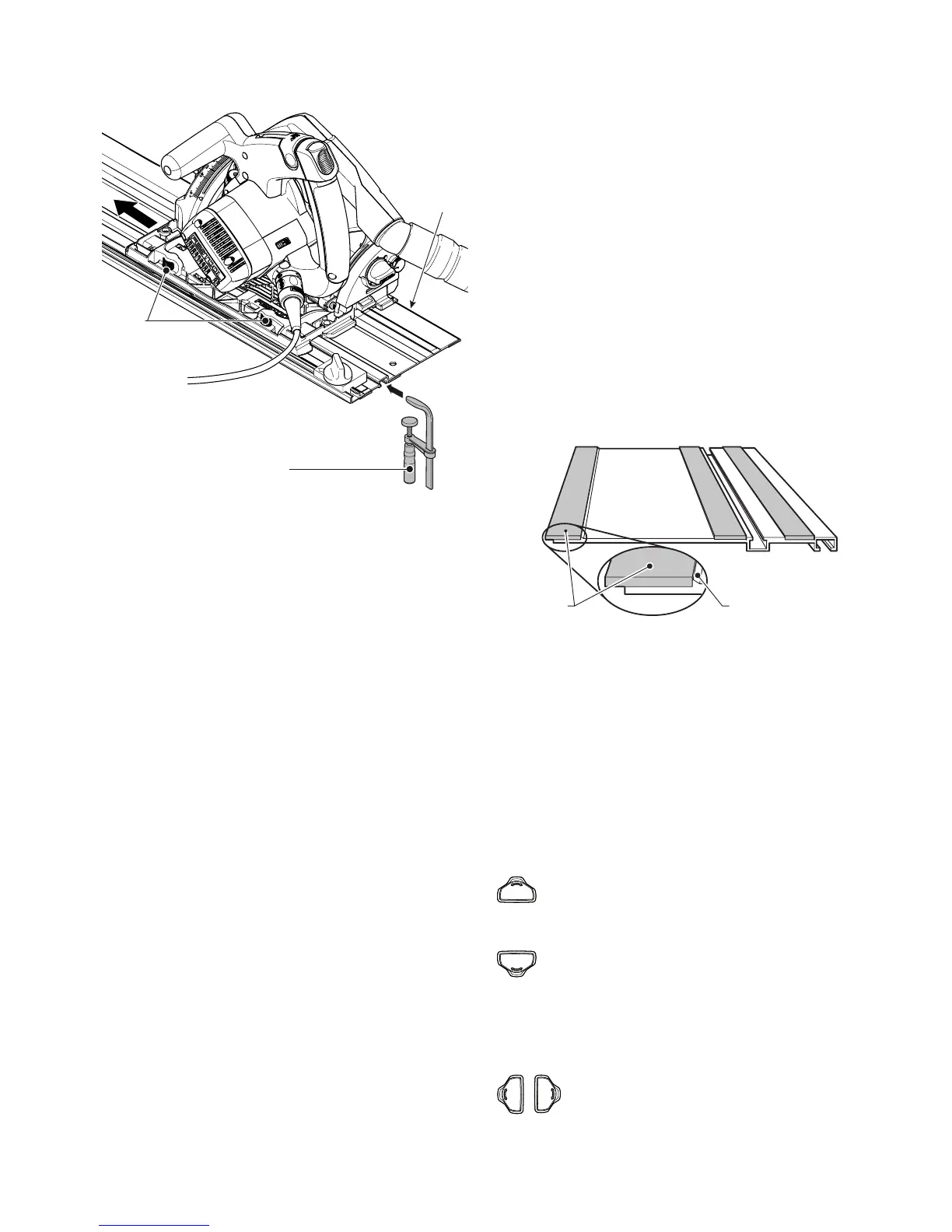

12-1
12-2
12-3
12
Turn the T-loc
[14-1]
to this position.
Turn the T-loc
[14-1]
to this position.
Turn the T-loc
[14-1]
to one of this posi-
tions (Fig.
[14 B]
).
