Parts

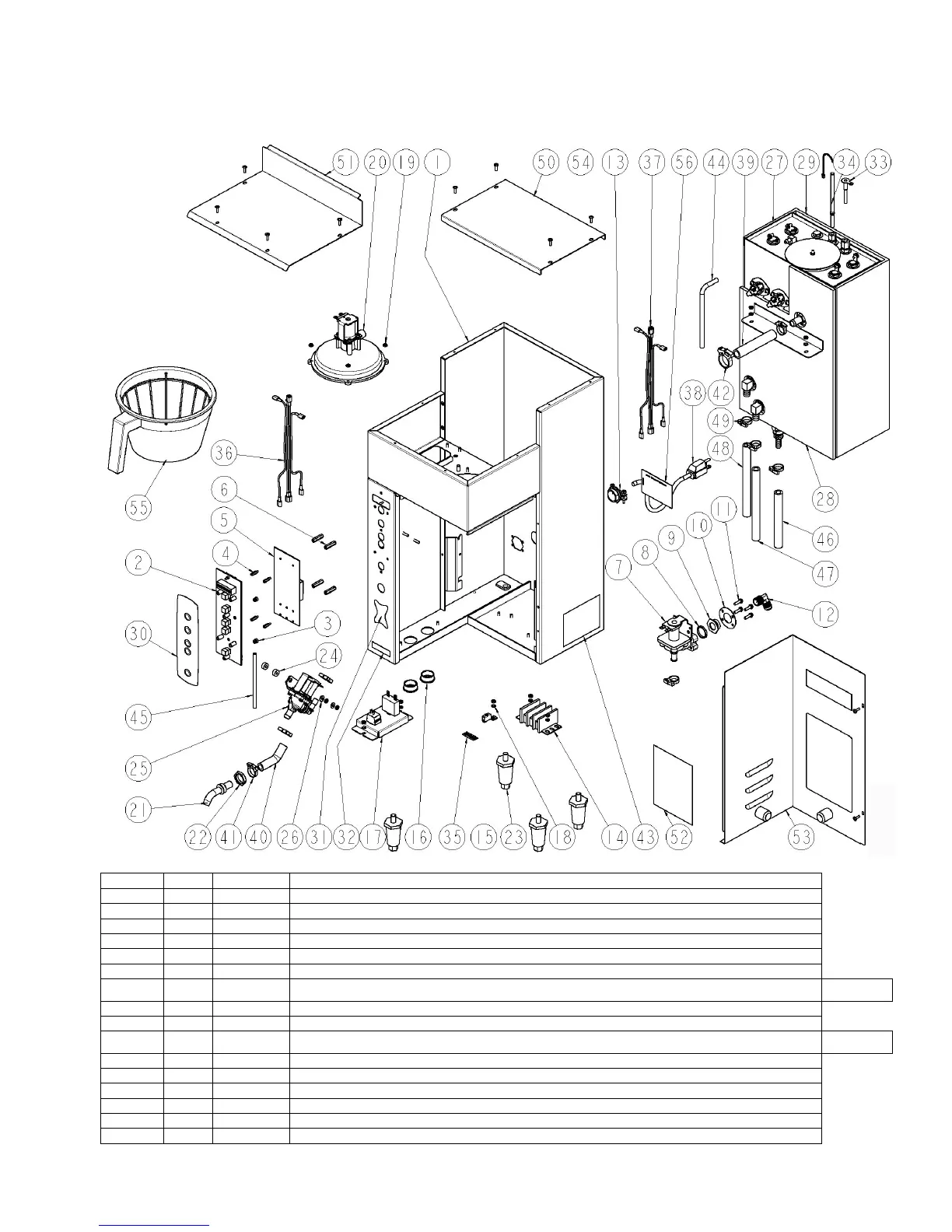

Figure 1 – CBS-2031e / CBS-2031s Main Assembly
DWG 101194-C
ITEM # QTY PART # DESCRIPTION
1 1 001051 WELDMENT CBS-2031e
2 1 108001 SWITCHING/CONTROL BOARD, 5 KEYS, S2P (CBS-2031e ONLY)
2 1 108037 SWITCHING/CONTROL BOARD, 5 KEYS, S2P (CBS-2031s ONLY)
3 2 29007 NUT, #4-40 KNURLED THUMB
4 4 15007 STANDOFF, MALE-FEMALE, THREADED HEX 4-40-1/2"
5 1 51042 BOARD, POWER SUPPLY-120VAC
5 1 51055 BOARD, POWER SUPPLY-220VAC
EXPORT
220V ONLY
6 4 29019 SPACER, .25" HEX x 1" LG., FEM, #4-40 THREAD
7 1 57006 FILL VALVE, S-53 120VAC
7 1 57017 FILL VALVE, S-53 220VAC
EXPORT
220V ONLY
8 1 24012 GASKET, S-53 FILL VALVE
9 1 31078 FITTING, S-53 FILL VALVE INLET
10 1 03074 BRACKET, S-53
11 4 82020 SCREW, S-53 FILL VALVE
12 1 31031 FITTING, 90º MALE ELBOW, 3/8 TUBE OD X 3/8 MPT
13 1 86040 CONNECTOR, CABLE CLAMP, 3/4"
