Fetco CBS-2032E - Figure 2 - CBS-2031 e; CBS-2031 s Tank Assembly

15

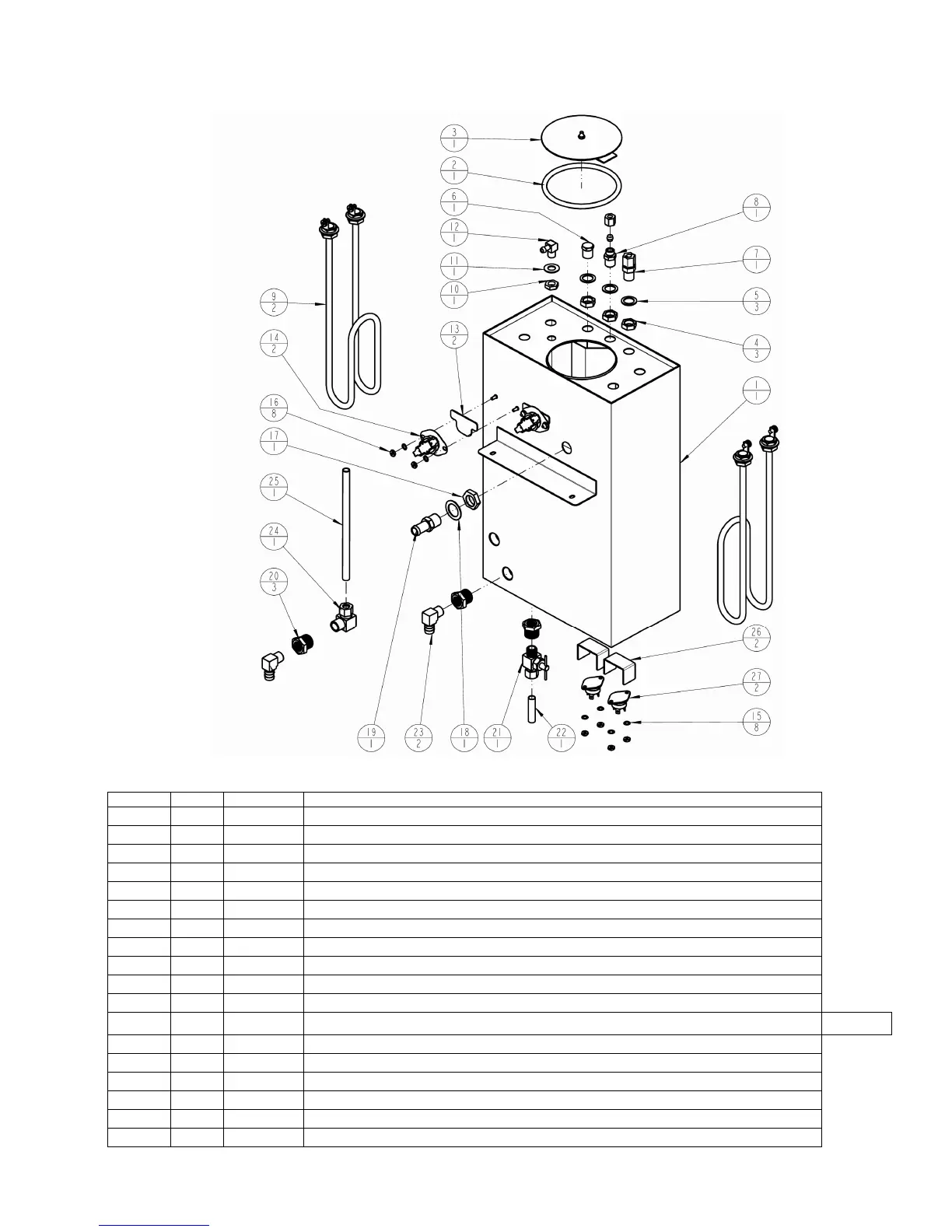

Figure 2 – CBS-2031e / CBS-2031s Tank Assembly
DWG 104028-A
ITEM # QTY PART # DESCRIPTION
1 1 004042 WELDMENT TANK CBS-2031e
2 1 24002 O-RING, TANK COVER
3 1 102013 ASSEMBLY, TANK COVER
4 3 31117 LOCKNUT 1/4 STRAIGHT PIPE THREAD
5 3 83042 WASHER, .875"OD X .562"ID, FLAT
6 1 31081 PLUG, HEX HEAD 1/4" MPT
7 1 25098 FITTING, COMPRESSION MALE CONNECTOR
8 1 31036 FITTING COMPR. MALE CONNECTOR 1/4 TUBE OD X 1/4 MPT
9 2 107025 HEATER ASSY., 1500W/120VAC
9 2 107019 HEATER ASSY., 1700W/120VAC
9 2 107020 HEATER ASSY., 2300W/120VAC
9 2 107021 HEATER ASSY., 3000W/240VAC
EXPORT
220V ONLY
10 1 31116 LOCKNUT 1/8 STRAIGHT PIPE THREAD
11 1 83041 WASHER, .812"OD X .412"ID, FLAT
12 1 31005 FITTING, 90 ELBOW, 1/4 HOSE ID X 1/8 MPT
13 2 03332 BRACKET 2, ONE SHOT THERMOSTAT
14 2 53064 THERMOSTAT, SINGLE SHOT,TRIAC
15 8 83011 WASHER, #6 SCREW SIZE, INTERNAL
