16

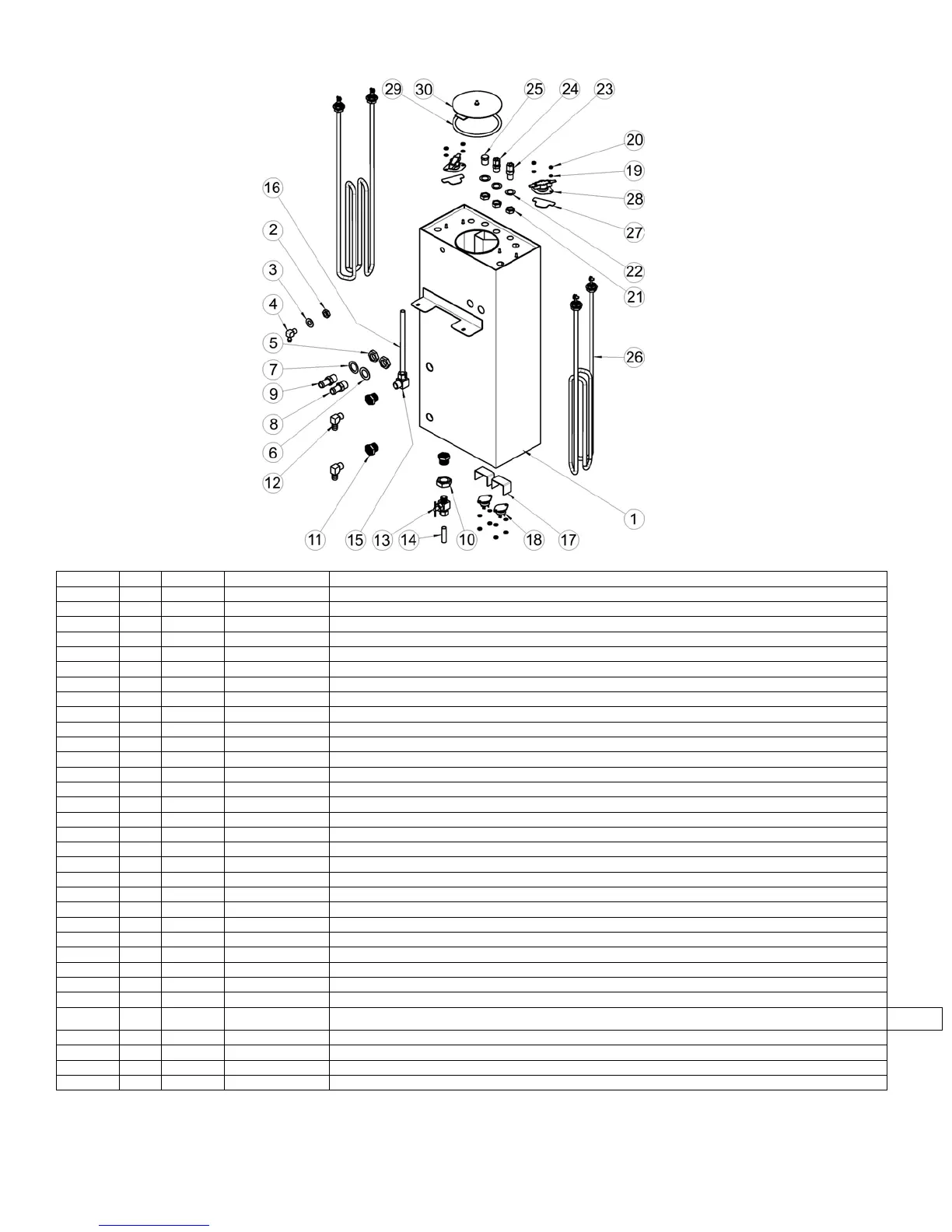

Figure 2 – CBS-2041e Tank Assembly
DWG 104030-A
ITEM # QTY
OLD PART #
PART # DESCRIPTION
1 1 004040 WELDMENT TANK CBS-2041e
2 1
31116
1031.00020.00 LOCKNUT, 1/8 STRAIGHT PIPE THREAD
3 1
83041
1083.00014.00 WASHER, .812"OD X .412"ID, FLAT
4 1
31005
1031.00032.00 FITTING, 90 DEG. ELBOW, 1/4 HOSE ID X 1/8 MPT
5 2
31118
1031.00033.00 LOCKNUT, 3/8 STRAIGHT PIPE THREAD
6 1
83043
1083.00007.00 WASHER, 1.125"OD X 0.688"ID FLAT
7 1 83044 WASHER, 1.125"OD X 0.750"ID, FLA
8 1
31077
1031.00028.00 FITTING, 3/8 HOSE ID X 3/8 MPT
9 1
31071
FITTING, 1/2 HOSE ID X 3/8" MPT
10 1
84007
1084.00022.00 NUT, 3/4-16 HEX JAM (TANK DRAIN, INLET TUBE)
11 3
31021
1031.00029.00 BUSHING, 3/4-16 X 1/4 NPSM, HEX HEAD
12 2
31128
1031.00031.00 FITTING, 90° ELBOW, 3/8 HOSE ID X 1/4 MPT
13 1 25110 VALVE, DRAIN (REQUIRES # 25111 TUBE)
14 1 25111 TUBE, VALVE DRAIN
15 1
31027
1031.00030.00 FITTING, COMPR 90° MALE ELBOW, 3/8 TUBE OD X 1/4 MPT
16 1
13072
1013.00045.00 OUTLET, INSIDE TANK HOT WATER
17 2 003297 SINK, HEAT FOR 40A TRIAC
18 2
59008
1059.00001.00 TRIAC 40A, 600V
19 8
83011
1083.00009.00 WASHER, #6 SCREW SIZE, INTERNAL
20 8
84001
1084.00012.00 NUT, HEX, #6-32 MACHINE SCREW
21 3
31117
1031.00007.00 LOCKNUT, 1/4 STRAIGHT PIPE THREAD
22 3
83042
1083.00006.00 WASHER, .875"OD X .562"ID, FLAT
23 1
25098
1025.00001.00 FITTING, COMPRESSION TUBE
24 1 31036 FITTING COMPR. MALE CONNECTOR 1/4 TUBE OD X 1/4 MPT
25 1 31081 PLUG, HEX HEAD 1/4" MPT
26 2 107027 HEATER ASSY., 1500W/120VAC
26 2 107028 HEATER ASSY., 1700W/120VAC
26 2 107024 HEATER ASSY., 2300W/120VAC
26 2 107021 HEATER ASSY., 3000W/240VAC
EXPORT
ONLY
27 2 003332 BRACKET 2, ONE SHOT THERMOSTAT
28 2
53071
1053.00004.00 THERMOSTAT, SINGLE SHOT, 25 AMP
29 1
24002
1024.00007.00 O-RING, TANK COVER
30 1
102013
1102.00007.00 ASSEMBLY, TANK COVER
