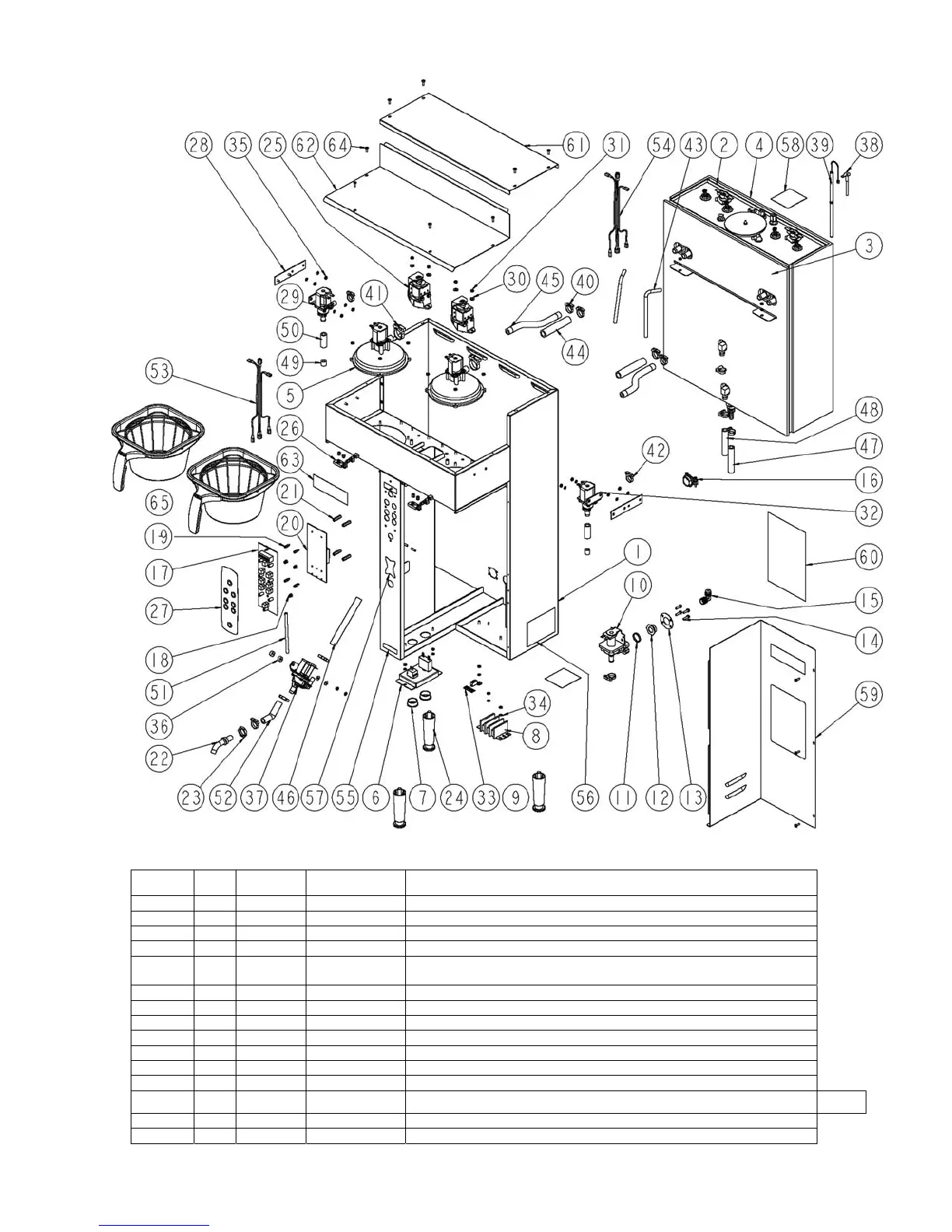

Figure 3 – CBS-2042e Main Assembly
DWG 101193-B
ITEM # QTY
OLD PART
#
PART # DESCRIPTION
1 1 001053
WELDMENT CBS-2042e (For Illustration only, not sold as a commercial part)
2 1 104031 ASSEMBLY, TANK CBS-2042e (SEE FIG. 4)
3 1 22066 INSULATION, TANK FRONT, CBS-2042e
4 1 22067 INSULATION, TANK BACK CBS-2042e
5 2
SEE
FIG.5A/5B
ASSEMBLY, SMALL SPRAY HEAD
6 1
102189
1102.00106.00 ASSEMBLY, POWER BRACKET, CBS-2000e
6 1
52026
1052.00007.00 BREAKER, 5A CIRCUIT
6 1
58054
1058.00014.00 SWITCH, PUSH BUTTON
7 2
86032
1086.00004.00 BUSHING, SNAP, 1" MOUNTING HOLE DIA
8 1 52050 TERMINAL BLOCK
9 1
65002
1065.00002.00 CONNECTOR, COPPER LUG
10 1 57006 FILL VALVE, S-53 120VAC
10 1 57017 FILL VALVE, S-53 220VAC
EXPORT
ONLY
11 1
24012
1024.00020.00 GASKET, S-53 FILL VALVE
12 1
31078
1031.00004.00 FITTING, S-53 FILL VALVE INLET
