Fetco TBS-2111 - Table of Contents

2
TABLE OF CONTENTS
OPERATIONAL DESCRIPTION .................................... 3
BASIC SCREENS .......................................................... 3
Instructions To Access The Programming Menu ........... 5
PROGRAM ..................................................................... 6
GENERAL ....................................................................... 8
INPUTS ........................................................................... 8
HOW TO CALIBRATE THE FLOW RATE ................... 10
OTHER ......................................................................... 13
ERROR CODES ........................................................... 14
Parts Drawings And Wiring Diagrams .......................... 18
Hot Water Faucet Installation Instructions ................... 23
Specifications and Requirements
FETCO TBS-2111 Hot Tea Brewer with Bypass (hot water bypass)
TBS-2111-Capacities & Measurements
Brewer Height
Width
No hot water
faucet
Width
One hot water
faucet
Width
Two hot water
faucets
Depth
Empty
Weight
Filled
Weight
Hot Water Tank
Capacity
TBS-2111
733 mm
29 inch
229 mm
9 inch
292 mm
11.5 inch
356 mm
14 inch
502 mm
20 inch
14.4kg
32 lb
26.3kg
58 lb
11.9 liter
3.1 gallon

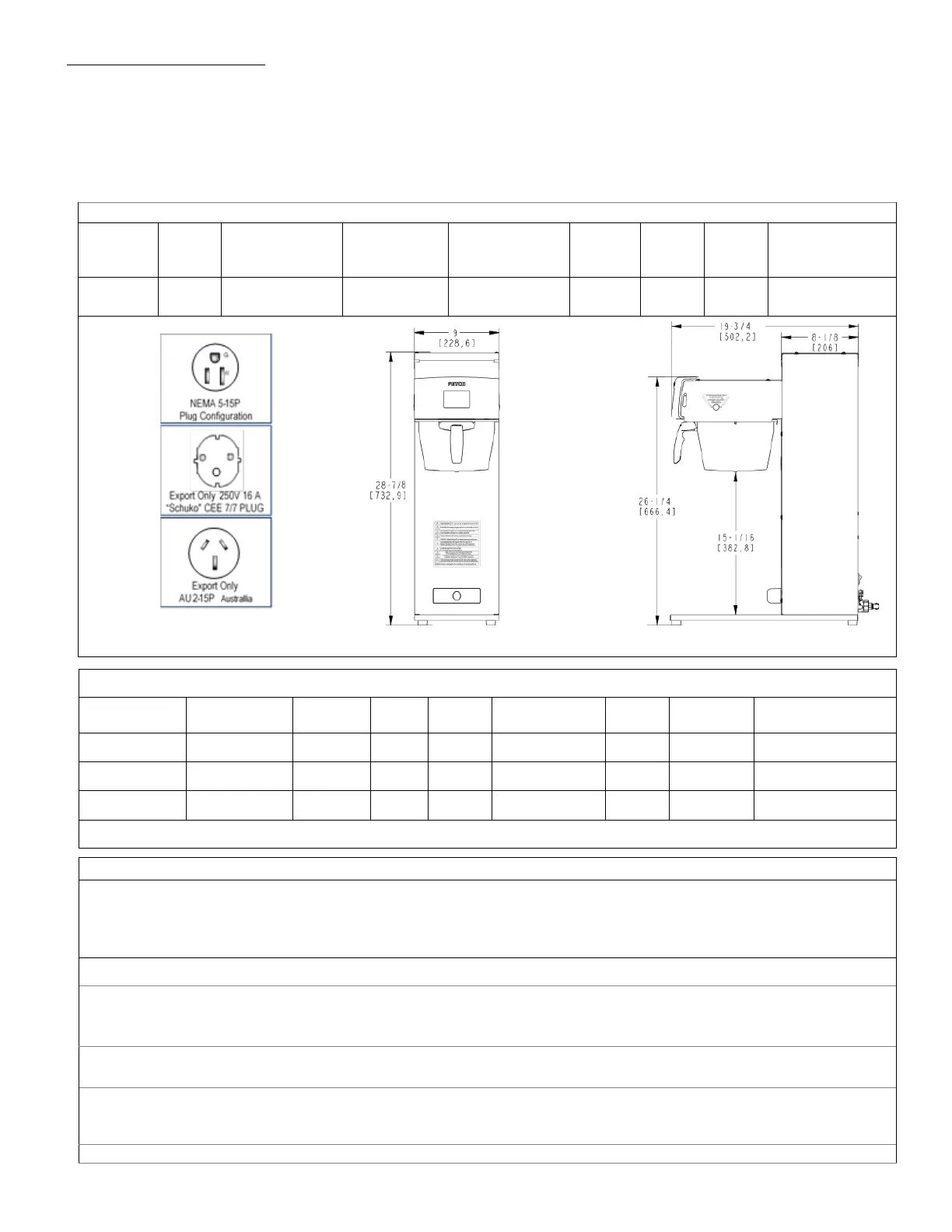

TBS-2111-Dimensions & Utility Connections
Note: dimensions in parenthesis are in millimeters Drawing number 1201.00041.00
TBS-2111-Water Requirements
Water Connection: Inlet: 3/8 inch male flare fitting
Mains Pressure: 0.31-0.517 mPa 0.34MPa/50PSI preferred (45-75 psig ).
Minimum Flow Rate: 5.7 liter/minute (1½ gpm). Optimal water hardness between 125-250 TDS (6-13 grain)
All commercial hot water dispensers to be supplied with filtered water from mains
The following are the factory settings—and ranges of variables that are adjustable:
Brew volume: 6 liter Batch: (default all recipes: 4 liters brew+34% bypass)
RANGE [0.50-6.00 liter BREW] [0-40% BYPASS]
*Brew volume per hour based on factory default of 11:43 minutes/6 liter 30 liters or 8 gallons/hour
Total Brew Cycle-Factory setting: 10:52 minutes [6 minute brew time+1.5 minute drip delay+2minute bypass]
RANGE [1:00-12:00 minute BREW] [0:30-12:00 minute BYPASS DELAY]
Temperature Control—as set by factory: 90°C inside hot water tank (at sea level).
-RANGE User selectable: 77-97°C/170°-207°F
-Brew Temperature may be individually set for each of the eight recipes.
Coffee Filter Size: 15” X 5 ½ ”– standard FETCO # F001
TBS-2111-Electrical Configurations
Configuration
Code
Heater
Configuration
Voltage Phase Wires
Electrical
Connection
KW Amp Draw
Brew
Per hour*
T211151 1 X 1.7kW 100-120 single L, N, G
NEMA 5-15
1.3-1.8 12.3-14.7 4.4 gal/16.5 liters
T211191 1 X 3KW 200-240 single 2+G
Shuko
cord and plug
3.1 10.8-12.9 30 liters/8 gallon
T211192 1 X 2.3KW 200-240 single L,N,PE
Australian
cord and plug
2.5 19.8 30 liters/8 gallon
Please see wiring diagrams located in back pages for installation notes.
