FFC LAF5416 - 5-Line Assembly; Part List

MR25664
20
28
9
47
39
27
26
15
14
10
30
15
14
31
46
42
51
11
1125
7
7
12
1
48
49
22
36
37
46
40
13
13
4
3
18
8
12
6
6
44
17
16
34
33
32
2
2
44
54
55
5053
41
24
50
41
24
23
38
40
46
53
56
56
35
52
5
12
5
12
5
5
49
48
40
13
3
29
45
43
43
45
19
20
21

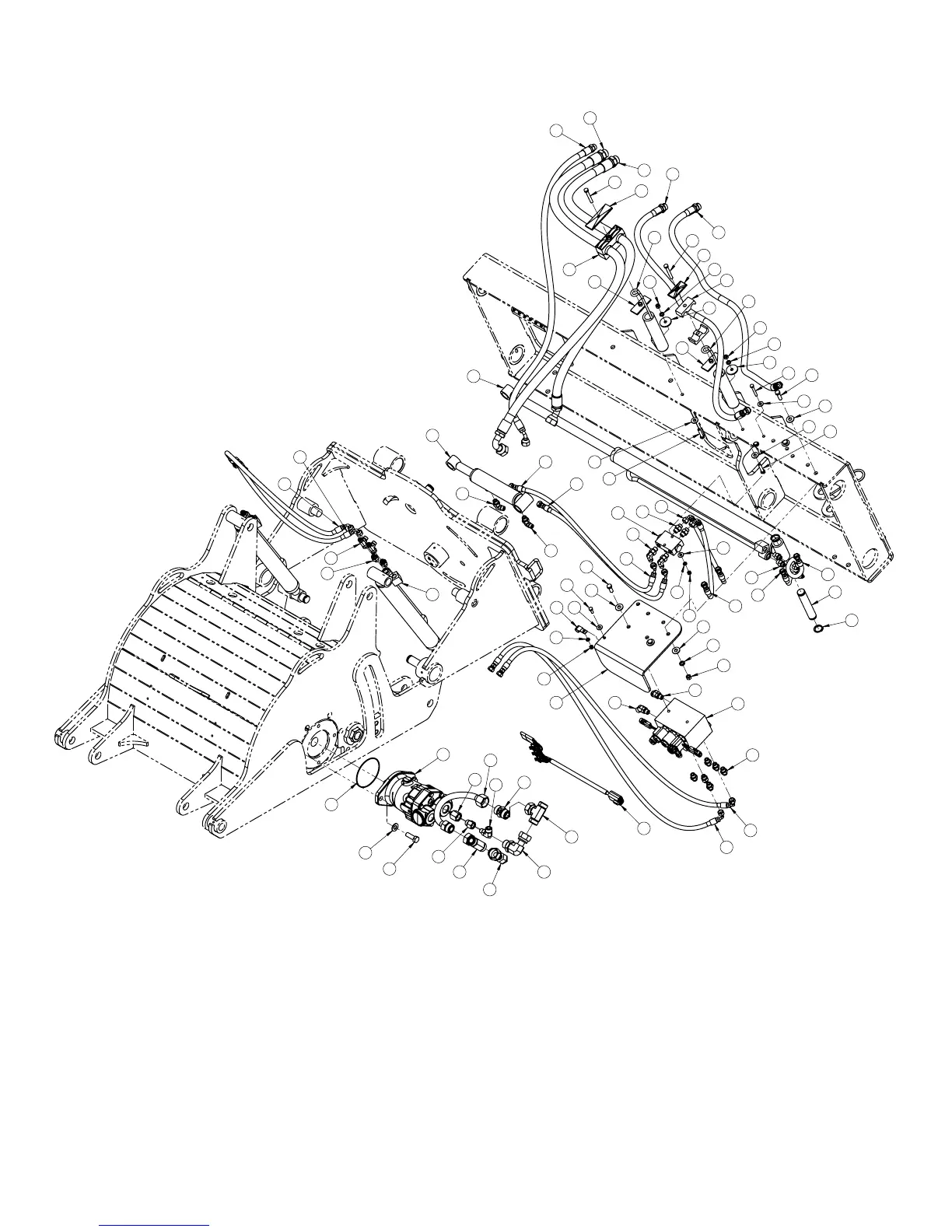

5-LINE ASSEMBLY
16 to 24 inch unit shown
Item Part Qty Description
1. 03-10016 1 Manifold, 5-Line
2. 03-10027 2 Hose, .38 x 87, 6FF-10MB, 100R2
3. 03-10029 1 Hose, .25 x 42.5, 4FF-4FF45, 100R2 (16-24 in)
4. 03-10030 1 Hose, .25 x 47, 4FF-4FF45, 100R2 (16-24 in)
5. 03-10031 4 Hose, .25 x 19, 4FF-4FF45, 100R2
6. 03-10032 2 Hose, .25 x 29, 4FF-4FF45, 100R2 (16-24 in)
7. 03-10033 2 Hose, .25 x 61, 4FF-4FF45, 100R2 (16-24 in)
03-10033 6 Hose, .25 x 61, 4FF-4FF45, 100R2 (30-36 in)
8. 03-10036 2 Tee, 4MF-4FFS-4MF
