FFC LAF5416 - Mounting Assembly; Diagram and Part List

MR25664
30

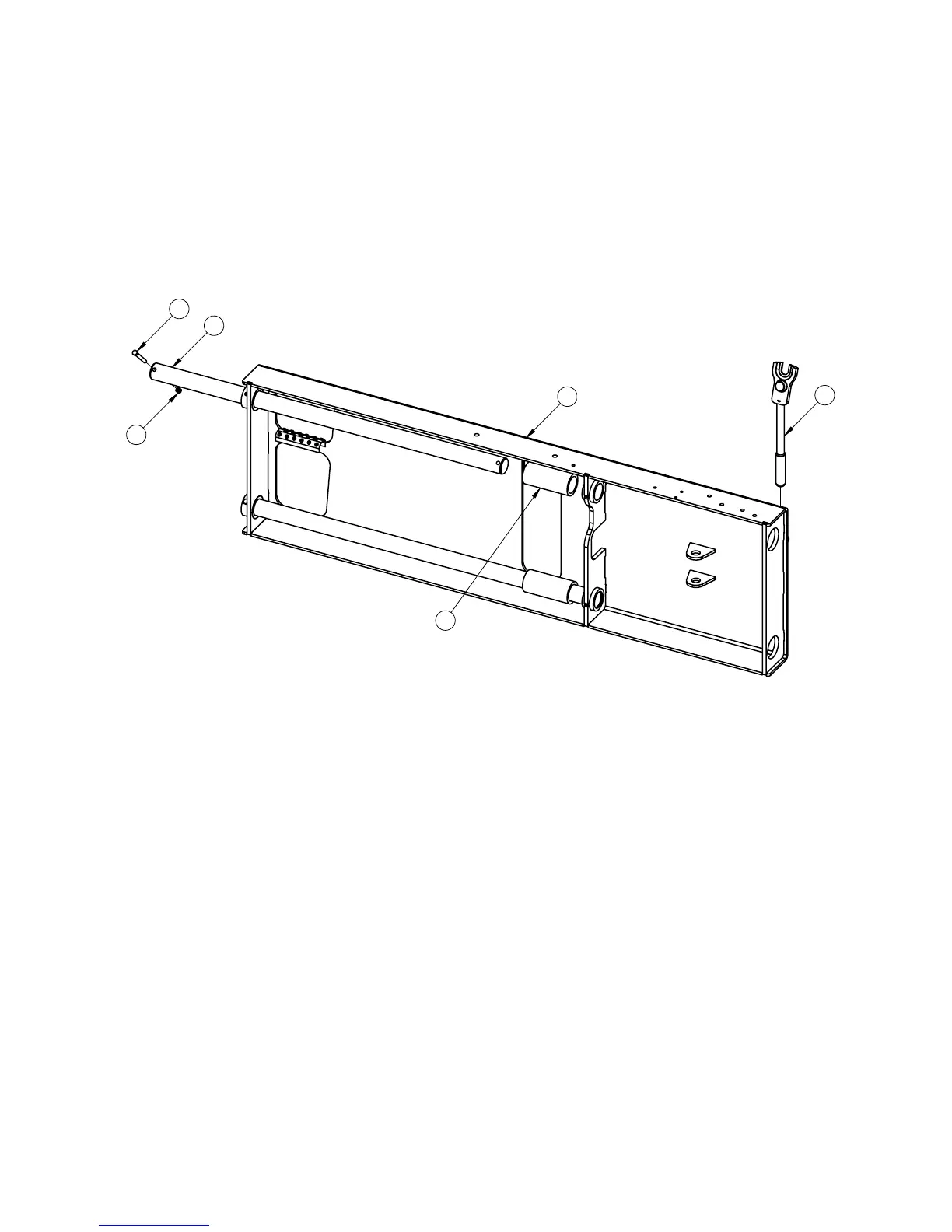

MOUNTING ASSEMBLY
5
7
1
6
2
3 4
Item Part Qty Description
1. 13-50392 2 Rod, 2 X 47.25
2. 13-50445 2 Tube, Spacer, 2.75 x 2.063 x 6 (36 inch only)
3. LAF9319-0022 1 Weld, Plate, Universal (12 to 24 inches
13-50434 1 Weld, Plate, Universal (30 to 36 inches
5. LAF9326 1 Tool, Pick Removal
6. P100614 2 Bolt, Hex, 3/8 x 3 1/2, Gr5
7. RHW7203 2 Nut, Lock, Gr5, .38-16
