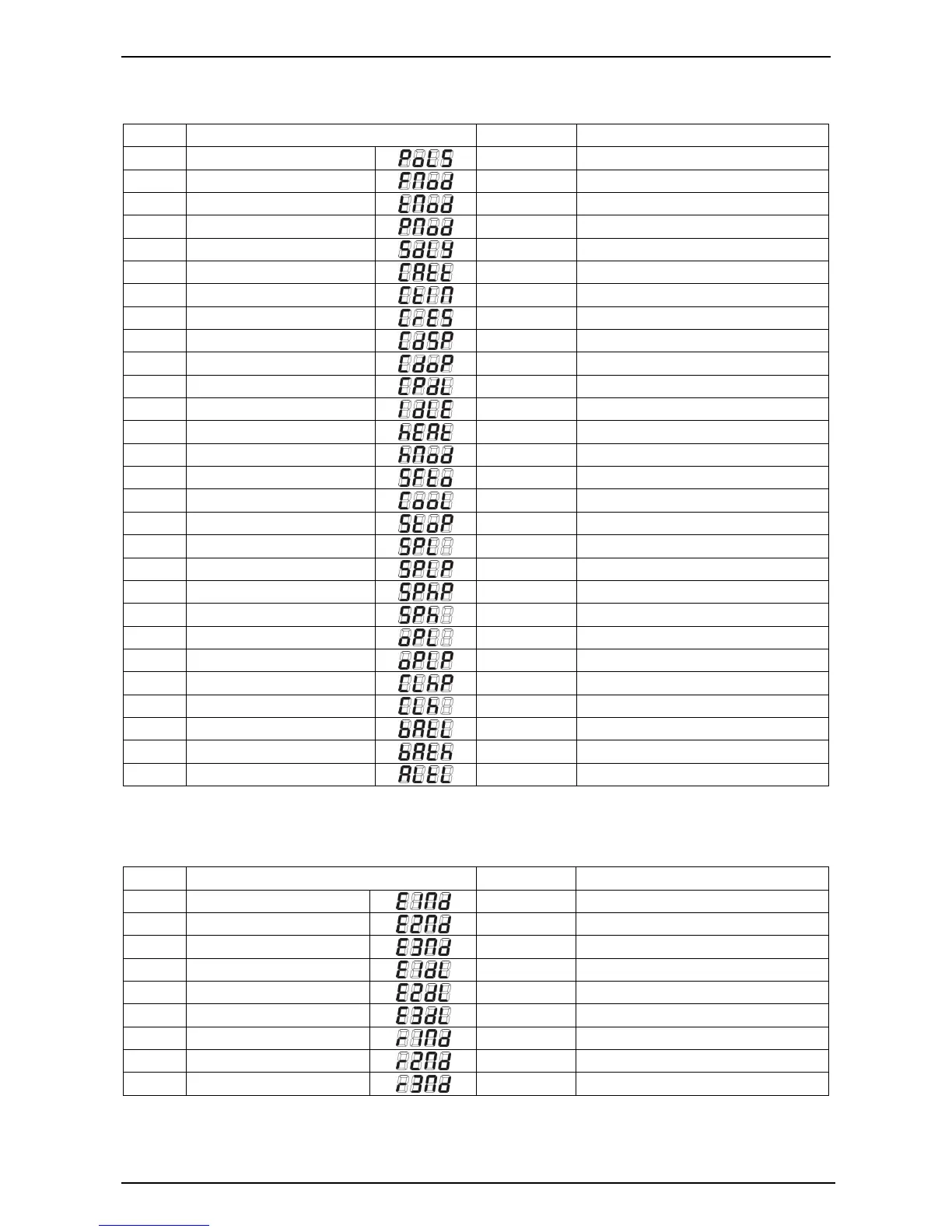

8.3 Engine Parameters:
NO. Items Preset Value Range
3.1 Pair of poles 2 1-4
3.2 Fuel mode 0 0-1 / 0(NC) / 1 (NO)
3.3 T-sensor type 12 0-15 / 0 (not used)
3.4 P-sensor type 11 0-15 / 0 (not used)
3.5 Start delay 10S 0-300 S
3.6 Crank attempt 3 times 1-10 times
3.7 Crank time 5S 0-30 S
3.8 Crank rest 10S 0-300 S
3.9 Crank cutout RPM 300RPM 1-9999 RPM
3.10 Crank cutout Oil-P 1.0BAR
0.1-150.0BAR/999.9(not set)
3.11 cutout P-delay 0 1-60 S / 0(not set)
3.12 Idle delay 0 0-9999 S
3.13 Preheat delay 3S 0-300 S
3.14 Preheat mode 1 1-3
3.15 Safety-on delay 10S 0-600 S
3.16 Cool down delay 300S 0-600 S
3.17 Stop delay 20S 0-60 S
3.18 Under SP Alarm 0RPM 0-9999 RPM / 0 (not set)
3.19 Under SP preALM 1440RPM 0-9999 RPM / 0 (not set)
3.20 Over SP preALM 1600RPM 1-9999 RPM / 9999 (not set)
3.21 Over SP Alarm 1710RPM 1-9999 RPM / 9999 (not set)
3.22 Oil-P low Alarm 1.1BAR 0-45.0 BAR
3.23 Oil-P low preALM 1.4BAR 0-45.0 BAR
3.24 Coolant preALM
92℃ 70-320℃ / 9999 (not set)
3.25 Coolant Alarm
100℃ 70-320℃ / 9999 (not set)
3.26 Batt. Undervolt. 8.0V 1.0-25.0V / 0 (not set)
3.27 Batt. overvolt. 28.0V 1.0-35.0V / 99.9 (not set)
3.28 charge V Pre-alarm 8.0V 1.0-25.0V / 0 (not set)
8.4 Configurable Inputs and Outputs:
NO. Items Preset Value Range
4.1 Configurable input 1 8 0-12 (define code as 8.7)
4.2 Configurable input 2 7 0-12 (define code as 8.7)
4.3 Configurable input 3 12 0-12 (define code as 8.7)
4.4 Input 1 delay 2S 0-60 S
4.5 Input 2 delay 2S 0-60 S
4.6 Input 3 delay 2S 0-60 S
4.7 Configurable relay 1 2 0-80 (define code as 8.8)
4.8 Configurable relay 2 3 0-80 (define code as 8.8)
4.9 Configurable relay 3 5 0-80 (define code as 8.8)
NOTE: D-Input Delay is only for 1 to 4 codes in 8.7.
