Fiamma COMPASS dualBoiler Series User Manual

ENGLISH
Compass Espresso Coffee Machine by fiamma – Operating Manual 25
1. Rotative knob for steam wand;
2. Keyboard for group;
3. Group temperature control (PID 3 TEMP);
4. Manometer for pump pressure;
5. Steam wand;
6. Removable grid and inferior tray;
7. Group;
8. Display;
9. Grid for cups;
10. Signal light for heating elements in the water/ steam boiler;
11. Main switsch ON/OFF;
12. Signal light water pump;
13. Steam wand;
14. On/off button for cup warming area

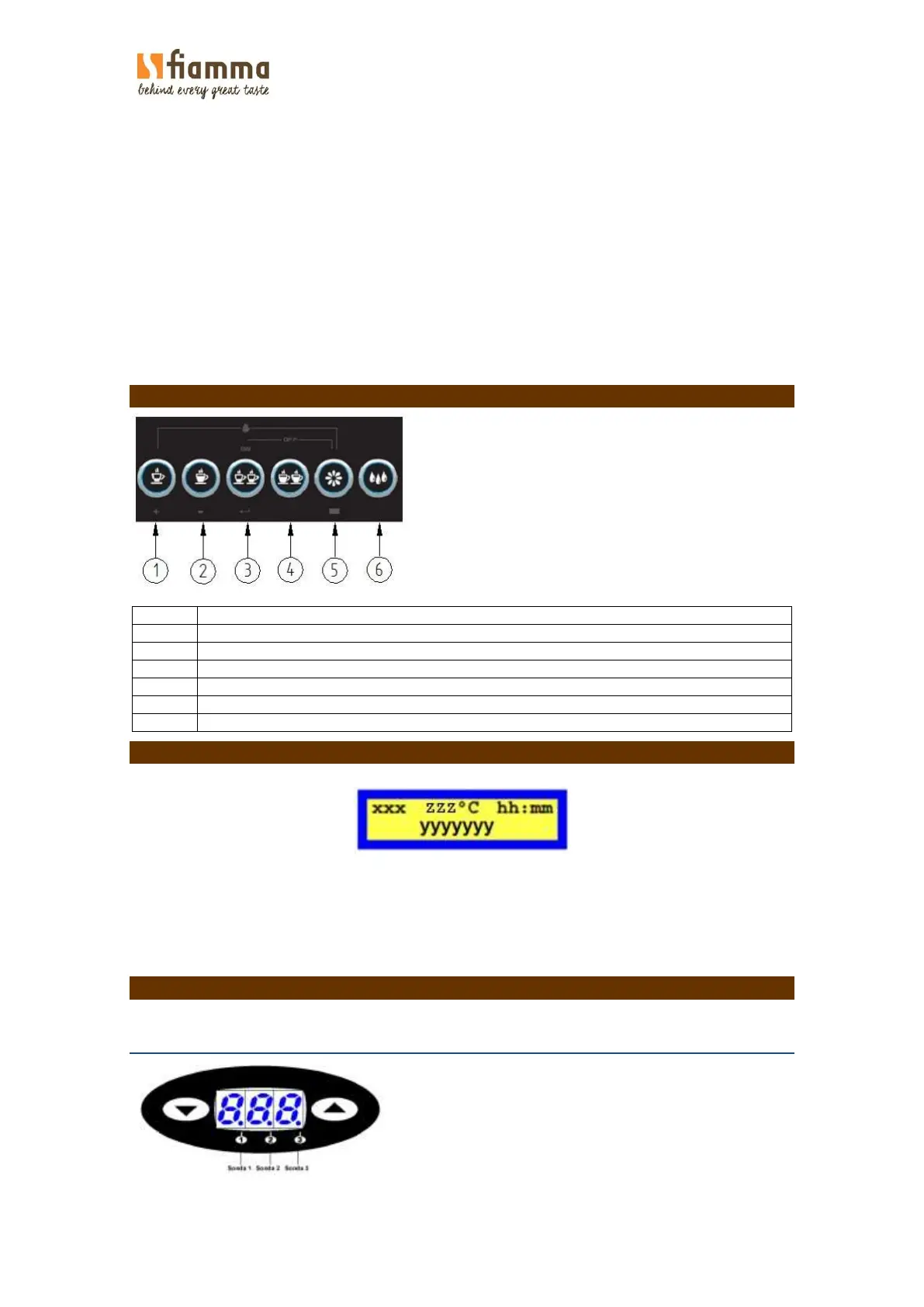

3.1. The Keyboard
Key
Function
Key 1
Key for production of single espresso ( + )
Key 2
Key for production of double espresso ( - )
Key 3
Key for production of single espresso (ENTER )
Key 4
Key for production of double espresso
Key 5
Continuous/ Programming mode (MENU)
Key 6
Key for production of portion of hot water
3.2. The Display
The LED display of the Compass machines has two lines with 16 characters.
Where
xxx = Temperature in the water/ steam boiler;
zzz = Temperature in the coffee boiler;
hh = hours (0-23);
mm = minutes;
yyyyyyyy = brand or adverstising message.
3.3. PID Displays
The smaller displays control the temperature of the groups and the coffee water boiler.
3.3.1. COMPASS 2
 Probe 1 – temperature of group 1 (leftmost);
 Probe 2 – temperature of group 2 (rightmost);
