Fiamma F45s Series Installation And Use Instructions

8
®
®
d
d
Es ist immer ratsam, die 3 Halteplatten vom Montage satz bei der
Installation der Markise zu benutzen, was aber unentbehrlich für
eine sichere Befestigung der längeren Markisen (ab 400) ist.
We recommend to use always the 3 brackets when installing the
awning: this is absolutely necessary for a safe installation of
longer awnings (from 400).
Il est toujours préférable d’utiliser les 3 étriers pour fixer le store.
Cela devient indispensable pour les stores d’une longueur de 400
et plus.
Es aconsejable usar siempre los 3 estribos incluidos en la
confección para montar el toldo, en cambio es absolutamente
necesario usarlos en caso de toldos largos (de 400).
È sempre consigliabile utilizzare le 3 staffe incluse nella
confezione per installare il tendalino, è assolutamente necessario
invece per il fissaggio sicuro dei tendalini lunghi (da 400 in poi).
DE
EN
FR
ES
IT
d
d
=
=

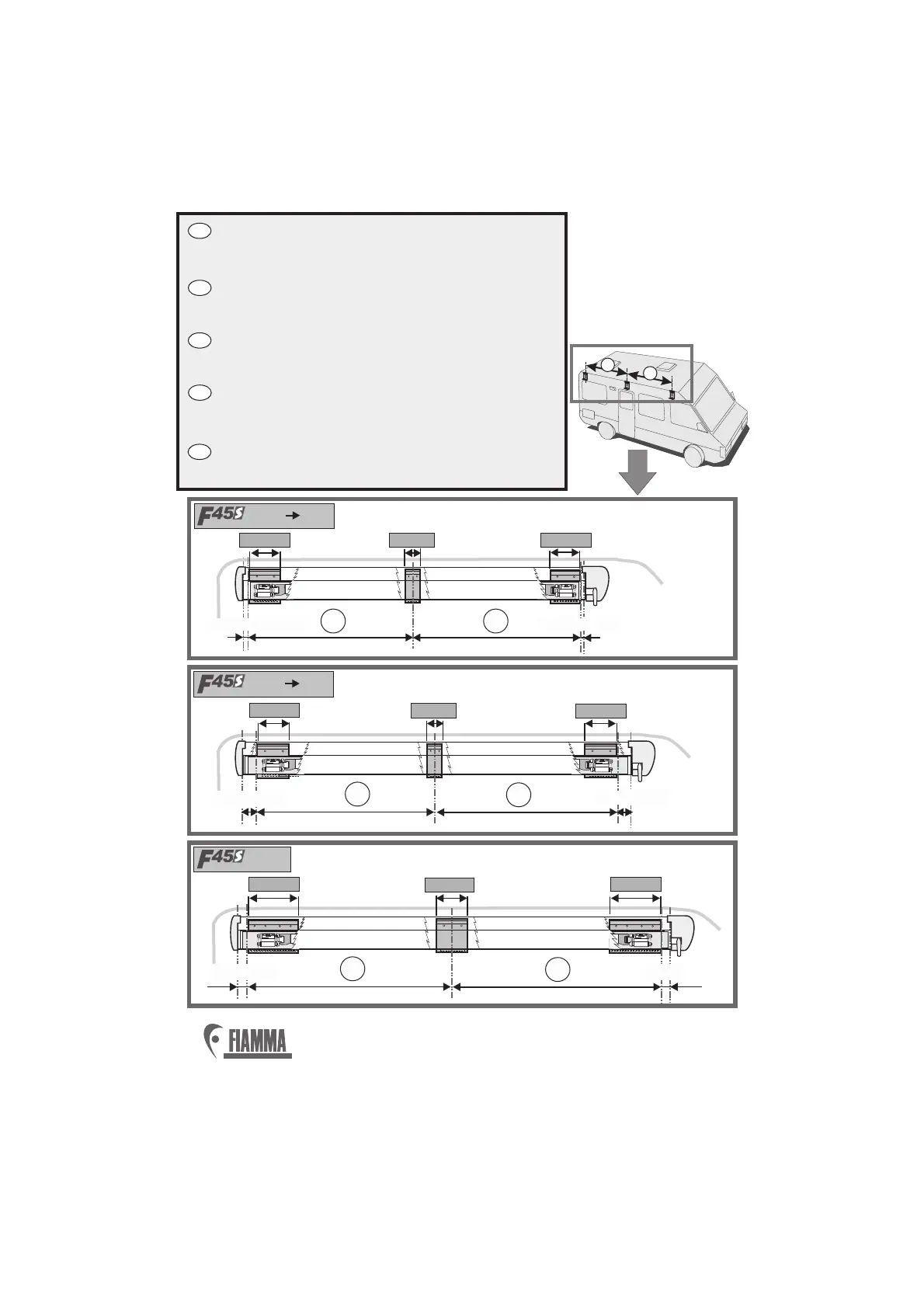

120 mm
80 mm
PATENTP ENDINGPATENTP ENDING
DUAL SHOCK-ABSORBERDUAL SHOCK-ABSORBER
PATENTP ENDINGPATENTP ENDING
DUAL SHOCK-ABSORBERDUAL SHOCK-ABSORBER
120 mm
250 300
52-92 mm
52-92 mm
d
d
==
PATENTP ENDINGPATENTP ENDING
DUAL SHOCK-ABSORBERDUAL SHOCK-ABSORBER
120 mm
80 mm
120 mm
350 400
PATENTP ENDING
DUAL SHOCK-ABSORBERDUAL SHOCK-ABSORBER
150-300 mm
150-300 mm
d
d
==
PATENTP ENDINGPATENTP ENDING
DUAL SHOCK-ABSORBERDUAL SHOCK-ABSORBER
PATENTP ENDINGPATENTP ENDING
DUAL SHOCK-ABSORBERDUAL SHOCK-ABSORBER
400 mm
120 mm
400 mm
450
30-240 mm30-240 mm
“More information https://www.caravansplus.com.au"

Fiamma F45s Series Specifications

General

Type	Awning
Series	F45s
Color Options (Housing)	Polar White, Titanium, Deep Black
Material	Aluminum
Operation	Manual
Mounting	Roof or sidewall
Length Options	1.9m to 4.5m
Extension	Up to 2.5m
Optional Accessories	LED lighting kit, Tie Down Kit
Wind Resistance	Beaufort scale 6 (resistance depends on correct installation and tensioning)
