D
2 x
E
4 x
FIAMMASTORE
16

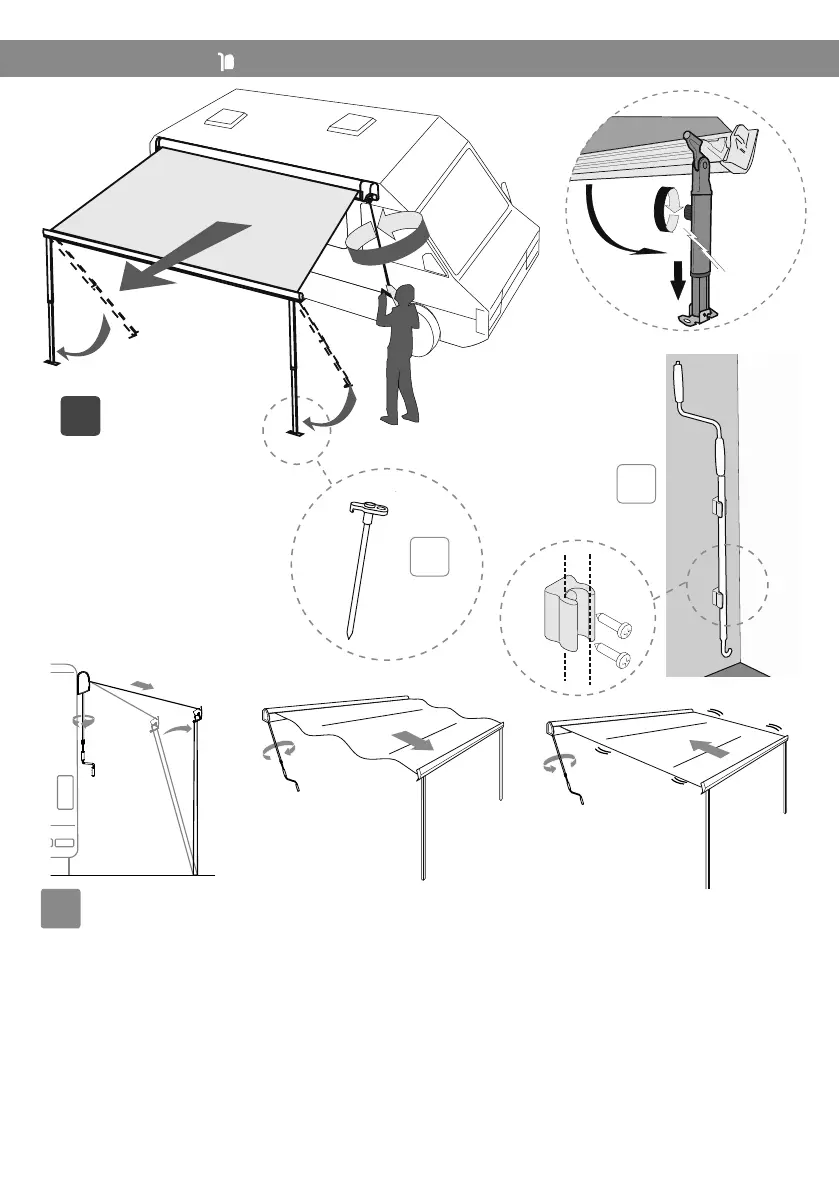

In order to avoid unnecessary strain on the awning as well as on the vehicle side, we suggest to take out the legs
at about 1m from the opening.
Grasp the leg near its hinge-joint and pull it toward you. Unhook and lower the leg.
After unrolling the awning completely, adjust the legs at the chosen height.
To avoid the awning being lifted up by an unexpected gust of wind, it is necessary to secure the legs to the ground
with the provided hooks. For safety’s sake, we strongly advise you to anchor the awning with the Tie-Down
(Optional).
The foot for leg has been created to prevent its incorrect placing inside the housing of the lead bar during the
closing phase of the awning. With an incorrect placing of the foot the lead bar will not close completely; therefore it
is advisable to always place it properly into the housing with the base turned to the lead bar
(2)
.
EN
23
