Manual Climate Controls — If Equipped
The Manual Climate Controls consist of a series of rotary
dials with inner push buttons.
1. Blower Control
Rotate this control to regulate the amount of air forced
through the ventilation system in any mode. The blower
speed increases as you move the control clockwise from
the “0” (OFF) position.
2. Temperature Control
Rotate this control to regulate the temperature of the air
inside the passenger compartment. Rotating the dial
counter-clockwise into the blue area of the scale indicates
cooler temperatures, while rotating clockwise into the red
area indicates warmer temperatures. Rotating the Tem-
perature Control all the way counter-clockwise results in
turning on the MAX A/C feature.
3. Mode Control
Rotate this control to change the system between Modes
(Panel, Bi-Level, Floor, Mix, Defrost).

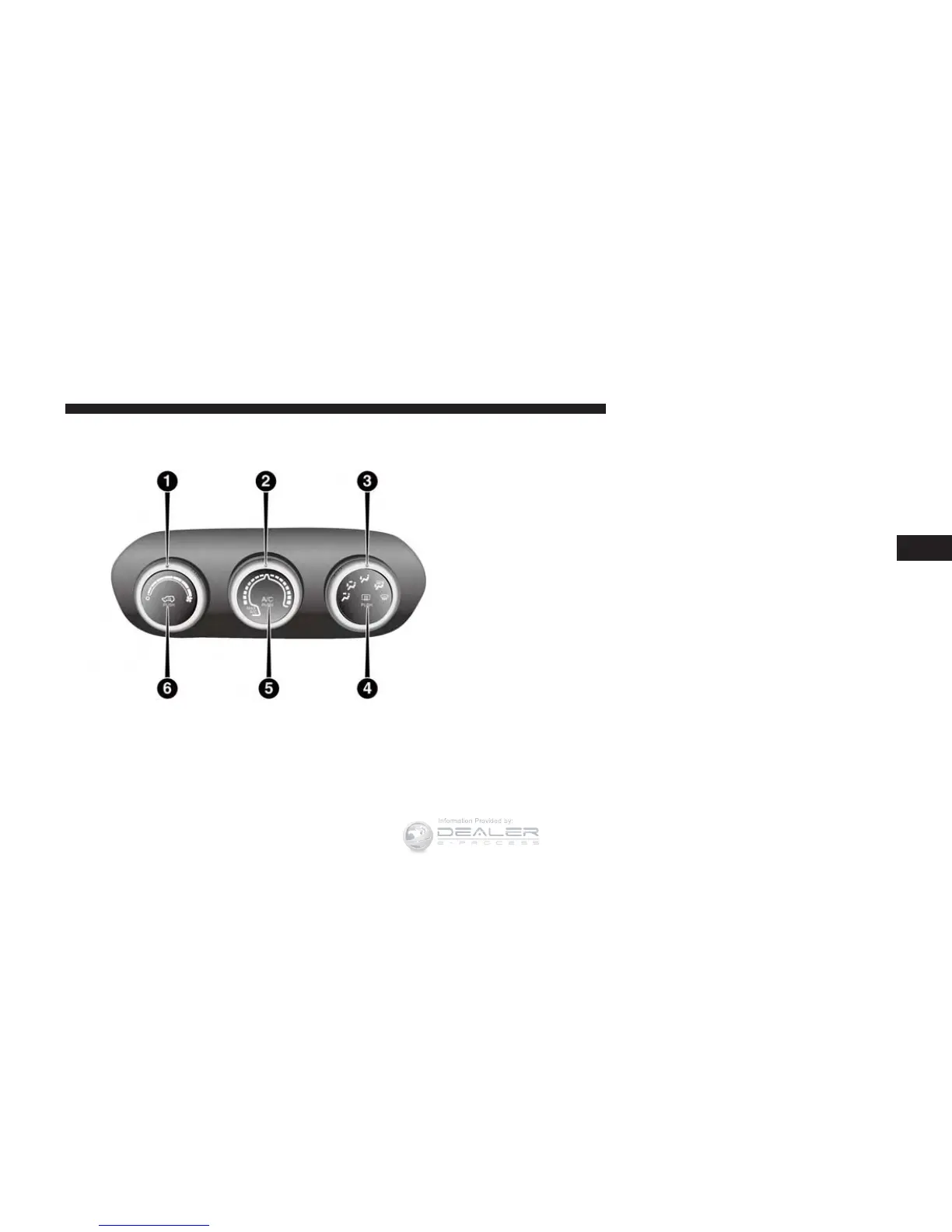

Manual Temperature Controls (MTC)
4
GETTING TO KNOW YOUR VEHICLE 109
