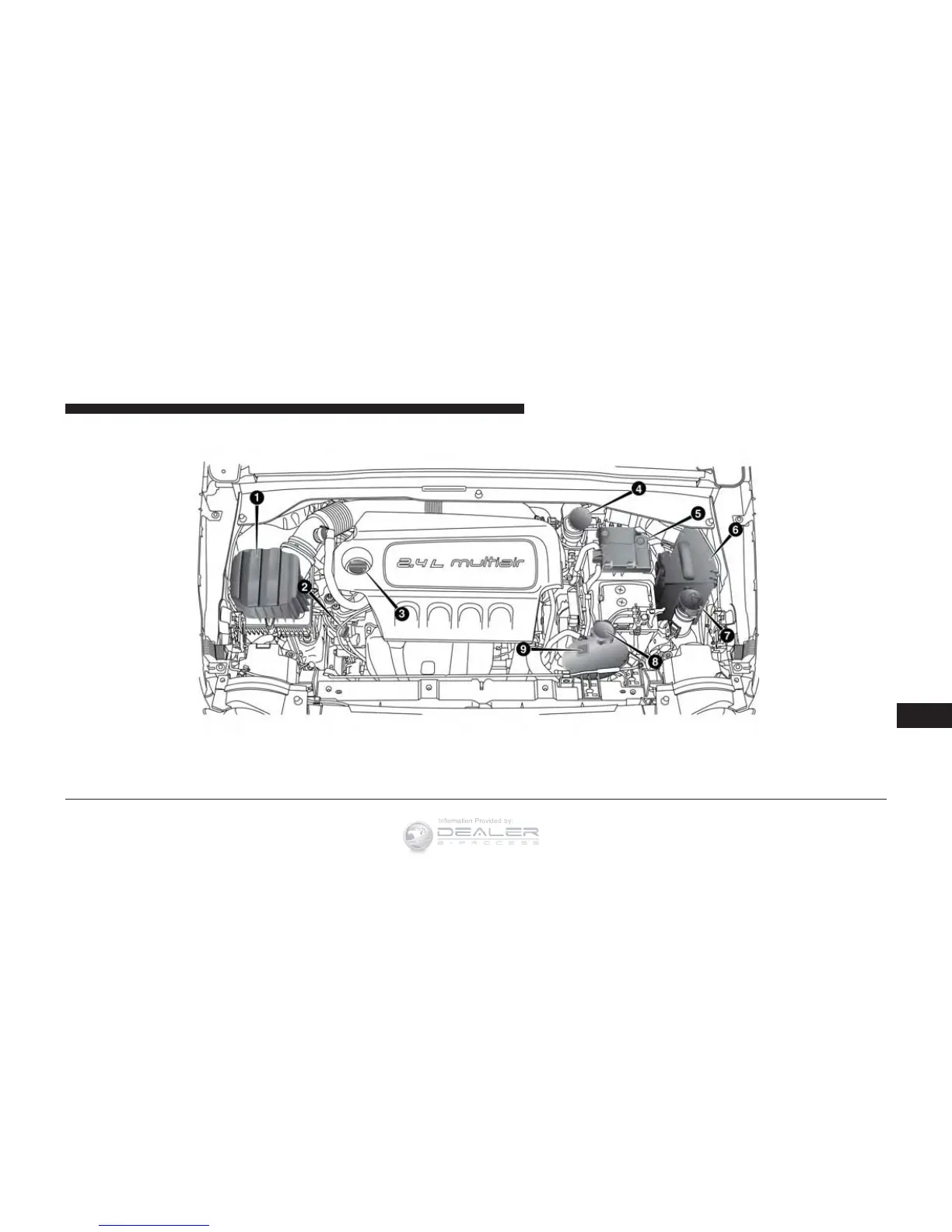

ENGINE COMPARTMENT — 2.4L ENGINE
1 — Engine Air Cleaner Filter 4 — Brake Fluid Reservoir 7 — Washer Fluid Reservoir
2 — Engine Oil Dipstick 5 — Battery 8 — Coolant Pressure Cap
3 — Engine Oil Fill Cap 6 — Power Distribution Center (Fuses) 9 — Coolant Pressure Bottle
9
MAINTAINING AND CARING FOR YOUR VEHICLE 447
