NOTE:
• The vehicle will initiate the charging cycle automatically when all the conditions are
satisfied.
• The vehicle battery gauge will show the pattern for charging.
• Do not use an extension cord with
the EVSE.
• To remove the EVSE push the button
on the connector and pull firmly to
remove it from the vehicle’s charge
receptacle.
8. When charging is complete, or the ve-
hicle needs to be unplugged, remove the
EVSE by pushing the button on the
charge connector and pull firmly to re-
move it from the charge receptacle.
9. Close the charge receptacle door.
NOTE:
• In the event of an error in the charging
process the AC power to the vehicle will stop and a red indicator will illuminate on
the EVSE.
• Keep the door for the charge receptacle closed when not in use.

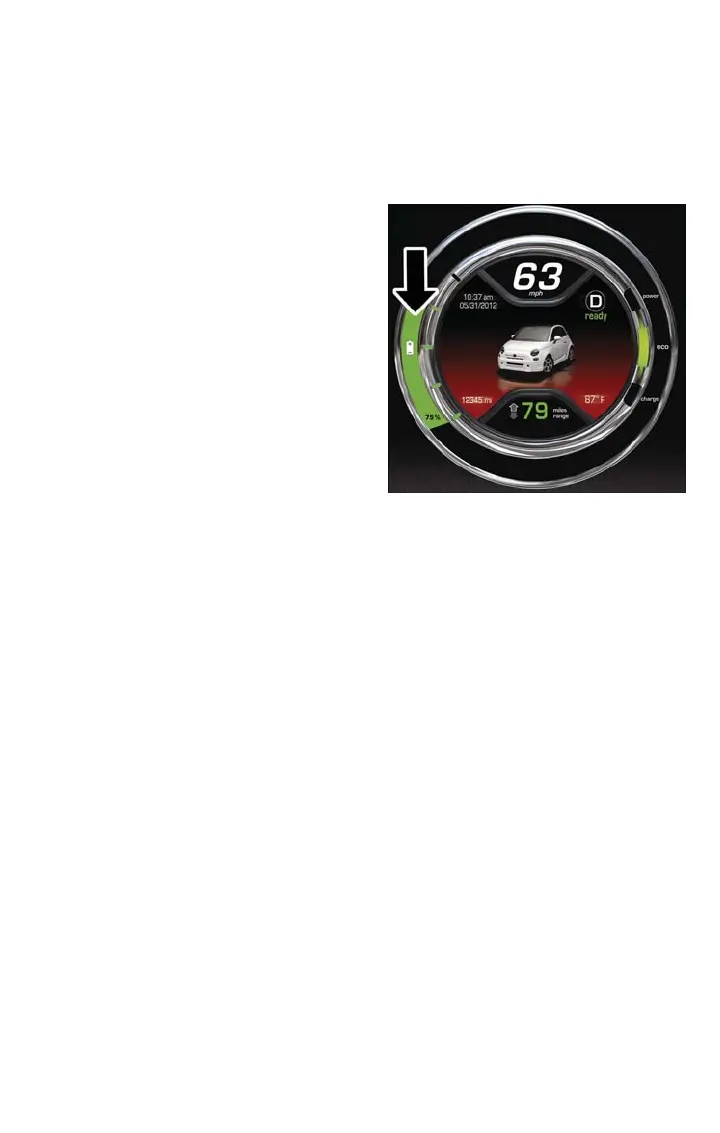

Battery Gauge
GETTING STARTED
17
