CHARGING THE HIGH VOLTAGE BATTERY
1. Put the vehicle in PARK.
2. Turn the ignition to the OFF position.
3. Remove the Level 1 EVSE from its storage bin by lifting the rear cargo cover.
4. Uncoil the entire length of the EVSE
(charge cord).
5. Plug the EVSE into a standard 120V AC
outlet that is properly grounded. It is
recommended that the EVSE is con-
nected to an AC outlet on a circuit
which is not electrically loaded by other
devices. Extension cords may not be
used.
NOTE:
All of the EVSE LED’s illuminate green.
6. Open the charge receptacle door.
NOTE:
The charge receptacle door is locked
whenever the vehicle is locked. Unlock the doors to unlock the charge receptacle door
for charging.
7. Plug the EVSE into the charge receptacle. Push the EVSE in firmly until it is completely
engaged (if not completely engaged the vehicle may not charge).

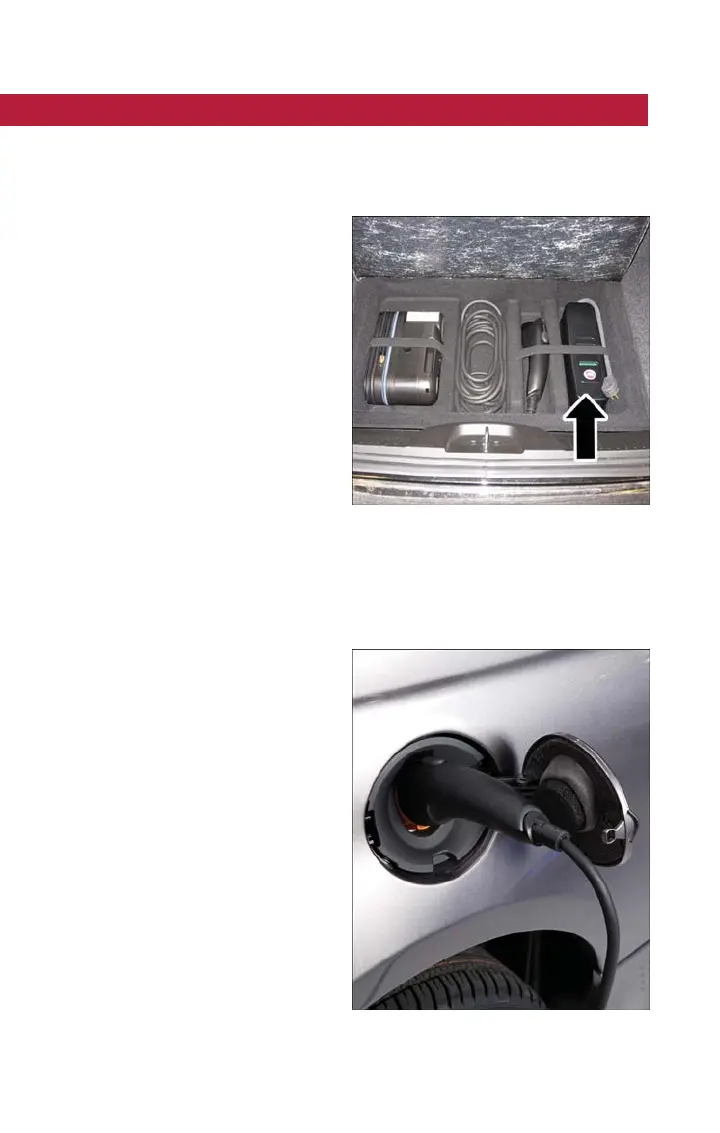

Electric Vehicle Supply Equipment (EVSE)
Charge Receptacle
GETTING STARTED
