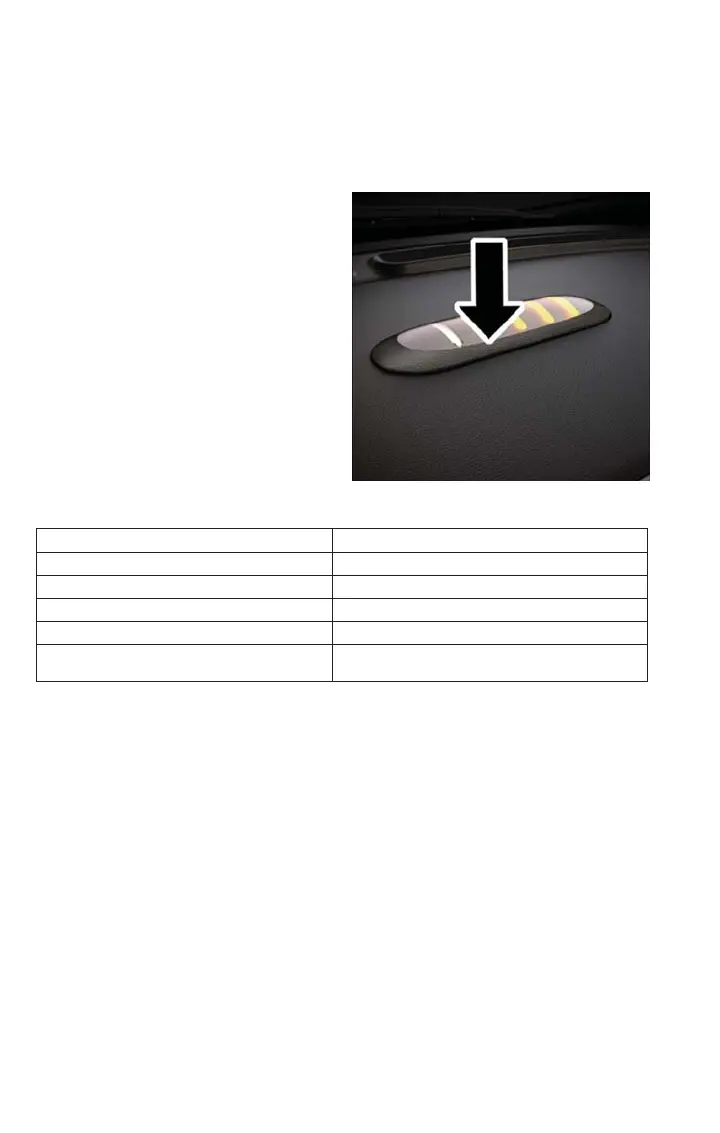

Instrument Panel State Of Charge Indicator
• In addition to the instrument cluster the vehicle is also equipped with a State Of
Charge indicator. The indicator is made up of five lights that are mounted to the cen-
ter of the instrument panel.
• The State Of Charge indicator repre-
sents the current state of charge for the
high voltage battery. The indicator lights
quickly identify the battery state of
charge while the vehicle is being
charged. Each light represents an incre-
mental 20% level of charge. Solid and
blinking lights indicate charge status simi-
lar to a mobile device.
NOTE:
In the event of an error in the charging
process the outer two lights will blink.
Number Of Indicator Lights Illuminated Percent Of Battery Charge
1 Light 0 – 20%
2 Lights 21 – 40%
3 Lights 41 – 60%
4 Lights 61 – 80%
5 Lights 81 – 100%
State Of Charge Indicator
GETTING STARTED
18
