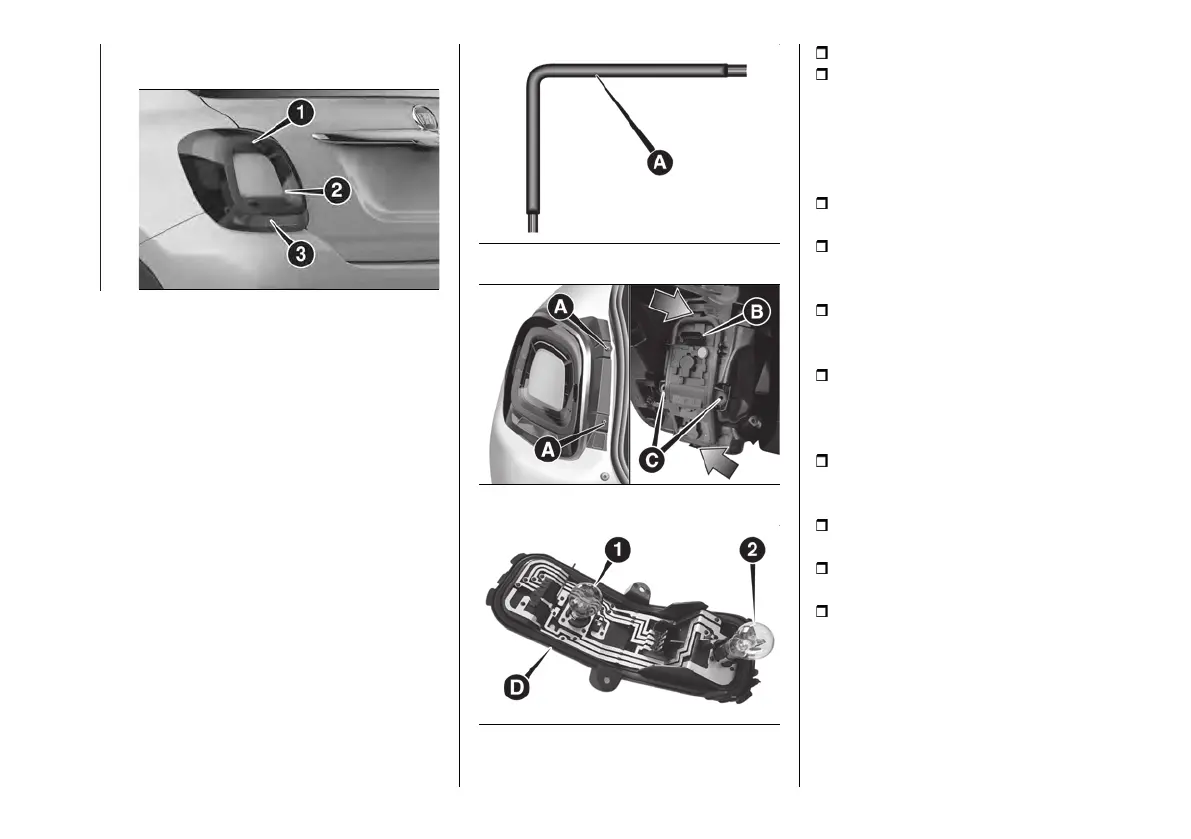

Rear bulb position
126 F1B0696
1. Tail lights/Brake lights 2. Direction
indicator 3. Rear fog light (left light) -
Reversing light (right light)
Tail lights
The tail lights are LED-type. For
replacing these bulbs, contact a Fiat
Dealership.
Brake lights
The brake lights are LED-type. For
replacing these bulbs, contact a Fiat
Dealership.
Rear fog lights, reversing light, rear
direction indicators
To replace the bulbs, proceed as
follows:
127 F1B0022C
128 F1B0723
129 F1B0724
open the tailgate;
using the tool (A) fig. 127 provided
(located in the on-board document
pouch), undo the two screws (A)
fig. 128, then release the light cluster
from the respective pin fasteners
pulling it carefully;
disconnect the connector (B), then
undo the two screws (C);
release the tabs indicated by the
arrows and extract the bulb holder
assembly (D) fig. 129;
identify the bulb to be replaced (1
Direction indicator - 2 Rear fog light or
Reversing light);
all bulbs are "bayonet-fitted"; to
replace them, press slightly and turn at
the same time: anticlockwise to extract;
clockwise to insert;
reposition the bulb holder assembly
(D) correctly in the headlight body;
proceed until you hear the tabs click;
tighten the two screws (C) fig. 128
and reconnect the connector (B);
refit the lens by screwing the two
screws (A) completely;
close the tailgate.
Third brake lights
The third brake lights are LED-based.
To replace them, contact a Fiat
Dealership.
