Number plate lights - Versions with
halogen bulbs
(where provided)
To replace the bulbs, proceed as
follows:

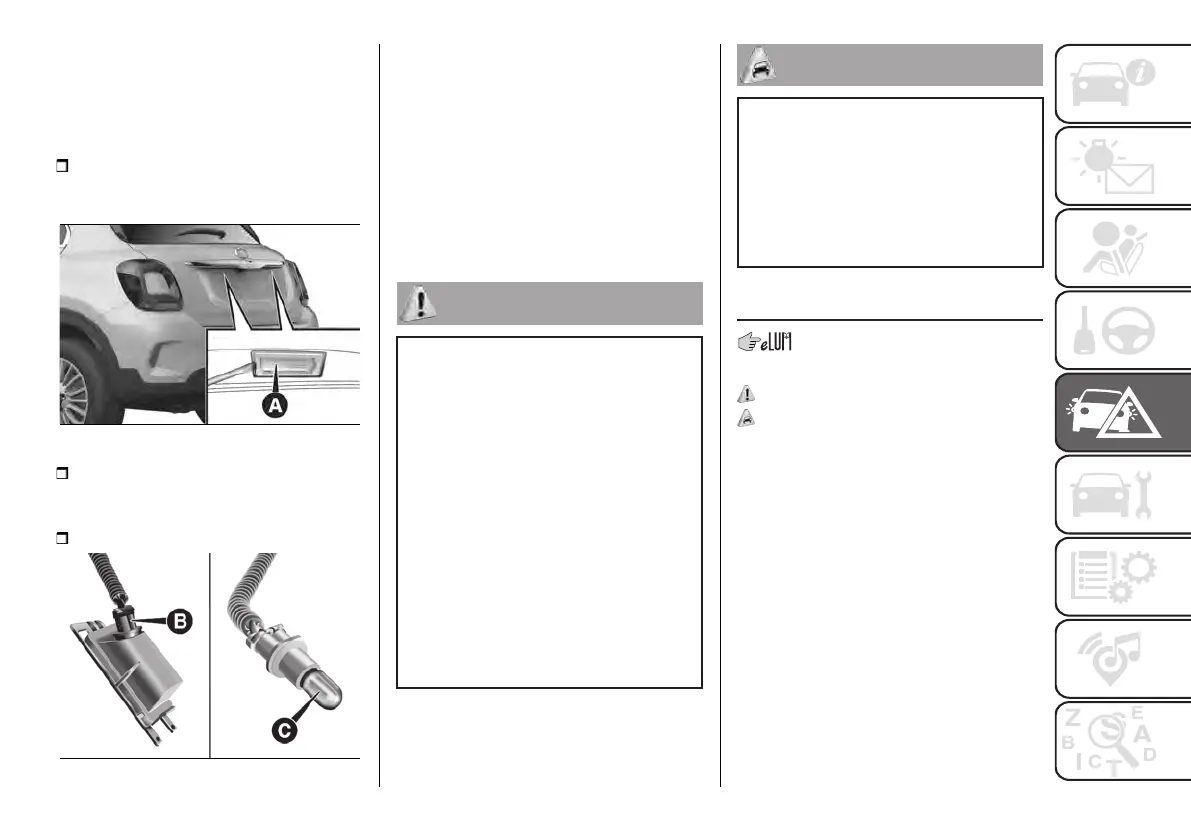

using the screwdriver provided,
remove the lenses (A) fig. 130 working
in the point shown;
130 F1B0669
turn the bulb holder assembly (B)
fig. 131 anticlockwise, extract bulb C
and replace it.
finally, refit the lenses.
131 F1B0154C
NOTE Before removing the lens unit,
put a protection (e.g. cloth) on the tip of
the screwdriver, in order not to damage
the lens itself.
Number plate lights - Versions with
LED lights
(where provided)
For replacing these bulbs, contact a
Fiat Dealership.
WARNING
141) Before replacing the bulb, wait for the
exhaust ducts to cool down: DANGER OF
SCALDING!
142) Modifications or repairs to the electric
system that are not carried out properly
or do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
143) Halogen bulbs contain pressurised
gas, in the case of breakage they may
burst causing glass fragments to be
projected outwards.
144) Only replace the light bulbs when the
engine is off and in a position that does
not interfere with traffic and lets you safely
replace them (see the description in the
“Replacement” paragraph). Also ensure
that the engine is cold, to prevent the risk
of burns.
IMPORTANT
72) Halogen bulbs must be handled
holding the metallic part only. Touching
the transparent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even reduce the lifespan
of the bulb. In the event of accidental
contact, wipe the bulb with a cloth
moistened with alcohol and let the bulb
dry.
REPLACING FUSES
GENERAL INFORMATION
145) 146) 147) 148)
73) 74)
Fuses protect the electrical system:
they intervene (blow) in the event of
a failure or improper action on the
system.
Fuse extracting pliers
To replace a fuse, use the pliers
hooked to the side of the engine
compartment fuse box cover (see
fig. 132).
The tongs have two different ends,
specifically designed to remove the
different types of fuses present in the
car.
Pick the tongs from the upper tabs,
press them and extract the tongs by
