IN AN EMERGENCY
152
pulling them upwards. After use, put
the tongs back in their housing by
picking the upper tabs, pressing them
and pushing until you hear the clip.

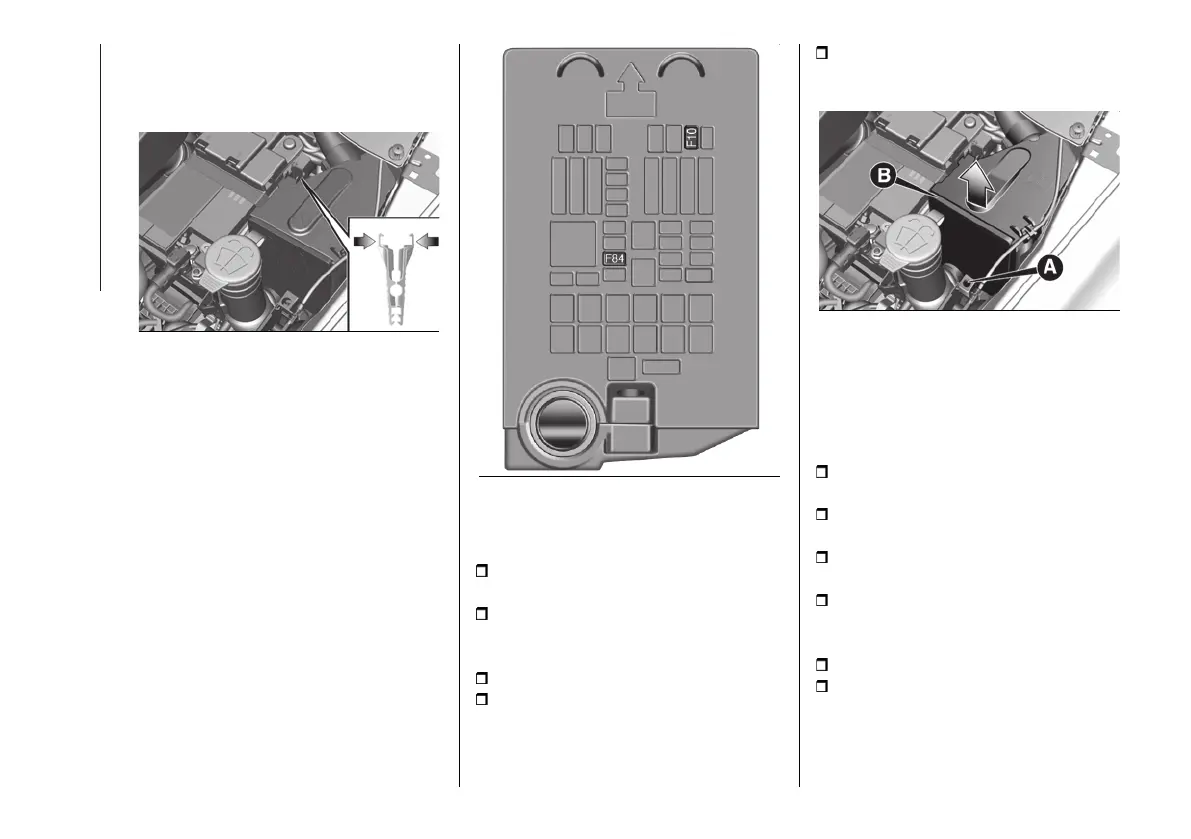

132 F1B0187C
FUSE LOCATION
Fuses are grouped together in the
fuseboxes located in the engine
compartment, under the dashboard
and inside the boot.
ENGINE COMPARTMENT
FUSEBOX
The fuse box is located by the side of
the battery fig. 133.
133 F1B0191C
To access the fuses, proceed as
follows:
fully tighten screw (A) fig. 134, using
the screwdriver provided;
at the same time slowly rotate the
screw anticlockwise, until resistance is
encountered (do not overtighten);
slowly release the screw;
opening is indicated by the entire
screw head coming out of its housing;
remove cover (B), sliding it upwards
on the side guides, as indicated in the
figure.
134 F1B0190C
The number identifying the electrical
component corresponding to each fuse
is shown on the cover.
Once the fuse has been replaced,
proceed as follows:
correctly refit the cover (B) in the side
guides of the casing;
slide it down completely from the
top;
fully tighten screw (A), using the
screwdriver provided;
at the same time slowly rotate the
screw clockwise, until resistance is
encountered (do not overtighten);
slowly release the screw;
closure is indicated by the securing
of the entire screw head in its housing.
