MULTIMEDIA
254
DASHBOARD
196 F1B0764

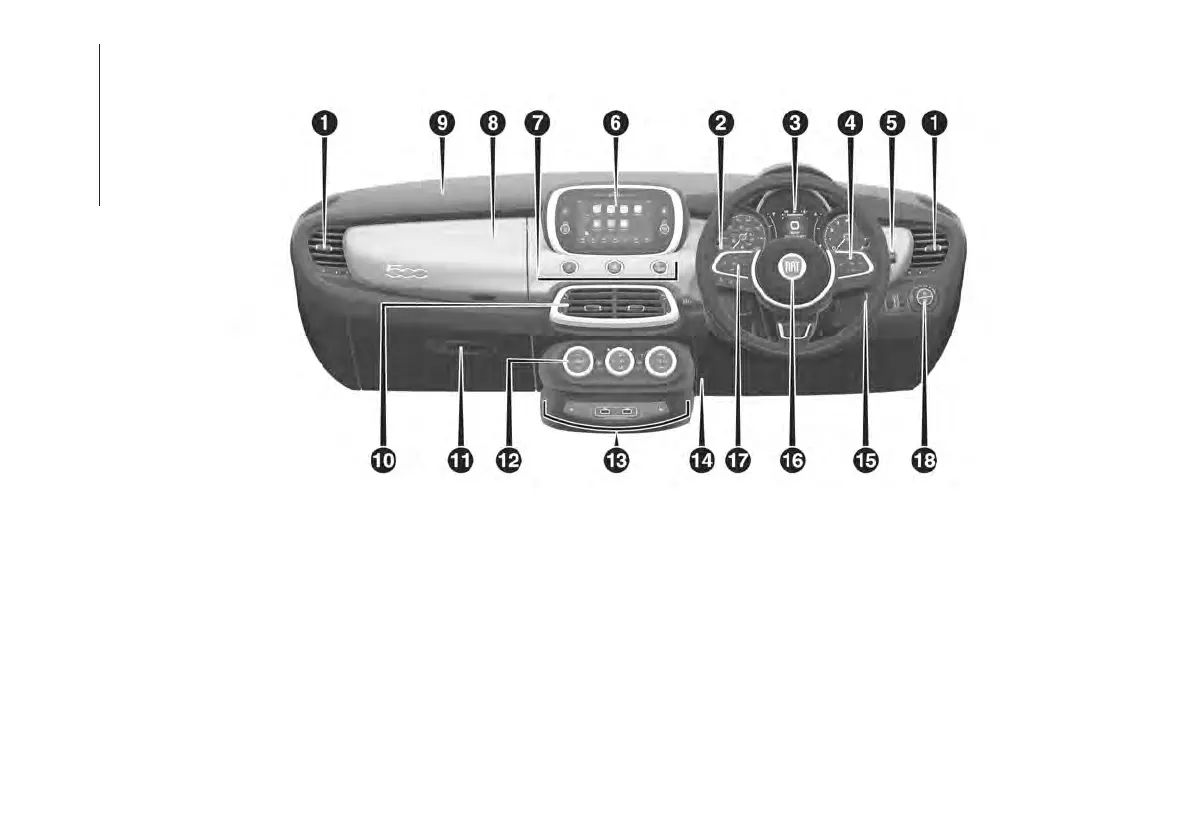

1. Adjustable side air diffusers 2. Left stalk: direction indicators, main beam headlights, flashing, Lane change function 3.
Instrument panel 4. Controls on the steering wheel: Cruise Control, Speed Limiter 5. Right stalk: windscreen wiper/washer,
rear window wiper/washer, rain sensor sensitivity level setting 6. Uconnect™ 7. Start&Stop, hazard lights, passenger airbag
LED status 8. Refrigerated upper storage compartment (for versions/markets, where provided) 9. Passenger front airbag 10.
Adjustable central air diffusers 11. Lower compartment box 12. Climate controls 13. Buttons on central console: seat heater,
Park Assist system, USB port (plus one second USB port, for versions/markets, where provided) 14. Knee bag 15. Ignition
device (key or button) 16. Driver front airbag 17. Steering wheel controls: display menu, trip computer, multimedia, telephone,
voice recognition 18. Control panel: light switch, headlight adjuster
