9.4 Transformer/rectifier (EBL 119)
Functions The transformer/rectifier has the following functions:
z The transformer/rectifier charges the living area battery. The transformer/
rectifier charges the starter battery with a float charge only.
z The transformer/rectifier monitors the voltage in the living area battery.
z The transformer/rectifier distributes the current to the 12 V circuits and
secures them. Devices with a maximum of 10 A can be connected to the
sockets.
z The transformer/rectifier provides connections for a solar charge regulator,
an auxiliary charging unit, as well as other control and monitoring functions.
Z Do not cover the ventilation slots. Danger of overheating!
Z Depending on the model, not all slots for the fuses are occupied.
Z Deviating from the default assignment, the following fuse values are
inserted:
"Basic light / step": 20 A
"Reserve 3": 10 A (fuse for USB socket)
Z Further information can be obtained in the manufacturer's instruction
manual.

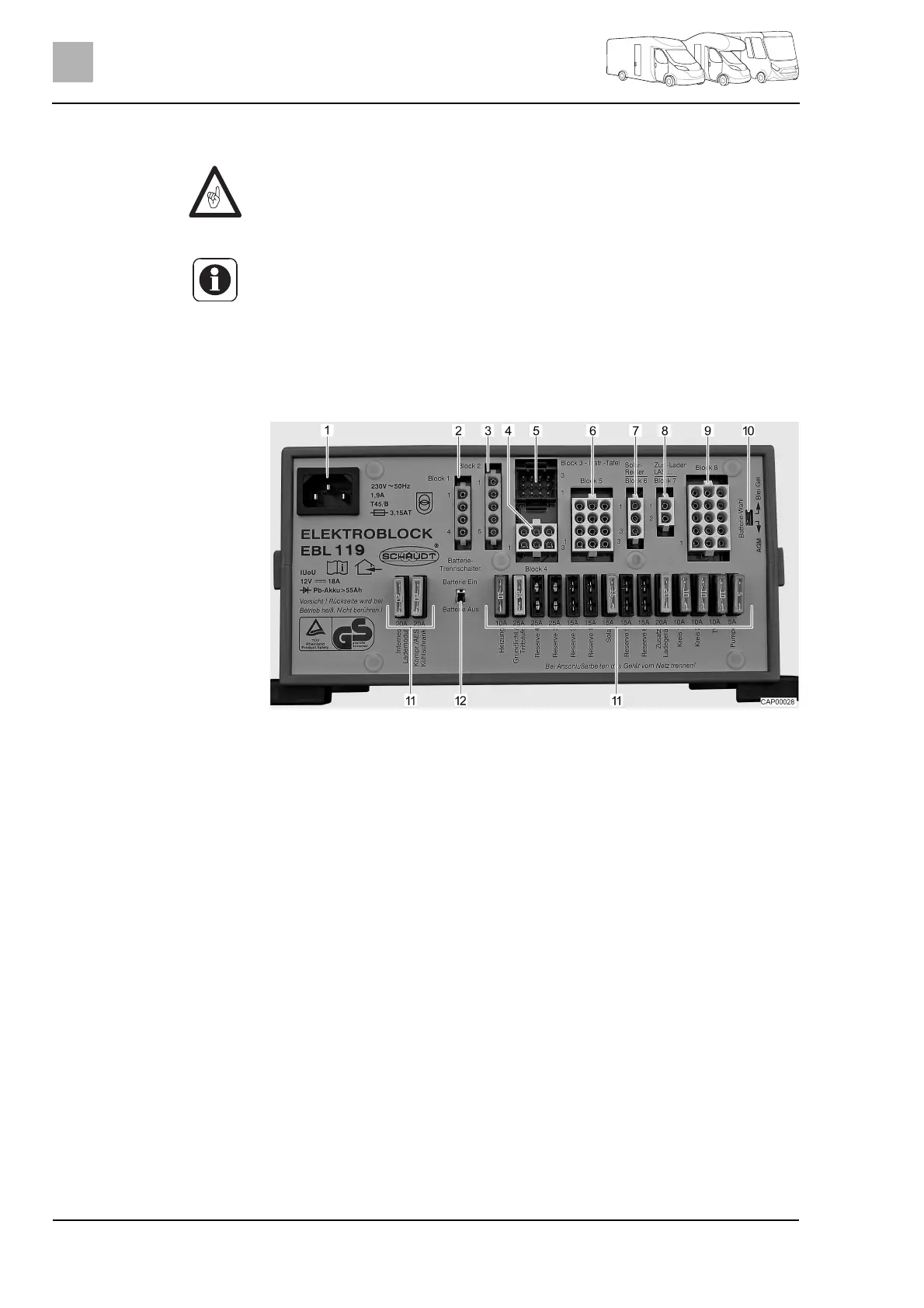

Fig. 68 Transformer/rectifier (EBL 119)
1 Main supply socket 240 V~
2 Output: Block 1 - refrigerator
3 Input: Block 2 - control lines
4 Output: Block 4 - heater, safety/drainage valve, basic light (lighting in the entrance
area), entrance step
5 Output: Block 3 - panel
6 Output: Block 5 - solar cell (if fitted), spare 2, spare 3, spare 4
7 Output: Block 6 - solar charge regulator (if fitted)
8 Output: Block 7 - auxiliary charging unit
9 Output: Block 8 - consumer circuit 1, consumer circuit 2, 12 V socket, water pump,
spare 1, spare 5, spare 6
10 Battery selector switch (lead-gel/AGM)
11 Fuses
12 Battery cut-off switch ("Batterie Ein/Aus" (battery On/Off))
