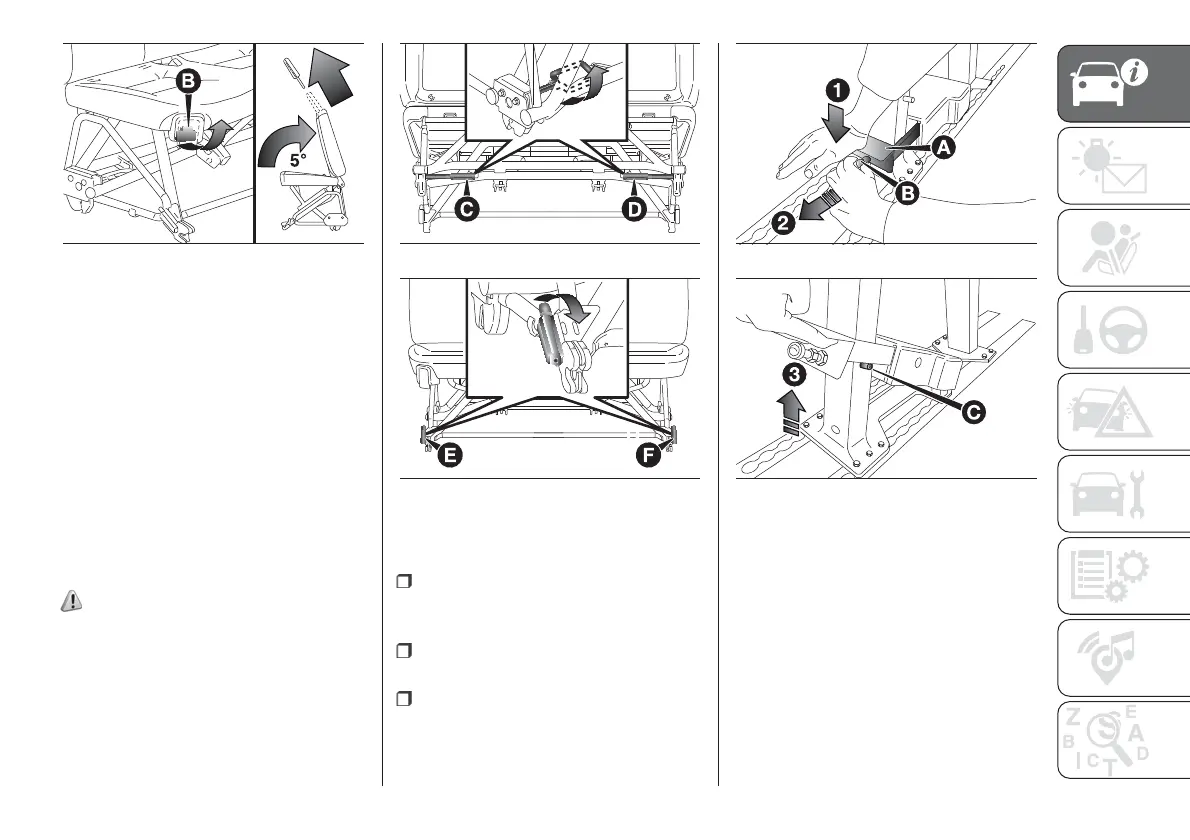

Proceed as follows to remove the
bench:
– from the stacked position, operate
the levers C and D fig. 24, rotating
them forward (as specified on the
adhesive label on the lower
crossmember);
– lift seat base forward;
– bring the seat to an upright position;
– from the vertical position, operate
the levers E and F fig. 25, rotating them
upwards;
– raise the bench from the floor and
remove it.
25)
FLEX FLOOR REAR SEAT
To release the seat, proceed as follows:
operate the rear release lever A fig.
26 to to aid releasing the safety catch
underneath it (movement 1);
pull the black knob B fig. 26
(movement 2);
lift the lever A (movement 3), just
above the slide lock C fig. 27 (on the
side) to ensure that the system is held
up during the operations.
When the base has been locked, it will
be possible to move the seat by
accompanying it with both hands to
move it forwards or backwards fig. 28.
It will also be possible to disassemble
it by pulling it at the points in which
its catches are free with respect to the
holes in the tracks; in that position
(easily found by sliding the base a little
and simultaneously pulling it out) the
seat can easily be removed fig. 29.
23
F1A0036
24
F1A0037
25
F1A0038
26
F1A0388
27
F1A0389
