COMBI VERSIONS
Easy Entry position

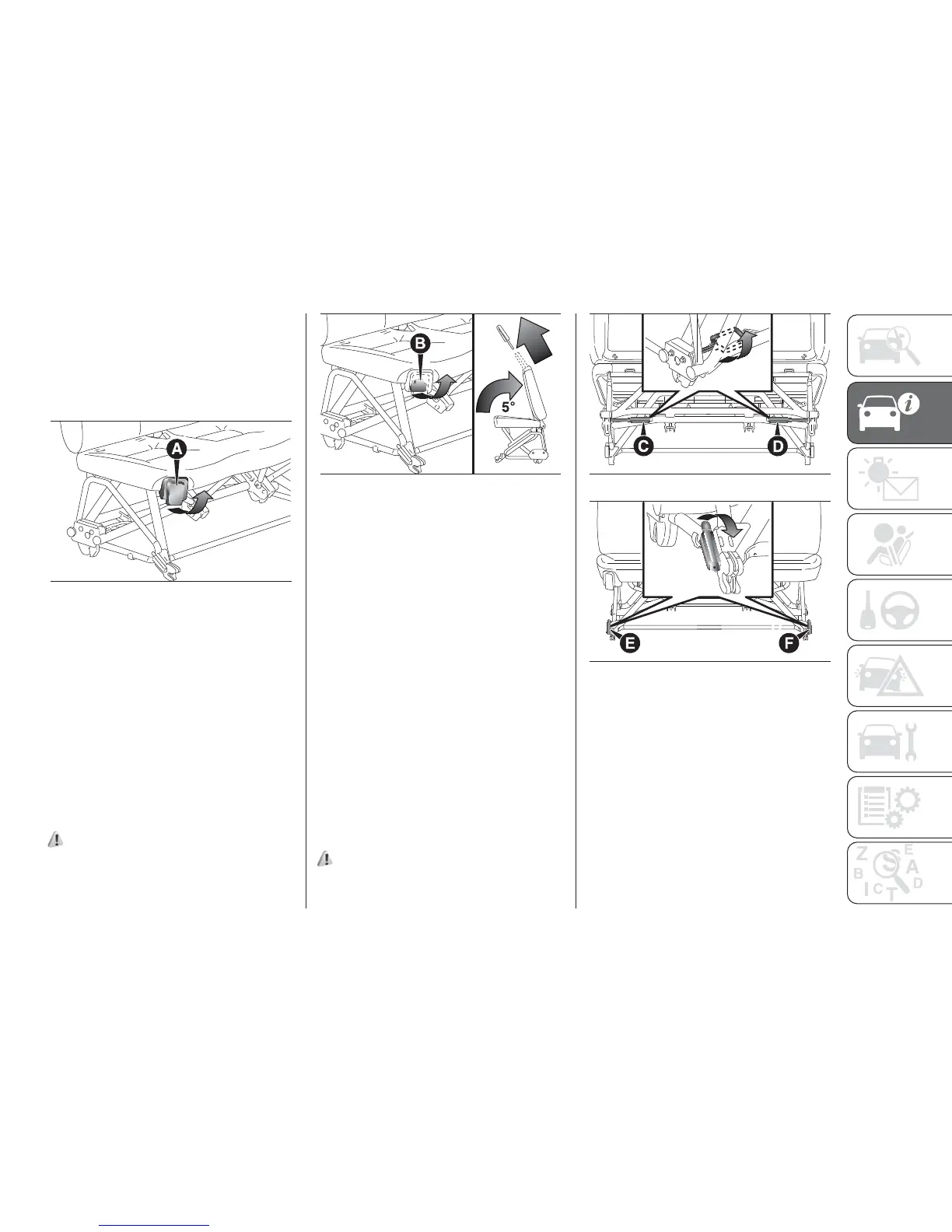

Lift lever A fig. 26 and tilt the backrest
forwards.
Stacked position
Proceed as follows:
– remove the head restraints from the
easy entry position;
– raise lever B fig. 27 (located under
lever A fig. 26) with your right hand;
– turn the backrest 5° towards the rear
area;
– fold the backrest forward with your
left hand.
14)
Removing the bench
IMPORTANT At least two people are
needed to remove the bench.
Proceed as follows to remove the
bench:
from stacked position, operate levers C
and D fig. 28, turning them forward
(as specified on the adhesive plate
located on the lower crossmember);
– lift seat base forward;
– bring the seat to an upright position;
– from the upright position, operate
levers E and F fig. 29 rotating them
upwards;
– raise the bench from the floor and
remove it.
15)
FLEX FLOOR REAR SEAT
To release the seat, proceed as follows:
❒ adjust the rear retaining lever A fig.
30 to facilitate the release of the
safety clip underneath (movement 1);
❒ pull the black knob B fig. 30
(movement 2);
26
F1A0035
27
F1A0036
28
F1A0037
29
F1A0038
21
