Rear direction indicator lights

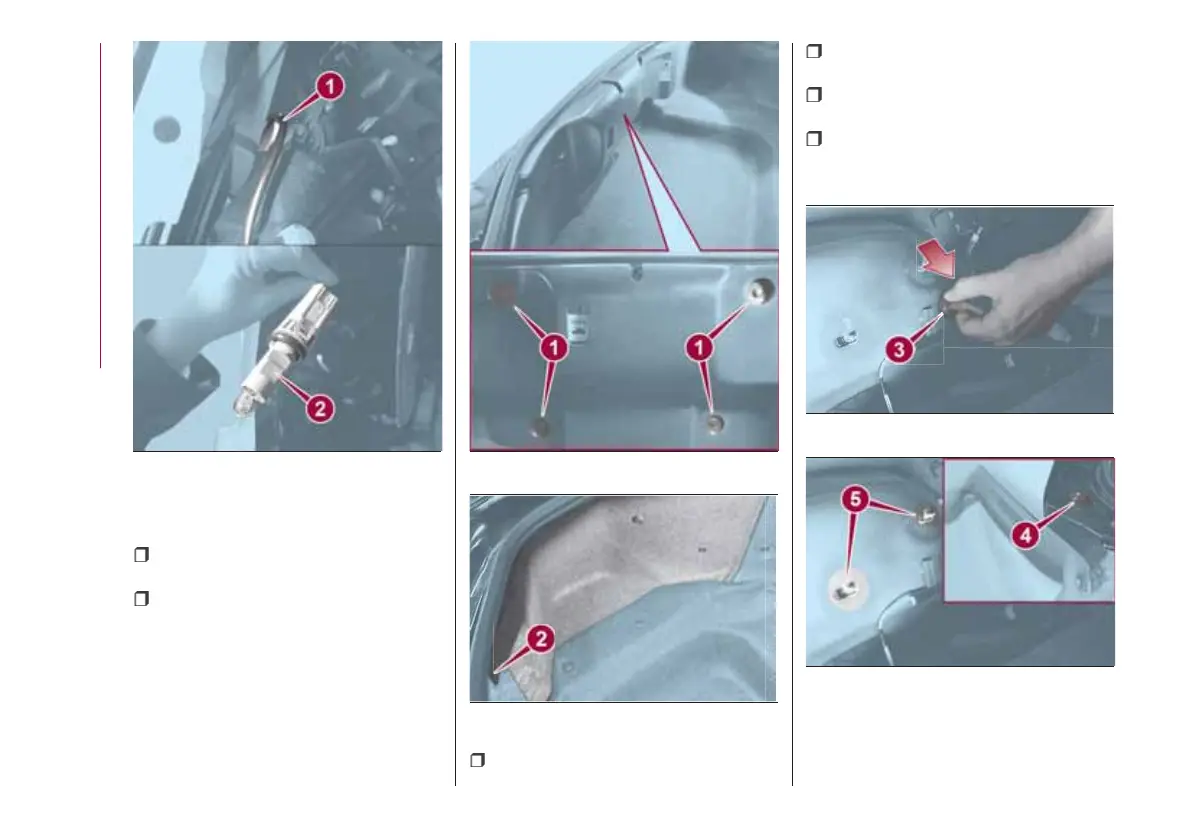

Proceed as follows:
remove the retainers 1 fig. 112 and
the boot lid end trim;
remove the retainers 2 fig. 113 and
then partially peel back the boot lid side
trim;
disconnect the connector 3 ;
remove the two nuts 5 fig. 115 and a
screw 4;
pull the unit rearward 6 fig. 116 to
remove it;
turn the socket and bulb assembly 7
fig. 117 counterclockwise and remove
it.
111
08070604-123-100
112
07031501-212-002
113
07031501-214-002
114
07031501-213-002
115
07031501-215-001
