FIBARO Smoke Sensor User Manual

Installation and Operation Guide
Smoke Sensor Page | 14
5. Before adding the Smoke Sensor to its final destination ensure that the
sensor is operating and that the Walk Test (see section 4.1.) has been
successfully completed. Then install the sensor’s cover in the desired
location.
6. If the sensor is to be VDC powered, connect the wires (Fig. 09).

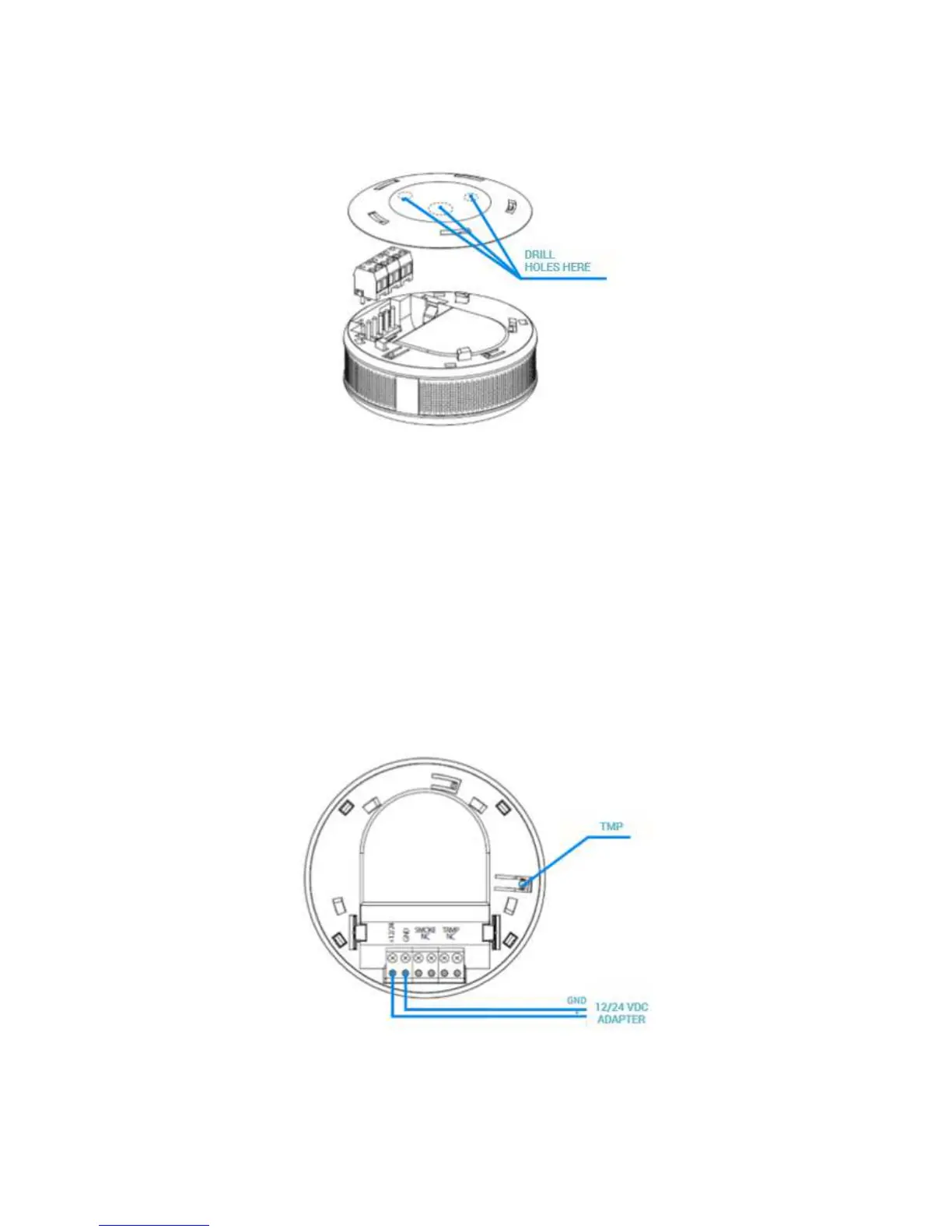

Figure 08 Constant current or alarm system hub
connecting terminals installation
Figure 09 DC Power adapter connection

FIBARO Smoke Sensor Specifications

General

Sensor Type	Photoelectric
Battery Type	CR123A
Wireless Technology	Z-Wave
Operating Temperature	0°C to 55°C
Dimensions	65 x 28 mm
Alarm Sound Level	85 dB
Radio Frequency	868.4 MHz (EU) / 908.4 MHz (US)
Humidity Range	0% to 93% (non-condensing)
Range	Up to 50 meters outdoors
Sensitivity	EN 14604:2005
Certifications	EN 14604
