FIBARO Smoke Sensor User Manual

Installation and Operation Guide
Smoke Sensor Page | 8
03. ADDING TO THE ACTIVE
SMARTHOME PLATFORM
The Smoke Sensor can be added to the Active SmartHome Portal by using
the B-button (fig. 03).
To do this, follow these simple instructions:
1. First, ensure that the Smoke Sensor is near to the Active SmartHome
Gateway, as the process can ONLY be carried out within the direct range of
the Active SmartHome Gateway.
2. Then open your web browser and access your Active SmartHome Portal.

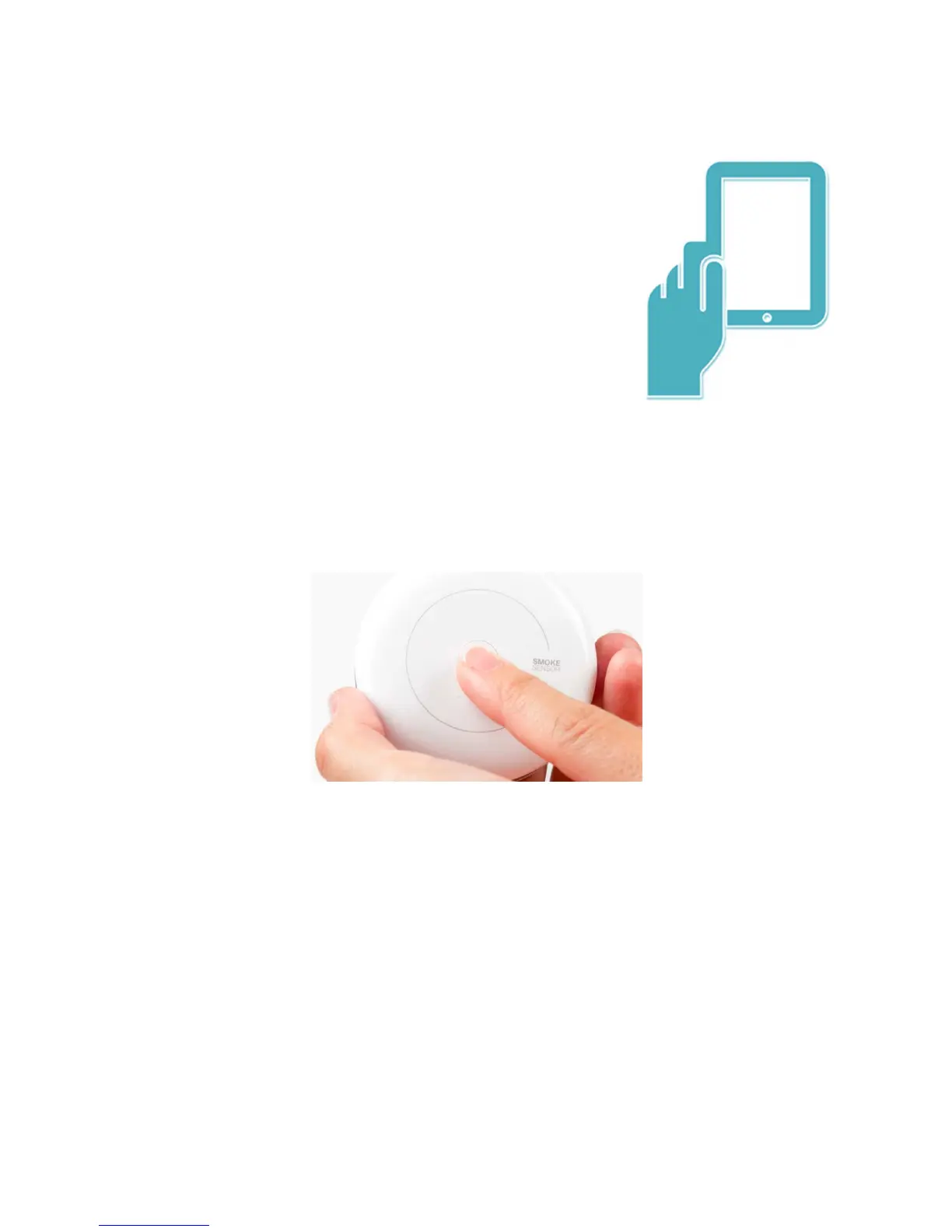

Figure 03 B-button

FIBARO Smoke Sensor Specifications

General

Sensor Type	Photoelectric
Battery Type	CR123A
Wireless Technology	Z-Wave
Operating Temperature	0°C to 55°C
Dimensions	65 x 28 mm
Alarm Sound Level	85 dB
Radio Frequency	868.4 MHz (EU) / 908.4 MHz (US)
Humidity Range	0% to 93% (non-condensing)
Range	Up to 50 meters outdoors
Sensitivity	EN 14604:2005
Certifications	EN 14604
