FIBARO Smoke Sensor User Manual

Installation and Operation Guide
Smoke Sensor Page | 9
3. There you can access “ Security ” and go to the “ Settings ” page.
4. Now press the “ Add Sensor ” button and choose the “ Smoke Sensor ”
option (Fig. 04).

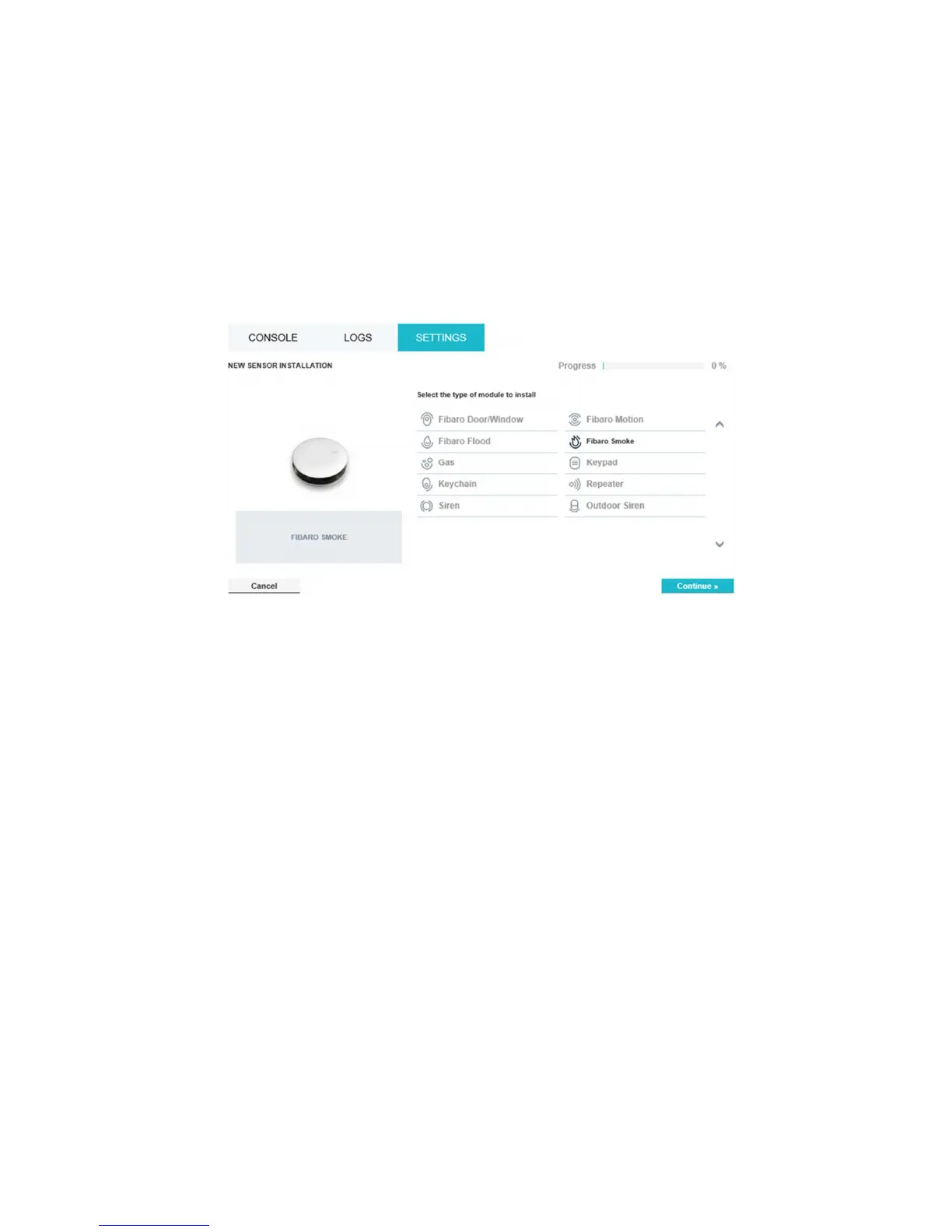

Figure 04 Smoke Sensor in the HomeSecurity - Settings page

FIBARO Smoke Sensor Specifications

General

Sensor Type	Photoelectric
Battery Type	CR123A
Wireless Technology	Z-Wave
Operating Temperature	0°C to 55°C
Dimensions	65 x 28 mm
Alarm Sound Level	85 dB
Radio Frequency	868.4 MHz (EU) / 908.4 MHz (US)
Humidity Range	0% to 93% (non-condensing)
Range	Up to 50 meters outdoors
Sensitivity	EN 14604:2005
Certifications	EN 14604
