FIBARO Smoke Sensor User Manual

Installation and Operation Guide
Smoke Sensor Page | 10
5. Customize the Smoke Sensor with a name of your choosing, so that you
can identify it more easily. Then, press “ Continue ” (Fig. 05).
6. Now take the Smoke Sensor. Twist the lid and make sure that the battery
is inserted and that there is no insulation strip between the contacts. If there
is no battery, insert a new CR17345 3 V battery, ensuring that the polarity is
correct. Once inserted, replace the lid (Fig. 06).

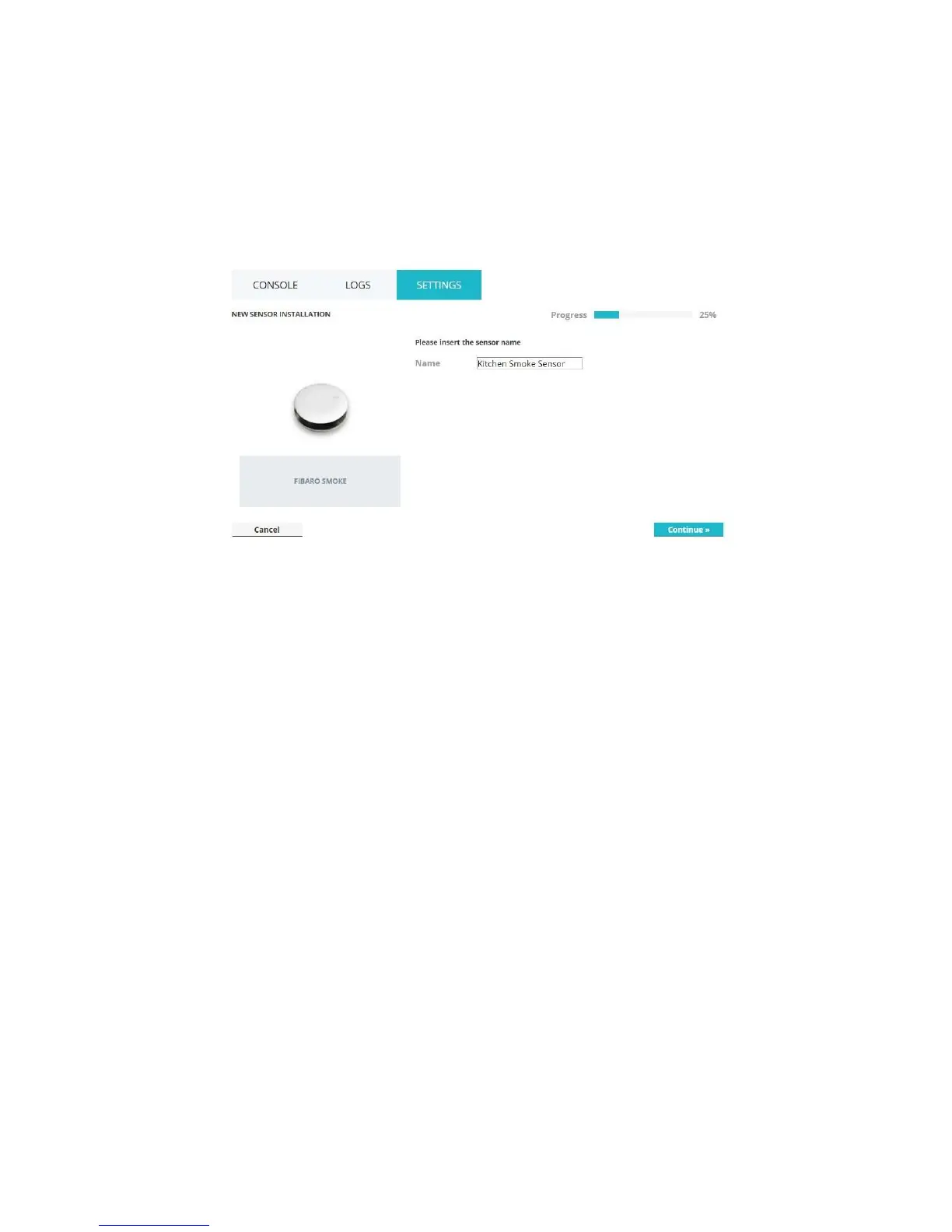

Figure 05 Inserting the name for Smoke

FIBARO Smoke Sensor Specifications

General

Sensor Type	Photoelectric
Battery Type	CR123A
Wireless Technology	Z-Wave
Operating Temperature	0°C to 55°C
Dimensions	65 x 28 mm
Alarm Sound Level	85 dB
Radio Frequency	868.4 MHz (EU) / 908.4 MHz (US)
Humidity Range	0% to 93% (non-condensing)
Range	Up to 50 meters outdoors
Sensitivity	EN 14604:2005
Certifications	EN 14604
